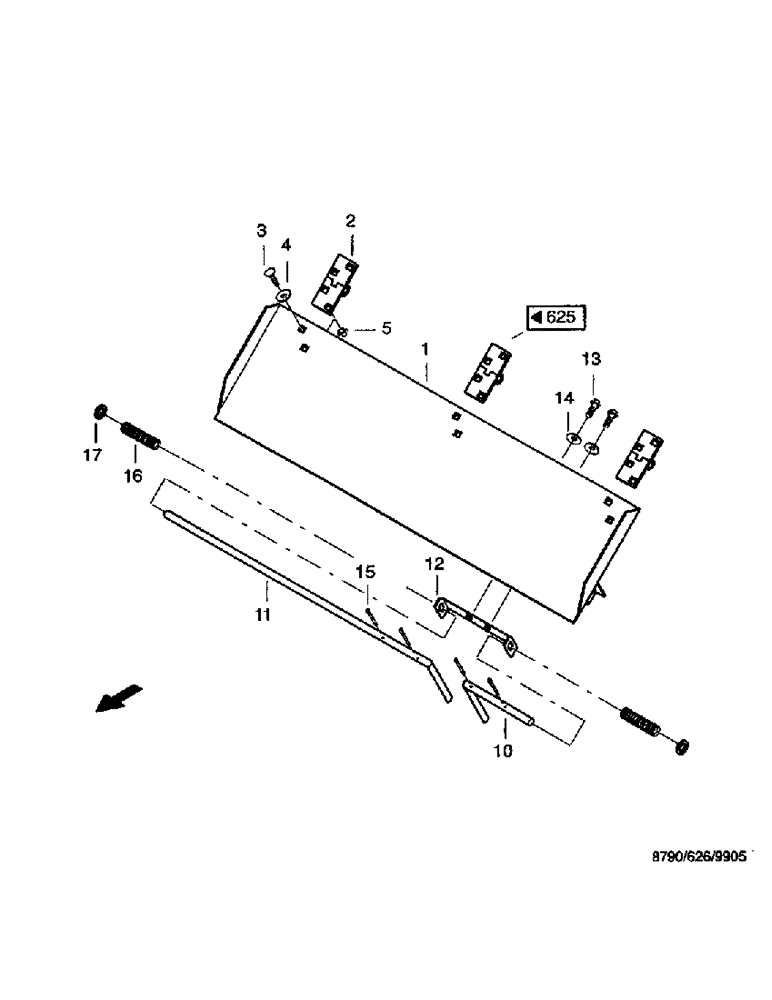

Запчасти Case IH 8790 (140) - SPOUT BLOWER, GRASS DUCT FLAP (70) - EJECTION

1

36275428

FLAP

door

1шт.

2

36275380

HINGE

3шт.

3

07753092

SCREW

flat-round-head, M8 x 20 DIN603 8.8

6шт.

4

06577028

SPECIAL WASHER

M8

6шт.

5

825-1408

NUT,M8, Cl 8

6шт.

10

36275397

HANDLE

plug l

1шт.

11

36275403

ELEC. TERMINAL PIN

plug r

1шт.

12

36275411

GUIDE

1шт.

13

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

14

06577028

SPECIAL WASHER

M8

2шт.

15

06402394

PIN, SPLIT (COTTER)

PIN, COTTER splint, 3.2 x 22 DIN94 ST

4шт.

16

06751741

COMPRESSION SPRING

pressure, A1.4 x 15 x 17.5

2шт.

17

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.
