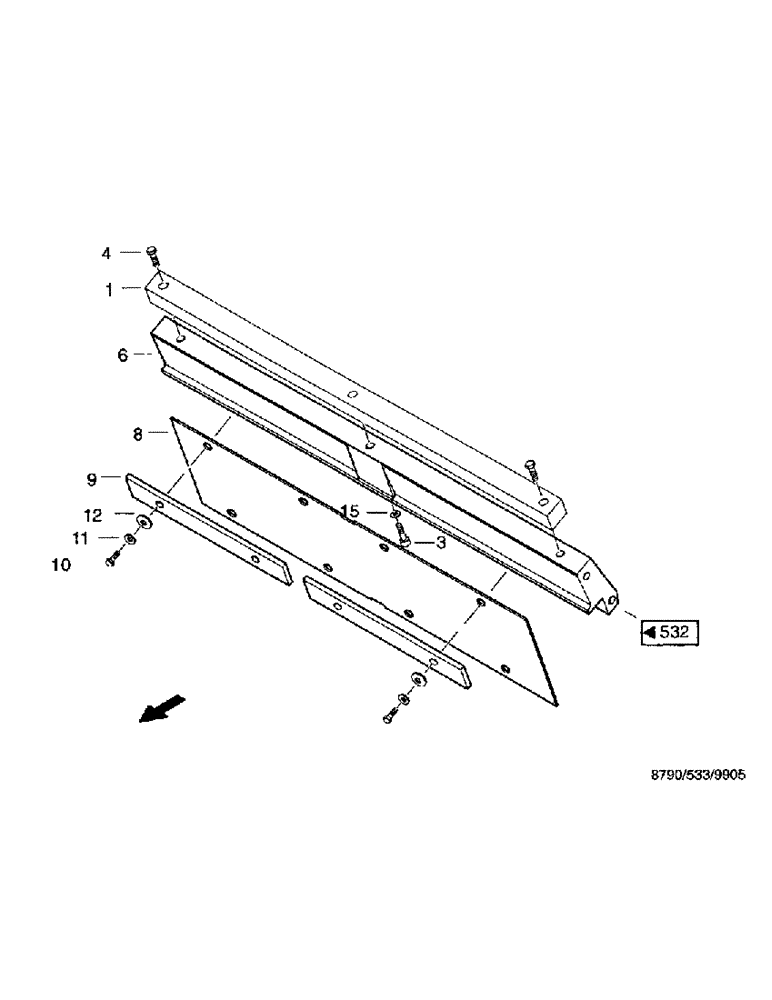

Запчасти Case IH 8790 (112) - CHOPPING UNIT, SHEAR BAR, MAIZE (64) - CHOPPING

1

03001517

SHEAR BAR

BAR shear, MAIS HDM

1шт.

3

864-16100

HEX SOC SCREW,M16 x 100mm, Cl 8.8

Cheese-head

1шт.

4

06042651

SCREW

BOLT precision, M16 x 55 DIN610 8.8

2шт.

6

36288071

CARRIER

SUPPORT counter, cutter

1шт.

8

36287376

ELEMENT, SPRING

PLATE

1шт.

9

36243863

FLANGE

flat

2шт.

10

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

4шт.

11

06562038

WASHER

13 DIN7349 ST

4шт.

12

06577077

PLATE, LOCKING

WASHER, M12

4шт.

15

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

1шт.
