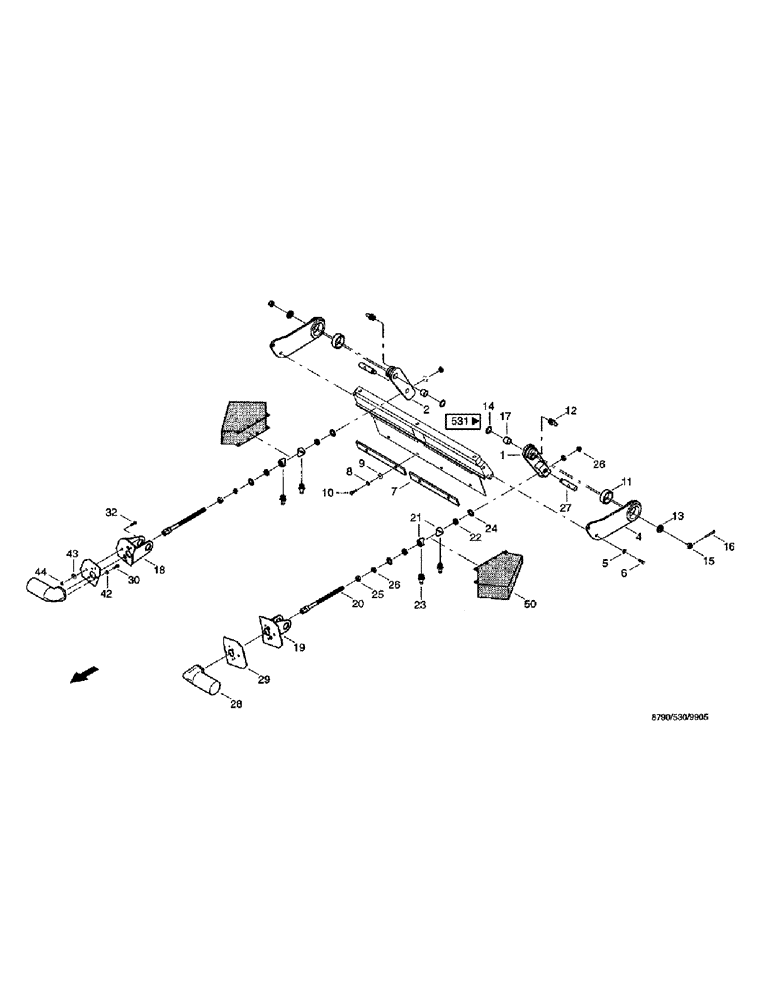

Запчасти Case IH 8790 (107) - CHOPPING UNIT, ADJUSTMENT, GRASS (64) - CHOPPING

1

36292992

LEVER

adjusting, l

1шт.

2

36293036

LEVER

adjusting, r

1шт.

4

36292976

GUIDE

2шт.

5

06562183

WASHER

17 DIN7349 ST

4шт.

6

06044276

SCREW

BOLT precision, M16 x 50 DIN610 8.8

4шт.

7

36243863

FLANGE

flat

2шт.

8

02853373

WASHER

13 x 40 x 6

4шт.

9

06577077

PLATE, LOCKING

WASHER, M12

4шт.

10

614-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8, Full Thd

ISO 4017

4шт.

11

36211647

BUSHING

sleeve

2шт.

12

03617056

LUBE NIPPLE

grease, AM8 x 1 DIN71412

2шт.

13

03904841

WASHER

22 x 60 x 8

2шт.

14

36208651

WASHER

2шт.

15

06225231

NUT

castllated, M20 DIN937 17H

2шт.

16

733-4040

COTTER PIN,M4 x 40

Split, DIN94 ST

2шт.

17

01308698

BUSHING

sleeve, 35/39 x 30 BREIT

2шт.

18

03117208

RETAINER

SUPPORT

1шт.

19

03117207

RETAINER

SUPPORT

1шт.

20

36260446

SPINDLE

threaded

2шт.

21

36265282

BLOCK

PLATE pressure

4шт.

22

97065003

BEARING

axial thrust ball, 51103 DIN711

4шт.

23

03617056

LUBE NIPPLE

grease, AM8 x 1 DIN71412

4шт.

24

04117139

WASHER

PLATE shroud

4шт.

25

825-11416

NUT,M16 x 1.5, Cl 8

ISO 8673

2шт.

26

97016255

NUT

hex, M16 x 1.5 DIN936 8

6шт.

27

04114344

LARGE PIN

PIN, LARGE BOLT threaded

2шт.

28

07077146

ELECTRIC MOTOR

reduction gear, 12V 40U/MIN

2шт.

29

03114330

SHIELD

PLATE 108 x 115

2шт.

30

06334445

CAPSCREW

BOLT hexagon head, M6 x 20/8.8-A3C ISO4017

6шт.

32

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

6шт.

42

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

43

97022010

RING, SNAP

RING SNAP RING locking, VSK8

6шт.

44

825-1408

NUT,M8, Cl 8

6шт.

50

03123568

PROTECTIVE COVER

2шт.
