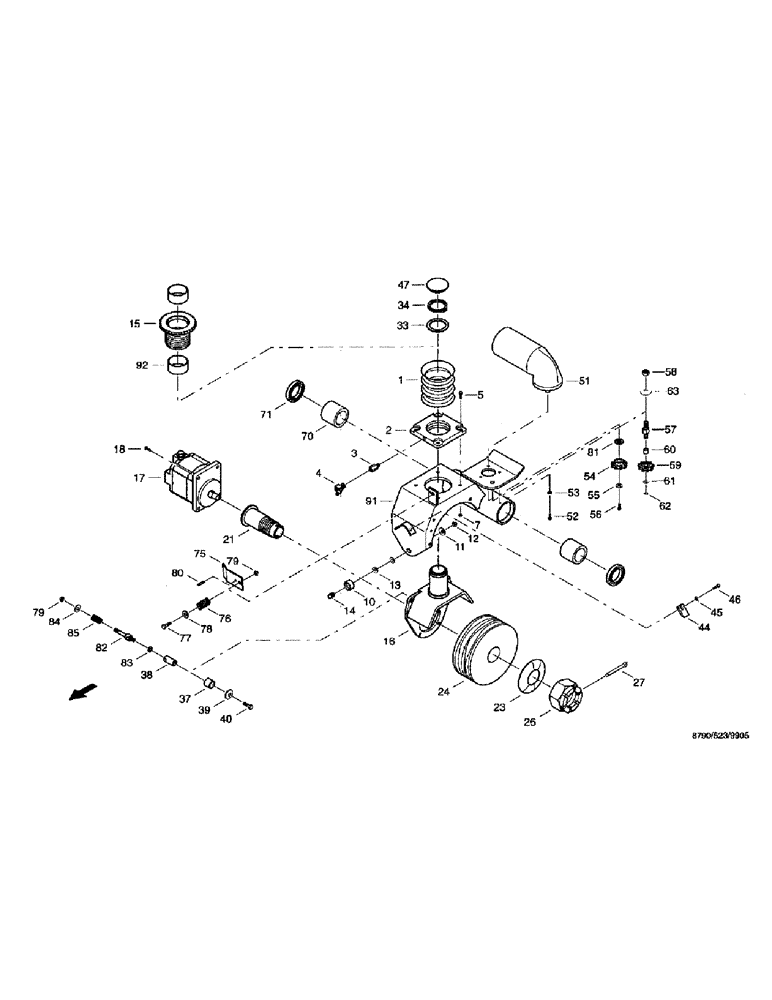

Запчасти Case IH 8790 (104) - CHOPPING UNIT, GRINDING STONE CARRIER (64) - CHOPPING

1

03240522

BELLOWS

75/108-100 mm SIMRIT

1шт.

2

02133580

BUSHING

threaded

2шт.

3

04020461

SHAFT

intermediate piece SW11 x 23

2шт.

4

03640746

LUBE NIPPLE,45º, M8 x 1

grease, BM8 x 1 DIN71412

2шт.

5

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

7

06116155

NUT,M8, Cl 8

8шт.

10

97063250

ROLLER

KRE 26 PP

4шт.

11

97022011

RING, SNAP

RING SNAP locking, VSK10 DIN

4шт.

12

06223141

NUT

hex, M10 x 1 DIN936 17H

4шт.

13

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

8шт.

14

98047440

NIPPLE, LUBE

NIPPLE grease, NIP A1

4шт.

15

03130898

BUSHING

sleeve adjustment

2шт.

16

03130349

GUIDE

2шт.

17

02059060

MOTOR, HYDRAULIC

compressed air, 8 M11C434BE-08-85

2шт.

18

97007348

SCREW

cheese-head, M8 x 20 DIN6912 8.8

8шт.

21

03133993

SLEEVE

116 mm

2шт.

23

97025025

BELLEVILLE SPRING

90 x 46 x 2.5 /CK67 DIN2093 MB-

2шт.

24

04133992

GRINDER

roll

2шт.

26

97017056

NUT

castllated, M42 x 3 DIN937 8

2шт.

27

06403073

PIN, SPLIT (COTTER)

PIN, COTTER splint, 6.3 x 63 DIN94 ST

2шт.

33

97020320

WASHER

thrust, S55 x 68 x 3 DIN988 FST

2шт.

34

800-1155

RETAINER,55mm ID

RING snap, 55 x 2 DIN471 FST

2шт.

37

04130359

SPACER,16.5 mm ID, 22 mm OD, 18 mm Length

TUBE, 22 mm

4шт.

38

04130358

ECCENTRIC

bushing, 36 mm

4шт.

39

97022010

RING, SNAP

RING SNAP locking, VSK8

4шт.

40

614-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8, Full Thd

4шт.

44

04130326

SCRAPER

4шт.

45

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

46

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

4шт.

47

97024031

VANEUM GAUGE

cover, 72 DIN442 UST

2шт.

51

07077146

ELECTRIC MOTOR

reduction gear, 12V 40U/MIN

2шт.

52

06334445

CAPSCREW

BOLT hexagon head, M6 x 20/8.8-A3C ISO4017

6шт.

53

06577036

SPECIAL WASHER

M6

6шт.

54

02826282

DRIVE SPROCKET

Z = 9

2шт.

55

36258017

WASHER

4.5 x 20/2

2шт.

56

614-4012

BOLT,Hex, M4 x 0.7 x 12mm, Cl 8.8, Full Thd

ISO 4017

2шт.

57

36263996

LARGE PIN

PIN, LARGE

2шт.

58

100038

NUT,M12 x 1.75, Cl 8

2шт.

59

02826387

DRIVE SPROCKET

Z = 9

2шт.

60

01308577

BUSHING

sleeve, 10/12 x 10 BREIT DIN1494 10W1

2шт.

61

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

62

800-1110

SNAP RING,M10, Ext

2шт.

63

06577060

WASHER

locking, B12

2шт.

70

98047400

HALF-BUSHING

HALF BUSH WLM 5055-50

4шт.

71

98047108

SCRAPER

AS50 x 60 x 7 x AU

4шт.

75

36267331

PAWL

2шт.

76

04028067

COMPRESSION SPRING

pressure, 2B 26 mm

2шт.

77

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

2шт.

78

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

79

06116155

NUT,M8, Cl 8

6шт.

80

838-5414

LOCK PIN,M4 x 14, Slotted

Roll, DIN 1481 FST

2шт.

81

06626938

SHIM

12 x 18 x 1 DIN988

4шт.

82

32528284

LARGE PIN

PIN, LARGE BOLT stay

4шт.

83

06455855

WASHER, LOCK

spring, A8 DIN128 FST

4шт.

84

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

8.4 DIN9021 140HV

4шт.

85

06753077

COMPRESSION SPRING

pressure, A3.6 x 25 x 5.5

4шт.

91

36272997

GUIDE

2шт.

92

98043587

BUSHING

SLEEVE wb, 800 D60 x D65 x 25

4шт.
