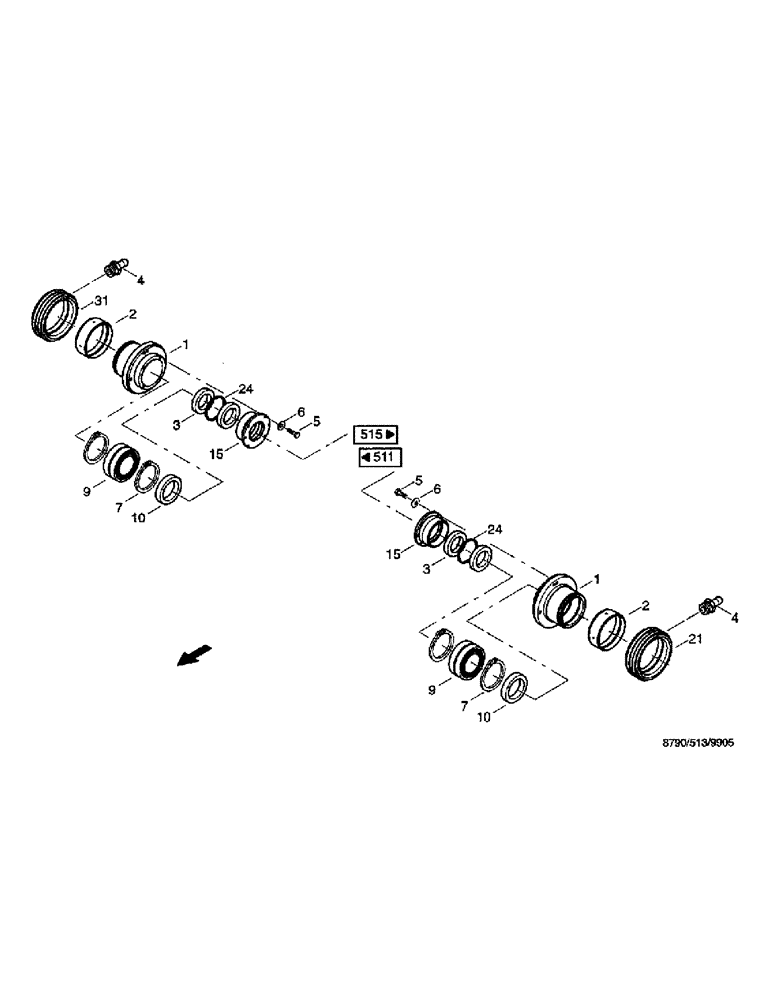

Запчасти Case IH 8790 (097) - CHOPPING UNIT, CHOPPING CYLINDER, BEARING (64) - CHOPPING

1

36240120

HOUSING, BEARING

4шт.

2

01328347

BEARING LINER

sleeve, 159.7/170 x 55

4шт.

3

97042233

SEAL

shaft, B2-85 x 115 x 13

8шт.

4

03617056

LUBE NIPPLE

grease, AM8 x 1 DIN71412

4шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

16шт.

6

06577028

SPECIAL WASHER

M8

16шт.

7

800-21130

SNAP RING,M130, Int

(4mm Thk)

8шт.

8

06655477

WASHER

thrust, S105 x 130 DIN988

4шт.

9

97063291

SPHERICAL BEARING

self-alinging roller, 22215CC DIN635 LE

4шт.

10

97042232

SEAL

shaft, B2-95 x 130 x 13

4шт.

15

36240217

FLANGE

bush

4шт.

21

36267895

HOUSING, BEARING

2шт.

24

97020330

WASHER

thrust, S95 x 115 x 3.5 DIN988 FST

4шт.

31

36296135

BEARING HOUSING,170 mm ID x 224 mm OD x 71 mm

housing, r

2шт.
