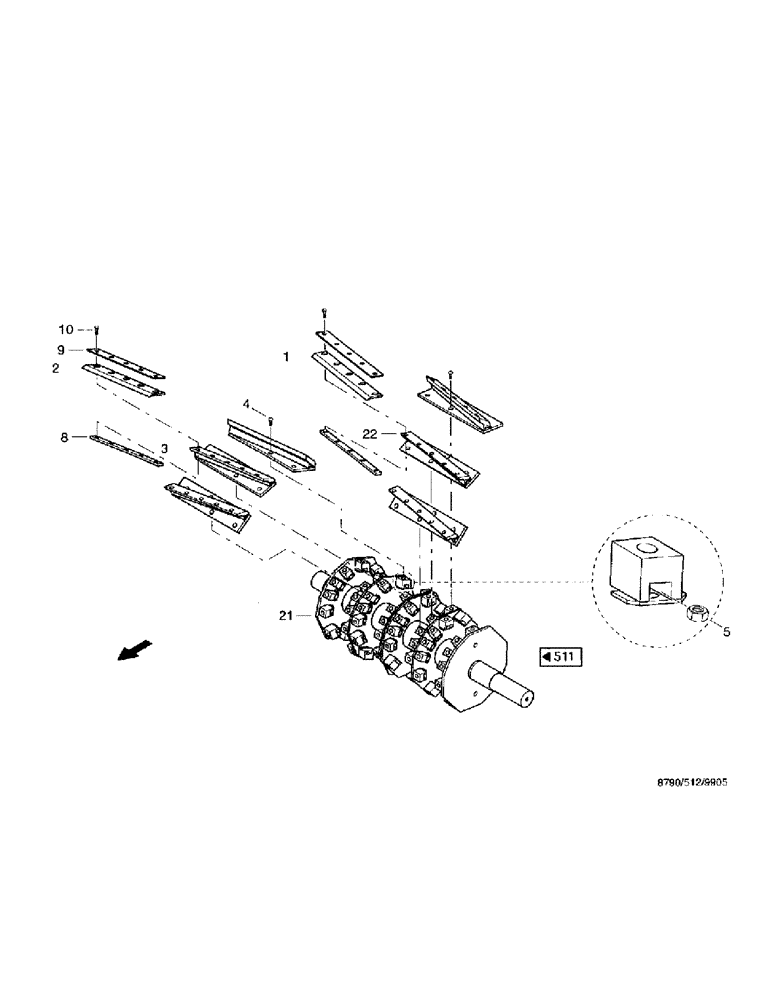

Запчасти Case IH 8790 (096) - CHOPPING UNIT, CHOPPING CYLINDER, GRASS (64) - CHOPPING

1

03006007

SET

cutter, l

6шт.

2

03006015

SET

cutter, r

6шт.

3

36240057

CLIP, KNIFE

cutter holder, r

12шт.

4

06281970

SCREW

cheese-head, M16 x 1.5 x 70 DIN912 10.9

96шт.

5

06214438

NUT

hex, M16 x 1.5 ISO8673 10

96шт.

8

36207490

STEM

bar with threaded holes

24шт.

9

36207505

PROTECTIVE COVER

PLATE

24шт.

10

06360037

CAPSCREW

BOLT hexagon head, M16 x 1.5 x 55 ISO8676 10.9

120шт.

21

36268984

DRUM

body, k

1шт.

22

36240024

CLIP, KNIFE

cutter holder, l

12шт.
