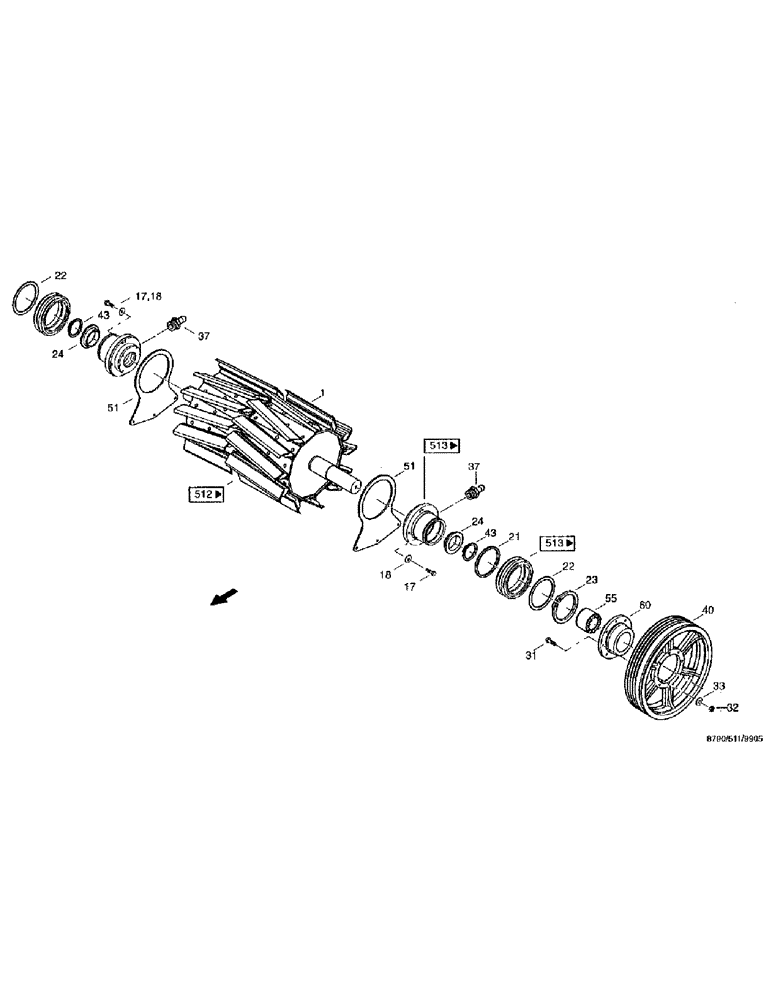

Запчасти Case IH 8790 (095) - CHOPPING UNIT, CHOPPING CYLINDER, GRASS, COMPLETE (64) - CHOPPING

1

36268814

DRUM

CYLINDER, chopping, k

1шт.

17

814-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 8.8

ISO 4014

8шт.

18

06577060

WASHER

locking, B12

8шт.

21

36240104

SPACER

RING

1шт.

22

97022258

SHIM

160 x 190 x 1.0 DIN988 ST

2шт.

23

06450385

CIRCLIP

RING snap, 160 x 4 DIN471 FST

1шт.

24

04085573

SPACER

RING

2шт.

31

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

8шт.

32

829-1410

NUT,M10 x 1.5, Cl 10.9

8шт.

33

06577003

SPECIAL WASHER

M10

8шт.

37

03617056

LUBE NIPPLE

grease, AM8 x 1 DIN71412

2шт.

40

36288022

GROOVED PULLEY

v-belt

1шт.

43

800-1175

SNAP RING,M75, Ext

DIN471 FST

2шт.

51

36269735

RING RACE

CUP bearing

2шт.

55

02875932

TENSIONER

element RLK400/70 x 110

1шт.

60

36270503

HUB

1шт.
