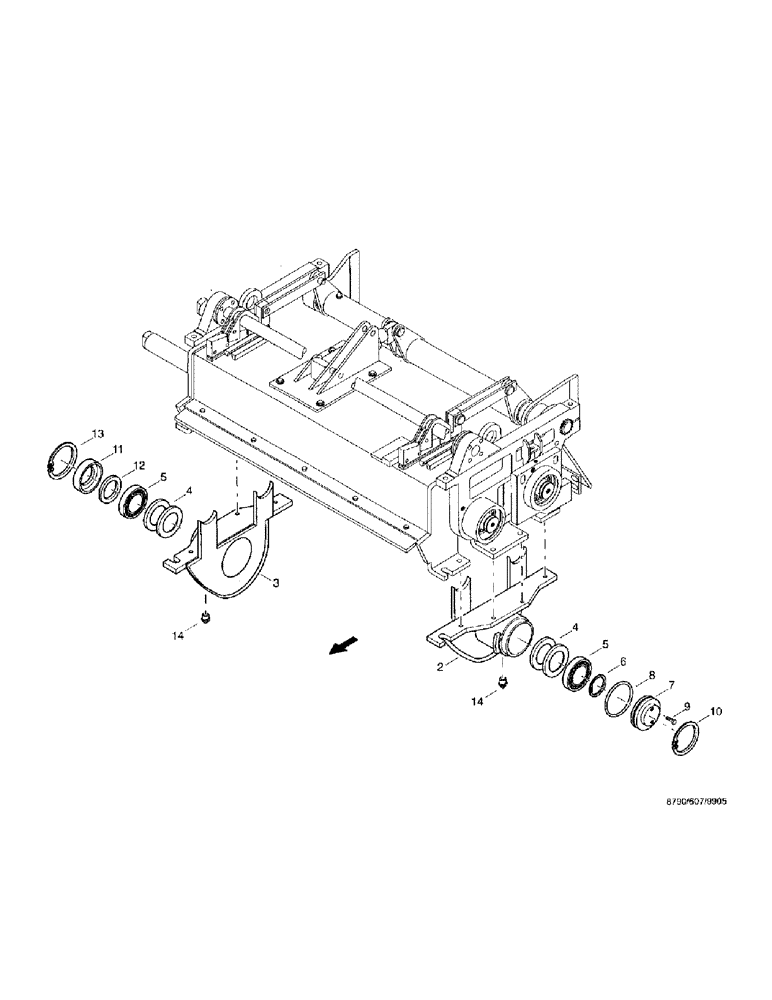

Запчасти Case IH 8790 (130) - CRACKER, ROLL BOTTOM (60) - PRODUCT FEEDING

2

36292654

CASE

pedestal l

1шт.

3

36292718

BEARING

pedestal r

1шт.

4

01169758

OIL SEAL

shaft, 55 x 80 x 8 (WE-STO. V7MV)

4шт.

5

97063296

SPHERICAL BEARING

self-alinging roller, 22209 CC/C3 W33 DIN635 LE SKF

2шт.

6

800-1145

SNAP RING,M45, Ext

x 1.75 DIN471 FST

1шт.

7

36288690

COVER

CAP

1шт.

8

01134836

O-RING

85.00 x 2.00 6365 NBR 70 SHORE

1шт.

9

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

10

06453291

CIRCLIP

RING snap, 85 x 3/FST DIN472

1шт.

11

36268203

RING

1шт.

12

01169629

OIL SEAL

shaft, 45 x 72 x 8

1шт.

13

800-2188

SNAP RING,M88, Int

RING snap, 88 x 3 DIN472 FST

1шт.

14

03617056

LUBE NIPPLE

grease, AM8 x 1 DIN71412

2шт.
