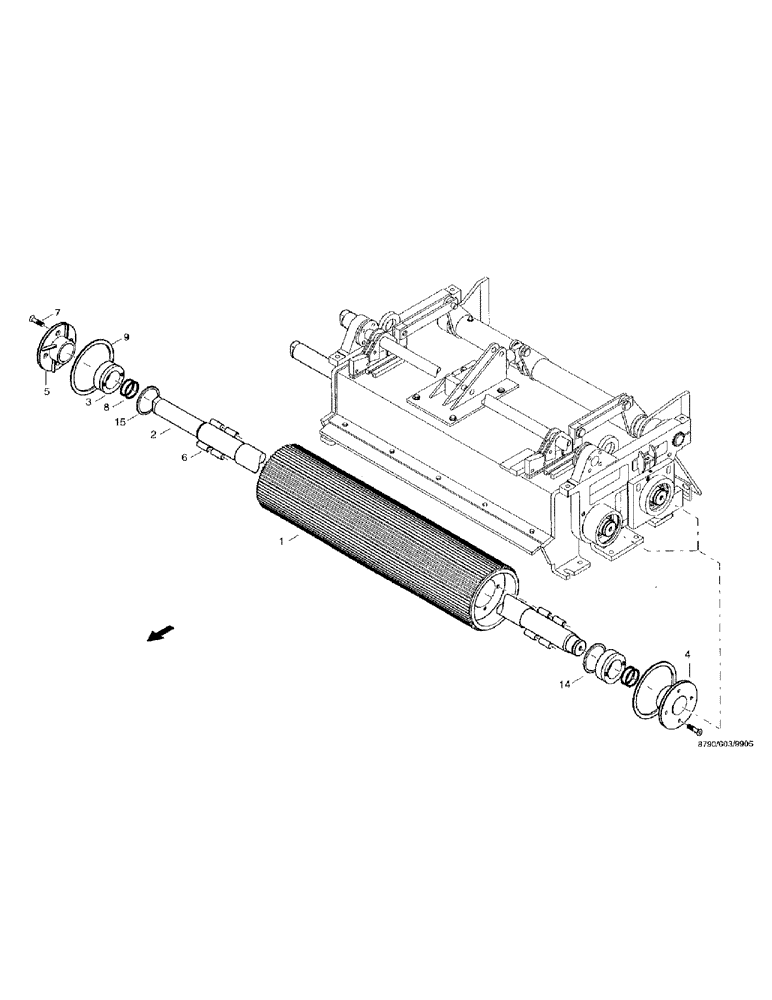

Запчасти Case IH 8790 (127) - CRACKER, CRACKER ROLL (60) - PRODUCT FEEDING

1

36290660

ROLL

body

2шт.

2

36292123

SHAFT

axle

2шт.

3

02875924

TENSIONER

element RLK400/55 x 85

4шт.

4

36291887

SEALING WASHER

SEAL WASHER RING l, o

1шт.

5

36291895

SEALING WASHER

SEAL WASHER RING r, o

1шт.

6

36290652

SLEEVE

16шт.

7

06078365

SCREW

countersunk, M8 x 50 DIN7991 8.8

16шт.

8

01133474

O-RING

54.50 x 3.55 DIN3771 N-FPM85

6шт.

9

01133482

O-RING

165.00 x 5.30 DIN3771 N-FPM85

4шт.

14

36291942

SEALING WASHER

SEAL WASHER RING l, u

1шт.

15

36291967

SEALING WASHER

SEAL WASHER RING r, u

1шт.
