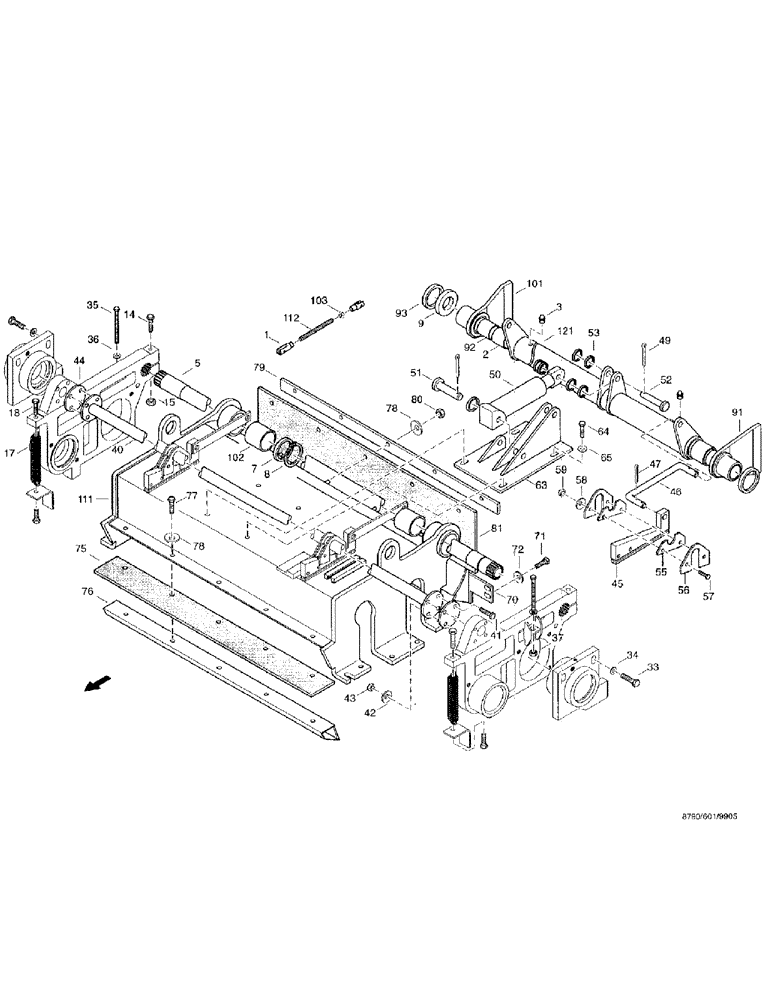

Запчасти Case IH 8790 (123) - CRACKER, HOUSING (60) - PRODUCT FEEDING

1

06174533

FORK

universal joint, B16 x 32

2шт.

2

01308753

BUSHING

SLEEVE bearing, 40/50 x 60

2шт.

3

03617056

LUBE NIPPLE

grease, AM8 x 1 DIN71412

2шт.

5

36270005

SHAFT

torque

1шт.

7

36269374

PLATE, LOCKING

WASHER thrust, 40.5

1шт.

8

800-1140

SNAP RING,M40, Ext

x 1.75 DIN471 FST

1шт.

9

36293663

WASHER

WASHER

2шт.

14

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

2шт.

15

337475

NUT,M12, Cl 10

2шт.

17

06707135

TENSION SPRING

C9 x 10 x 9D

2шт.

18

614-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8, Full Thd

4шт.

33

06044766

SCREW

BOLT precision, M12 x 40 DIN610 8.8

6шт.

34

06562038

WASHER

13 DIN7349 ST

6шт.

35

06345464

CAPSCREW

BOLT hexagon head, M10 x 110 ISO4017 8.8

2шт.

36

06562087

WASHER

10.5 DIN7349 ST

4шт.

37

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

40

36293688

BAR

ROD torque

1шт.

41

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

8шт.

42

06577003

SPECIAL WASHER

M10

8шт.

43

829-1410

NUT,M10 x 1.5, Cl 10.9

8шт.

44

36273998

FASTENER

SHIM

3шт.

45

36293751

KEY

2шт.

46

36293815

SHIN

CONNECTION

1шт.

47

733-4032

COTTER PIN,M4 x 32

6шт.

50

03124808

CYLINDER ASSY.

32/20 x 75

1шт.

51

07640525

LARGE PIN

PIN, LARGE B16H11 x 70 x 64 DIN1444 ST

1шт.

52

728-1655

CLEVIS PIN,M16 x 55

B16H11 x 55 x 49 DIN1444 ST

1шт.

53

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

7шт.

55

36293880

BEARING

counter

2шт.

56

36270632

ANCHOR

attaching

4шт.

57

614-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8, Full Thd

4шт.

58

06577028

SPECIAL WASHER

M8

4шт.

59

43362

NUT,M8 x 1.25, Cl 10

4шт.

63

36293928

SUPPORT

hydraulic lift

1шт.

64

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

65

06562087

WASHER

10.5 DIN7349 ST

4шт.

70

36278752

STRIPPER

scraper

1шт.

71

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

72

06577003

SPECIAL WASHER

M10

4шт.

75

36274162

SEALING STRIP

1шт.

76

36293944

DEFLECTOR

profile

1шт.

77

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

5шт.

78

06577028

SPECIAL WASHER

M8

10шт.

79

36242645

BLOCK

SHIM

1шт.

80

825-1408

NUT,M8, Cl 8

5шт.

81

01402985

SEAL

SEAL, h TREBATEN200-3

1шт.

91

36269671

STRAW BEATER

COUPLING, r

1шт.

92

01308833

BUSHING

SLEEVE, 40/44 x 50

2шт.

93

36269993

PLATE, LOCKING

WASHER thrust

1шт.

101

36269696

STRAW BEATER

coupling l

1шт.

102

01308866

BUSHING

SLEEVE, 55/60 x 40

2шт.

103

97016095

NUT

hex, M16 DIN936 8

1шт.

111

36269823

LEVER

HOUSING

1шт.

112

36293856

ROD,THREADED

THREADED ROD piece

1шт.

121

36293630

LEVER

regulating

1шт.
