Запчасти Case IH 8790 (119) - ROLL SYSTEM, TOP (60) - PRODUCT FEEDING

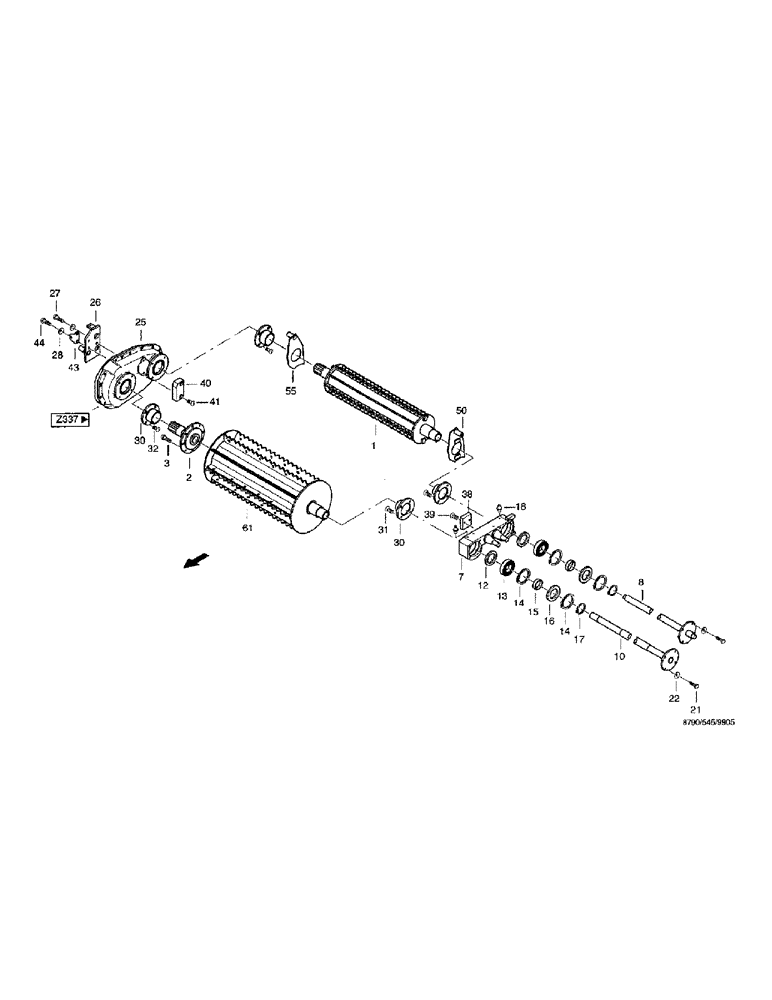

Схема запчастей Case IH 8790 - (119) - ROLL SYSTEM, TOP (60) - PRODUCT FEEDING
21
61
25
39
41
8
28
30
3
43
55
32
50
10
14
2
44
31
22
7
12
30
13
27
1
17
38
16
18
15
14
26
40

Артикул

Название

Примечание

Количество

1

36285897

ROLL

pressing, anti-magnet.

2шт.

2

36262296

ROLLER BEARING,42 mm ID x 191 mm OD x 184 mm

bearing, r

2шт.

3

06343495

CAPSCREW

BOLT hexagon head, M10 x 20 ISO4017 x 5CRNI1810

16шт.

7

36286334

FASTENER

conrod k

2шт.

8

36286350

SHAFT

axle pw

2шт.

10

36242821

AXLE

Vpw

2шт.

12

01121157

SEAL

shaft, A65 x 90 x 10 DIN3760 NBR

4шт.

13

03660862

BEARING

self-alinging ball, 2211 DIN630

4шт.

14

800-21100

SNAP RING,Int, M100 x 3

8шт.

15

36212760

BUSHING

SLEEVE

4шт.

16

01122326

SEAL

Shaft seal AS65 x 100 x 10 DIN3760 NBR

4шт.

17

800-1155

RETAINER,55mm ID

RING snap, 55 x 2 DIN471 FST

4шт.

18

03617056

LUBE NIPPLE

grease, AM8 x 1 DIN71412

4шт.

21

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

16шт.

22

06577028

SPECIAL WASHER

M8

16шт.

25

02819933

TRANSMISSION

gearbox, o

2шт.

26

36280273

COUPLING

spring suspension

2шт.

27

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

28

06577011

PLATE, LOCKING

WASHER, M12

6шт.

30

36263264

PROTECTOR

wrap prevention

8шт.

31

97010296

SCREW

countersunk, M8 x 25 DIN7991 8.8

16шт.

32

97010294

SCREW

countersunk, M8 x 16 DIN7991 8.8

16шт.

38

01331004

SLIDE

wear strip, l 80 x 70 x 22

2шт.

39

06078285

SCREW

countersunk, M10 x 40 DIN7991 8.8

4шт.

40

01331012

SLIDE

wear strip, r 120 x 60 x 34

2шт.

41

06078285

SCREW

countersunk, M10 x 40 DIN7991 8.8

4шт.

43

36274158

RETAINER

SUPPORT

2шт.

44

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

4шт.

50

36275700

PLATE ASSY.

PLATE covering, l

2шт.

55

36275741

PLATE ASSY.

PLATE covering, r

2шт.

61

36296096

ROLL

upper intake anti-magnet

2шт.

Выбрано товаров: 31
