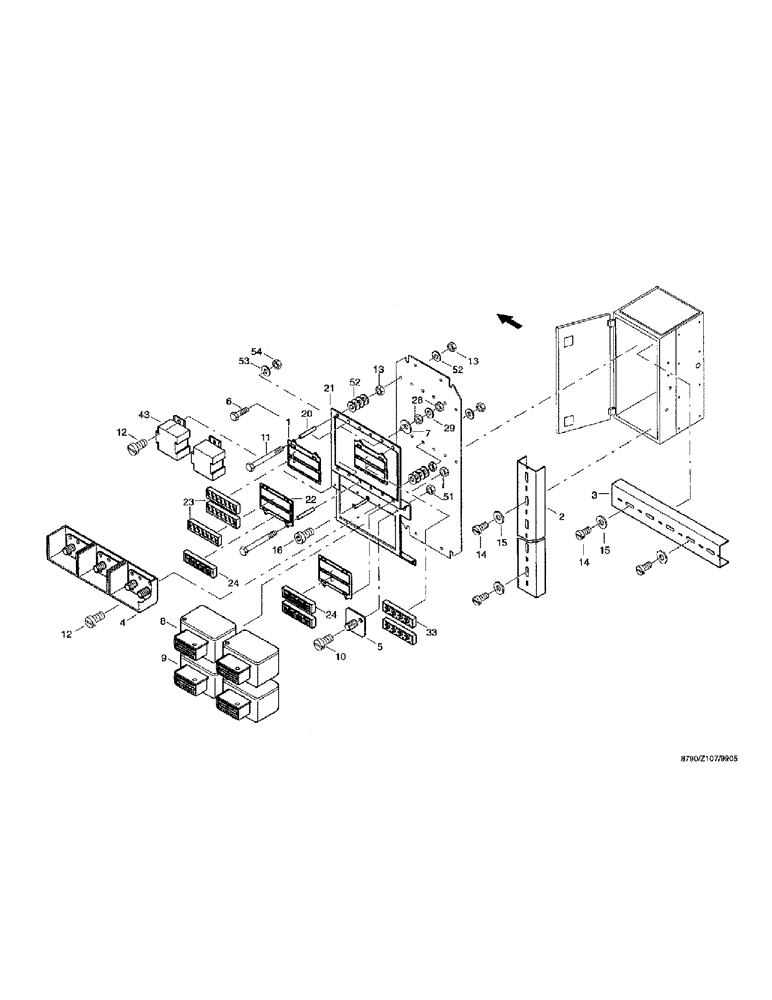

Запчасти Case IH 8790 (254) - CENTRAL ELECTRICAL SYSTEM, MOUNTING PLATE (55) - ELECTRICAL SYSTEMS

1

03268888

FOOT

attaching

16шт.

2

03268814

LOOM

CONDUIT cable, r

1шт.

3

03268822

LOOM

CONDUIT cable, o

1шт.

4

03268830

CLAMP

strip for bolt, 2

12шт.

5

07070381

LARGE PIN

PIN, LARGE clamping strip for bolt, M8

4шт.

6

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

16шт.

7

06577036

SPECIAL WASHER

M6

16шт.

8

07080840

CALCULATOR

job computer 1

1шт.

9

07076475

CALCULATOR

job computer 2

1шт.

10

06001860

SCREW

Cheese-head, M4 x 12 DIN84 4.8

8шт.

11

03268525

CAPSCREW

BOLT hexagon head, M6 x 90 ISO4017 8.8

8шт.

12

06002925

SCREW

cheese-head, M5 x 14 DIN84 4.8

16шт.

13

825-1406

NUT,M6, Cl 8

16шт.

14

06007987

SCREW

cheese-head, M5 x 8 DIN84 4.8

9шт.

15

895-25005

WASHER,M5 x 15 x 1.6

DIN9021 140HV

4шт.

16

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

fillister head, M6 x 16-H DIN7985 4.8

1шт.

20

36260374

SLEEVE

spacer

8шт.

21

36260278

HOLDER

fuse

4шт.

22

03268896

FOOT

attaching

16шт.

23

03268902

PEDESTAL

SOCKET

12шт.

24

03268910

SUPPORT

HOLDER fuse

12шт.

28

825-1406

NUT,M6, Cl 8

32шт.

29

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

16шт.

33

03268927

PEDESTAL

SOCKET

8шт.

43

07074914

SOCKET

8шт.

51

825-1404

NUT,M4, Cl 8

8шт.

52

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

40шт.

53

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

4шт.

54

825-1405

NUT,M5, Cl 8

16шт.
