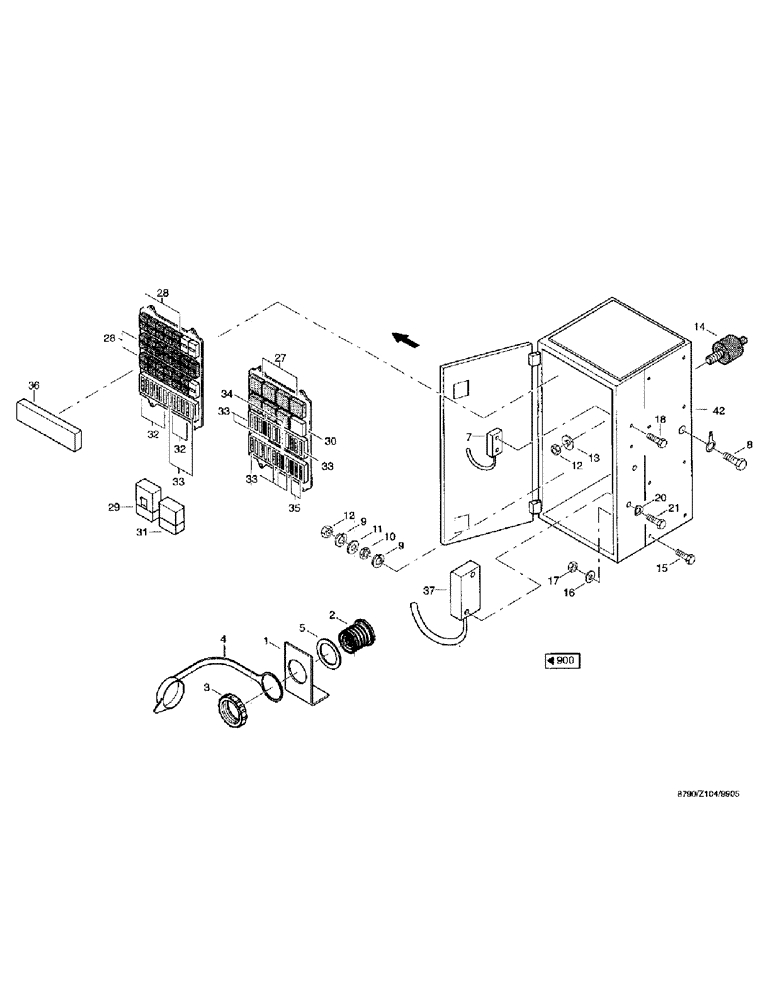

Запчасти Case IH 8790 (248) - CENTRAL ELECTRICAL SYSTEM, SWITCH BOX (55) - ELECTRICAL SYSTEMS

1

36298932

SHEET

PLATE socket

1шт.

2

03268847

SOCKET

base housing 14

1шт.

3

03268855

RING

retaining

1шт.

4

03268863

RING

retaining

1шт.

5

03268871

DISC

spacer washer

1шт.

7

07080857

CONTROL

electronic unit

1шт.

8

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

9

892-11010

LOCK WASHER,M10

2шт.

10

829-4410

THIN NUT,Thin, M10 x 1.5, Cl 05

1шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

5шт.

13

006576076

WASHER

locking, VSF-B10

4шт.

14

07077058

BUMPER

buffer, MEGI D40/28/M10

4шт.

15

614-5012

BOLT,Hex, M5 x 0.8 x 12mm, Cl 8.8, Full Thd

14шт.

16

895-25005

WASHER,M5 x 15 x 1.6

DIN9021 140HV

14шт.

17

825-1405

NUT,M5, Cl 8

14шт.

18

614-6014

BOLT,Hex, M6 x 1 x 14mm, Cl 8.8, Full Thd

BOLT hexagon head, M6 x 14 ISO4017 8.8

2шт.

20

06501380

CUP WASHER

wave, B8 DIN137 FST

2шт.

21

614-4012

BOLT,Hex, M4 x 0.7 x 12mm, Cl 8.8, Full Thd

ISO 4017

2шт.

27

07074850

RELAY

7шт.

28

07077033

RELAY

18шт.

29

07078026

INDICATOR LIGHT

flasher relay, 4DW

1шт.

30

07075802

DIODE

matrix

1шт.

31

07075796

DIODE

matrix

1шт.

32

07070420

FUSE

locking, 7.5A

16шт.

33

07070437

FUSE

locking, 15A

15шт.

34

07072213

FUSE

locking, 20A

2шт.

35

07072205

FUSE

locking, 10A

1шт.

36

07089703

COVER ASSY

CAP

7шт.

37

98043529

SHOCK ABSORBER

equalizer

1шт.

42

36415641

BOX

switch, FH8790

1шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.
