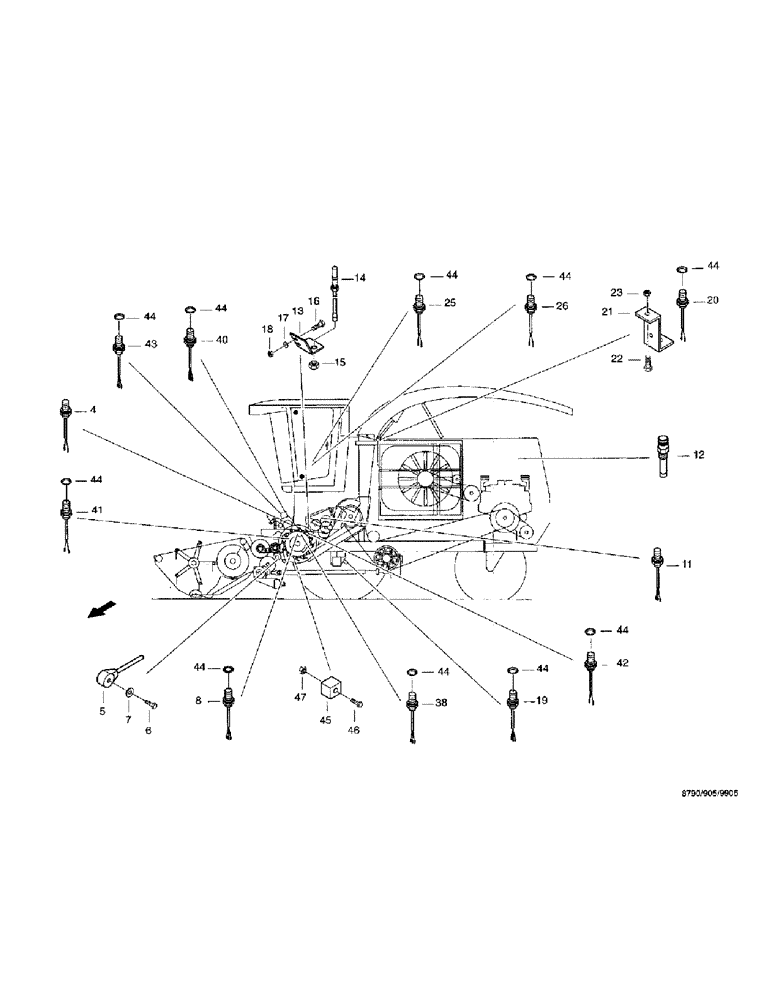

Запчасти Case IH 8790 (216) - SENSOR INSTALLATION (55) - ELECTRICAL SYSTEMS

4

07080865

SENSOR

SENDER, M12 x 1

1шт.

5

07074713

SENSOR

vibration

1шт.

6

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

7

06562062

WASHER

8.4 DIN7349 ST

1шт.

8

07077170

SENSOR

SENDER

1шт.

11

07074762

SENSOR

SENDER, IA8-30GM-13-Y4376

1шт.

12

07076635

TEMPERATURE SENDER

pick-up

1шт.

13

36271906

ANGLE

1шт.

14

07075683

SENSOR

position

1шт.

15

03655631

NUT,Thin, M24 x 1.5

hex, M24 x 1.5 DIN80705 14H

2шт.

16

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

17

06577028

SPECIAL WASHER

M8

2шт.

18

825-1408

NUT,M8, Cl 8

2шт.

19

07077170

SENSOR

SENDER

1шт.

20

07075642

SENSOR

SENDER, NBB5-18GM50-E0-V1

1шт.

21

36236358

RETAINER

SUPPORT

1шт.

22

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

23

825-1410

NUT,M10, Cl 8

1шт.

25

07075642

SENSOR

SENDER, NBB5-18GM50-E0-V1

1шт.

26

07075642

SENSOR

SENDER, NBB5-18GM50-E0-V1

1шт.

38

07077170

SENSOR

SENDER

1шт.

40

07077170

SENSOR

SENDER

1шт.

41

07075642

SENSOR

SENDER, NBB5-18GM50-E0-V1

1шт.

42

07075642

SENSOR

SENDER, NBB5-18GM50-E0-V1

1шт.

43

07077170

SENSOR

SENDER

1шт.

44

97020368

SPRING WASHER

separrated lock, A19 DIN6798 FST

20шт.

45

07077820

AMPLIFIER

300-600HZ

1шт.

46

614-6060

BOLT,Hex, M6 x 1 x 60mm, Cl 8.8, Full Thd

1шт.

47

825-1406

NUT,M6, Cl 8

1шт.
