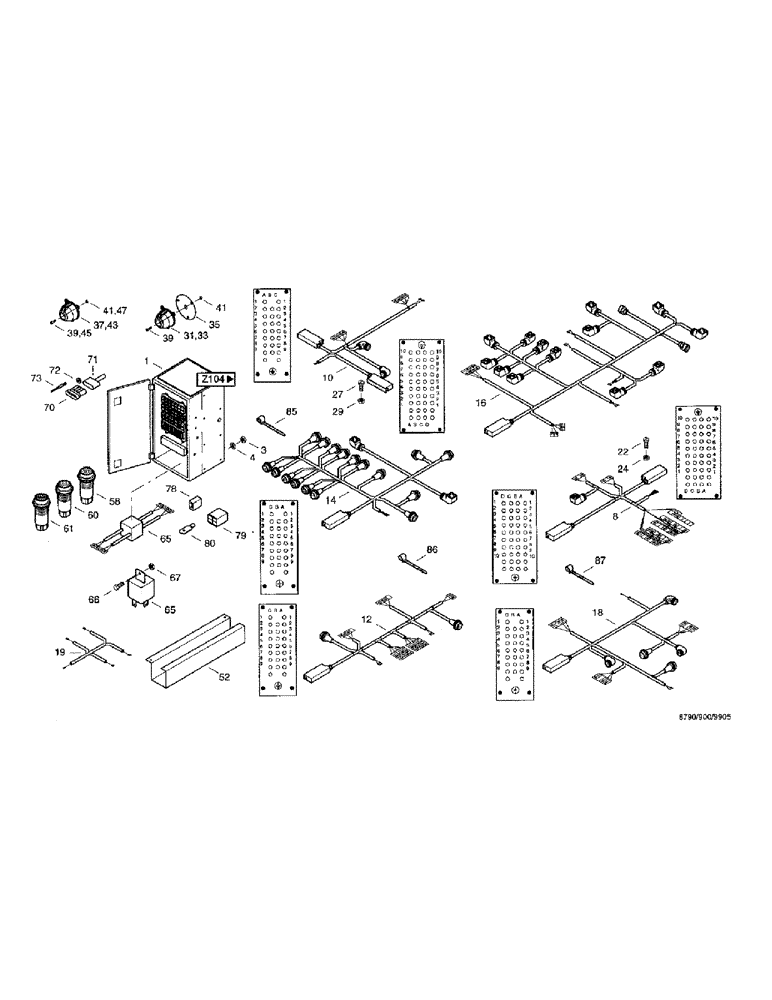

Запчасти Case IH 8790 (214) - PROCESS AUTOMATION (55) - ELECTRICAL SYSTEMS

1

07080510

CONTROL PANEL

central electrical system

1шт.

3

825-1410

NUT,M10, Cl 8

4шт.

4

06577003

SPECIAL WASHER

M10

4шт.

8

07080527

HARNESS

cable set

1шт.

10

07077990

PIPE SET

cable

1шт.

12

07077900

PIPE SET

cable

1шт.

14

07076065

PIPE SET

cable

1шт.

16

07080535

HARNESS

cable set

1шт.

18

07077917

PIPE SET

cable

1шт.

19

07077982

PIPE SET

cable

1шт.

22

06004002

SCREW

cheese-head, AM5 x 16 DIN84 4.8

8шт.

24

825-1405

NUT,M5, Cl 8

8шт.

27

06003106

SCREW

cheese-head, M4 x 18 DIN84 4.8

4шт.

29

825-1404

NUT,M4, Cl 8

4шт.

31

07066088

POWER SOCKET

7 D12N/7P ISO1724

1шт.

33

07080375

SOCKET/RECEPTACLE

8820.5/4 D12S/7P FEP ISO373

1шт.

35

01150965

PLUG

rubber cap

2шт.

37

07077113

SOCKET/RECEPTACLE

3

1шт.

39

06003210

SCREW

cheese-head, AM5 x 35 DIN84 4.8

9шт.

41

825-1405

NUT,M5, Cl 8

9шт.

43

07069267

SOCKET/RECEPTACLE

4

1шт.

45

06003805

SCREW,Hex Skt, M4 x 25mm, Cl 4.8

cheese-head, M4 x 25 DIN84 4.8

2шт.

47

825-1404

NUT,M4, Cl 8

2шт.

52

36259147

PLATE

cable protection

1шт.

58

04120768

PRESSURE SWITCH

pressure switch

1шт.

60

04120442

PRESSURE SWITCH

pressure switch

4шт.

61

07080898

SWITCH

push button, stop 145100AB

2шт.

65

07080422

DIODE

matrix

1шт.

66

614-6060

BOLT,Hex, M6 x 1 x 60mm, Cl 8.8, Full Thd

1шт.

67

825-1406

NUT,M6, Cl 8

1шт.

70

07077523

DOOR COVER

plug housing, 4

1шт.

71

07080920

PLASTIC PLUG

rubber cap

1шт.

72

07080568

PLUG

single conductor sealing, 1

4шт.

73

07077548

CONTACT

pin-type, 0.5-1 mm 2

4шт.

78

07077580

CASE

flat plug housing, 2

2шт.

79

98043809

CASE

flat plug housing, 4

2шт.

80

07066594

SPADE TERMINAL

flat plug, 6.3-0.8/RZ/0,5-1

10шт.

85

07068200

CABLE

band sw, 188 x 4.8 TSL-190-S

100шт.

86

07070992

COLLAR

band, 288 x 4.8 TSL-290-S

100шт.

87

01309600

CABLE TIE

CABLE STRAP attaching strap sw. TY41M

6шт.
