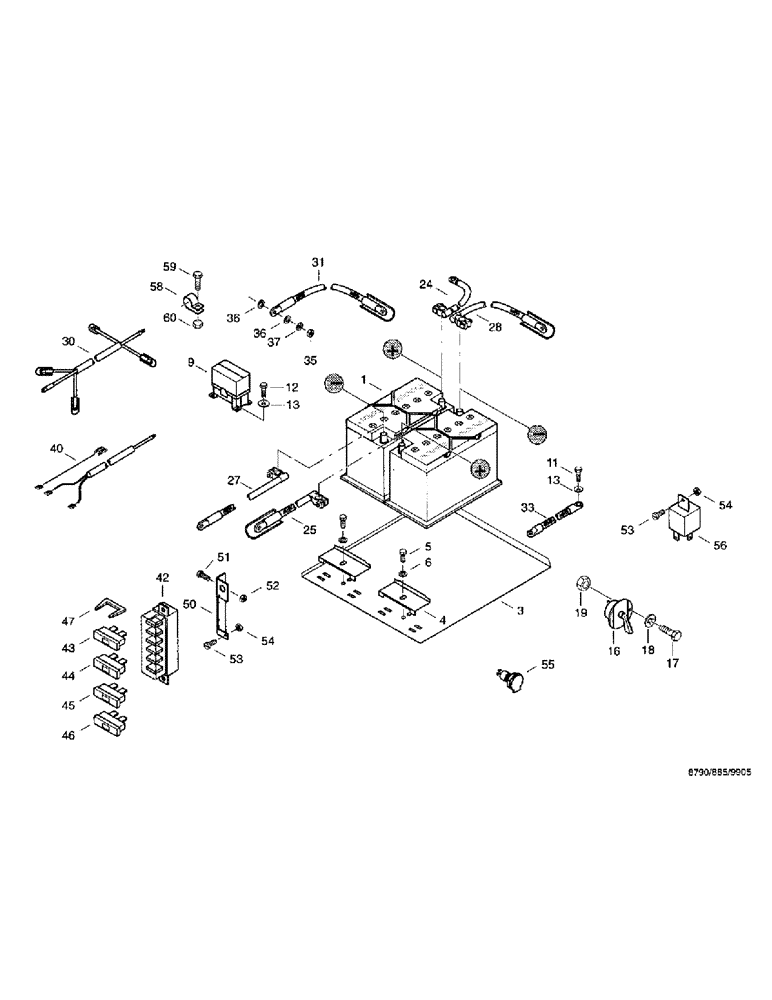

Запчасти Case IH 8790 (212) - STARTER (55) - ELECTRICAL SYSTEMS

1

07074996

WET BATTERY

12V 88AH

2шт.

3

36227574

STOP

SUPPORT

1шт.

4

36284002

SUPPORT

battery holder

2шт.

5

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

9

07076290

RELAY

battery changeover

1шт.

11

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

12

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

13

06577028

SPECIAL WASHER

M8

6шт.

16

060519472

BATTERY CUT-OUT

master switch, R B2 BHS 1002/5W SPR (24021

1шт.

17

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

18

06577028

SPECIAL WASHER

M8

2шт.

19

825-1408

NUT,M8, Cl 8

2шт.

24

07076016

CABLE

I

1шт.

25

07076008

CABLE

II

1шт.

27

07076024

CABLE

earth line I

1шт.

28

07075997

CABLE

earth line II

1шт.

30

07076032

LINE

starter

1шт.

31

07076563

CABLE

earth line III

1шт.

33

07066955

NEG BATTERY CABLE

earthing strip

1шт.

35

825-1410

NUT,M10, Cl 8

1шт.

37

06577003

SPECIAL WASHER

M10

1шт.

40

07080551

HARNESS

cable set BATTERIEKASTEN

1шт.

42

07074883

BOX, FUSE

1шт.

43

07070420

FUSE

locking, 7.5A

2шт.

44

07072205

FUSE

locking, 10A

1шт.

45

07080406

FUSE

locking, 25A (FLACHSTECKS.)

1шт.

46

07077066

FUSE

locking, 40A

1шт.

47

07070404

BRIDGE

reinforcing bar

3шт.

50

36294422

SUPPORT

fuse holder

1шт.

51

06004420

SCREW

cheese-head, M4 x 20 DIN84 4.8

2шт.

52

825-1404

NUT,M4, Cl 8

2шт.

53

06002925

SCREW

cheese-head, M5 x 14 DIN84 4.8

3шт.

54

825-1405

NUT,M5, Cl 8

3шт.

55

07068217

SOCKET

insert, 114.320

1шт.

56

07074850

RELAY

1шт.

58

98039906

FIXING BRACKET

CLIP attaching, RSGU1.38/20-W1

4шт.

59

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

60

825-1408

NUT,M8, Cl 8

2шт.

36

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
