Запчасти Case IH 8790 (209) - ELECTRIC EQUIPMENT (55) - ELECTRICAL SYSTEMS

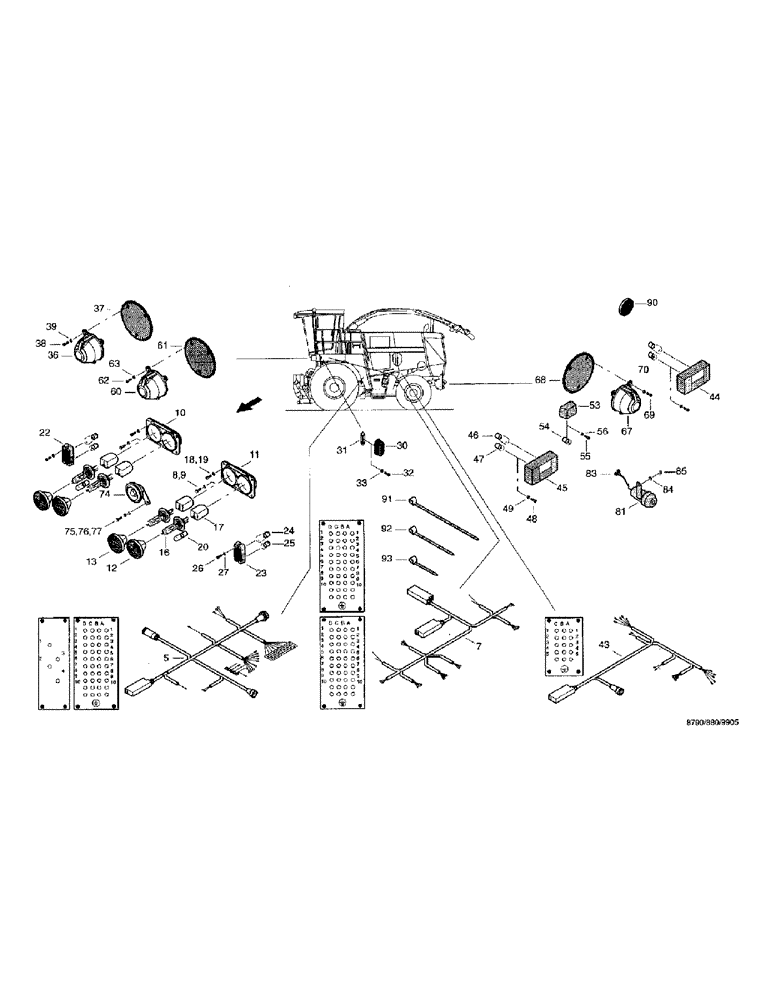

Схема запчастей Case IH 8790 - (209) - ELECTRIC EQUIPMENT (55) - ELECTRICAL SYSTEMS
25
55
69
32
9
46
47
74
92
7
70
24
53
45
10
44
48
23
26
17
68
75
39
31
91
19
11
77
43
36
37
76
13
12
20
5
54
38
61
81
63
18
22
67
90
62
93
8
16
33
27
85
56
49
83
30
84
60

Артикул

Название

Примечание

Количество

5

07080543

HARNESS

cable set

1шт.

7

07077804

PIPE SET

cable

1шт.

8

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

8шт.

9

06116155

NUT,M8, Cl 8

8шт.

10

07090071

HEADLIGHT

lamp receptacle r

1шт.

11

07090088

HEADLIGHT

lamp receptacle l

1шт.

12

07090096

HEADLIGHT

lamp inset

2шт.

13

07090102

HEADLIGHT

lamp inset

2шт.

16

07090110

BULB

filament lamp, H1-55W-12V DIN72601

4шт.

17

07075964

CONTACT

plug VPE 1 STK

4шт.

18

864-6035

HEX SOC SCREW,M6 x 35mm, Cl 8.8

cheese-head, M6 x 35 DIN912 8.8

8шт.

19

825-1406

NUT,M6, Cl 8

8шт.

20

07002530

BULB

filament lamp, TAW-12V DIN72601

2шт.

22

07090143

INDICATOR LIGHT

blinker r, BP79/3.21

1шт.

23

07090135

INDICATOR LIGHT

blinker l, BP79/3.11

1шт.

24

07024794

BULB

filament lamp, P21W-12V DIN72601

2шт.

25

07067683

BULB

filament lamp, R10W-12V VPE10STK DIN7260

2шт.

26

06004404

SCREW

cheese-head, AM4 x 16 DIN84 4.8

4шт.

27

825-1404

NUT,M4, Cl 8

4шт.

30

07075972

INDICATOR LIGHT

side flasher

2шт.

31

07002547

BULB

filament lamp, C5W-12V DIN72601

2шт.

32

06004404

SCREW

cheese-head, AM4 x 16 DIN84 4.8

4шт.

33

825-1404

NUT,M4, Cl 8

4шт.

36

07066088

POWER SOCKET

7 D12N/7P ISO1724

1шт.

37

01150965

PLUG

rubber cap

1шт.

38

06003210

SCREW

cheese-head, AM5 x 35 DIN84 4.8

3шт.

39

825-1405

NUT,M5, Cl 8

3шт.

43

07075956

HARNESS

cable set

1шт.

44

07073841

LAMP, WORK

LIGHT, WORK rear

1шт.

45

07073833

LAMP, WORK

LIGHT, WORK rear

1шт.

46

07024794

BULB

filament lamp, P21W-12V DIN72601

6шт.

47

07067683

BULB

filament lamp, R10W-12V VPE10STK DIN7260

2шт.

48

06011918

SCREW

cheese-head, M6 x 16 DIN84 4.8

4шт.

49

825-1406

NUT,M6, Cl 8

4шт.

53

07067747

LAMP

number-plate

1шт.

54

07067683

BULB

filament lamp, R10W-12V VPE10STK DIN7260

1шт.

55

06003805

SCREW,Hex Skt, M4 x 25mm, Cl 4.8

cheese-head, M4 x 25 DIN84 4.8

2шт.

56

825-1404

NUT,M4, Cl 8

2шт.

60

07066088

POWER SOCKET

7 D12N/7P ISO1724

1шт.

61

01150965

PLUG

rubber cap

1шт.

62

06003210

SCREW

cheese-head, AM5 x 35 DIN84 4.8

3шт.

63

825-1405

NUT,M5, Cl 8

3шт.

67

07066088

POWER SOCKET

7 D12N/7P ISO1724

1шт.

68

01150965

PLUG

rubber cap

1шт.

69

06008272

SCREW

cheese-head, M5 x 50 DIN84 4.8

3шт.

70

825-1405

NUT,M5, Cl 8

3шт.

74

07004227

BUZZER

horn, 8412.18/1

1шт.

75

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

76

06454901

WASHER, LOCK

spring, A10 DIN128 FST

1шт.

77

825-1410

NUT,M10, Cl 8

1шт.

81

07075980

LIGHT, WARNING

signal generator

1шт.

83

07071470

SPADE TERMINAL

flat plug, 8KW044288-003

2шт.

84

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

85

825-1408

NUT,M8, Cl 8

1шт.

90

04002453

REFLECTOR

ge D60

6шт.

91

07070992

COLLAR

band, 288 x 4.8 TSL-290-S

50шт.

92

07068200

CABLE

band sw, 188 x 4.8 TSL-190-S

100шт.

93

07069900

CABLE

band, 120 x 4.8 TSL-120-S/C

25шт.

Выбрано товаров: 58
