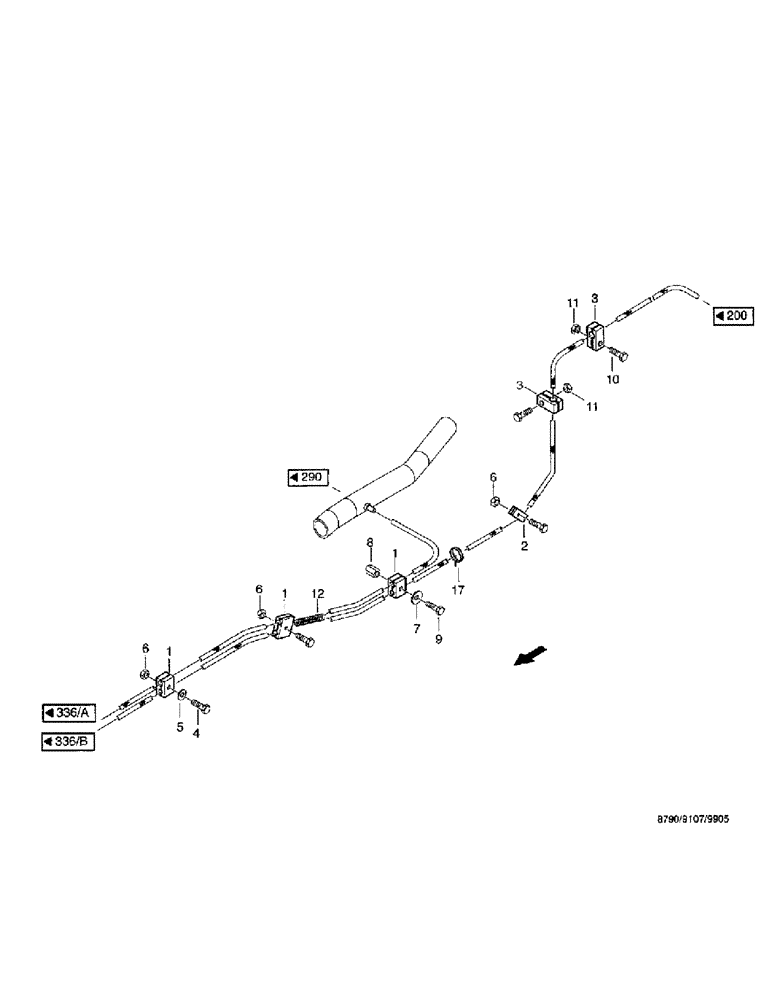

Запчасти Case IH 8790 (230) - HEATING (50) - CAB CLIMATE CONTROL

1

98041065

FIXING BRACKET

CLIP attaching, RSGU1.45/20-W1

3шт.

2

98045993

FIXING BRACKET

CLIP attaching, RSGU1.34/20-W1 DIN3016

1шт.

3

98043924

FIXING BRACKET

CLIP attaching, RSGU1.22/20-W1

2шт.

4

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

6

06116155

NUT,M8, Cl 8

3шт.

7

06577028

SPECIAL WASHER

M8

1шт.

8

36285093

TUBE NUT

threaded bushing

1шт.

9

614-8010

BOLT,Hex, M8 x 1.25 x 10mm, Cl 8.8, Full Thd

1шт.

10

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

11

86500689

NUT,M10 x 1.5, Cl 10

2шт.

12

01451630

SPIRAL

flat, 21 (20)

1шт.

17

06617166

CLAMP

CLIP hose, B1-22 x 12 DIN3017 W1-1

4шт.
