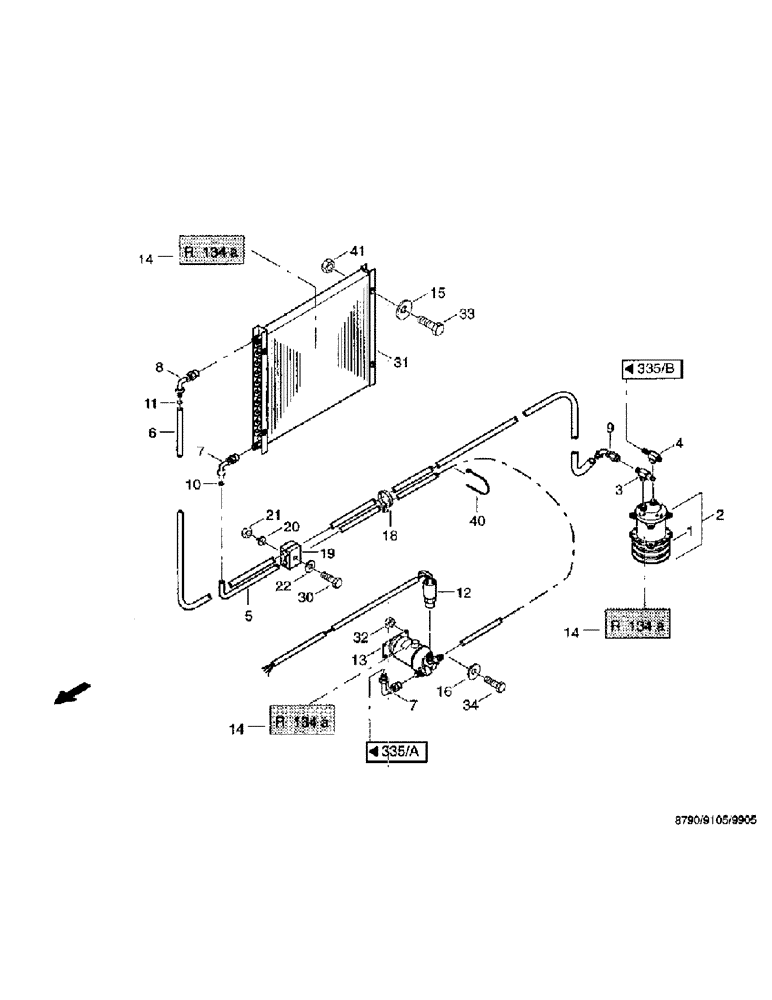

Запчасти Case IH 8790 (228) - AIR CONDITIONER (50) - CAB CLIMATE CONTROL

1

03253824

CLUTCH

electro-magnetic

1шт.

2

05811103

COMPRESSOR

SD5H14-RL/152 mm/2 x SPA/12

1шт.

3

05811111

VALVE

3/4ZOLL

1шт.

4

05811304

VALVE

7/8ZOLL

1шт.

5

05811345

LARGE HOSE

HOSE,LARGE cooling water, NW8

3шт.

6

05811144

LARGE HOSE

HOSE,LARGE cooling water, NW10 3.00M

1шт.

7

05811160

FITTING

instrument, NW8/90GR.5/8ZOLL

2шт.

8

05811177

FITTING

instrument, NW10/90GR.3/4ZOLL

1шт.

9

05811312

FITTING

instrument, NW10/45GR.3/4ZOLL

1шт.

10

05811208

O-RING

5/8ZOLL NW8

2шт.

11

05811216

O-RING

3/4ZOLL NW10

2шт.

12

05811193

SWITCH, PRESSURE

PRESSURE SWITCH 3-FACH

1шт.

13

05811007

RESERVOIR

dryer, 2 x 5/8ZOLL OR/ 1 x 7

1шт.

14

05811048

DECAL

band, R134A

3шт.

15

06577028

SPECIAL WASHER

M8

4шт.

16

06577036

SPECIAL WASHER

M6

4шт.

18

05811232

CLAMP

CLIP hose, 14/15

2шт.

19

03128200

CLAMP

CLIP pipe, RSGU1.12/15-W1 DIN3016

2шт.

20

05811023

GROMMET

SLEEVE rubber, 35

2шт.

21

825-1406

NUT,M6, Cl 8

2шт.

22

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

30

07070992

COLLAR

band, 288 x 4.8 TSL-290-S

10шт.

31

05811097

CAPACITOR

condenser

1шт.

32

825-1406

NUT,M6, Cl 8

4шт.

33

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

34

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

4шт.

40

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

41

825-1408

NUT,M8, Cl 8

4шт.
