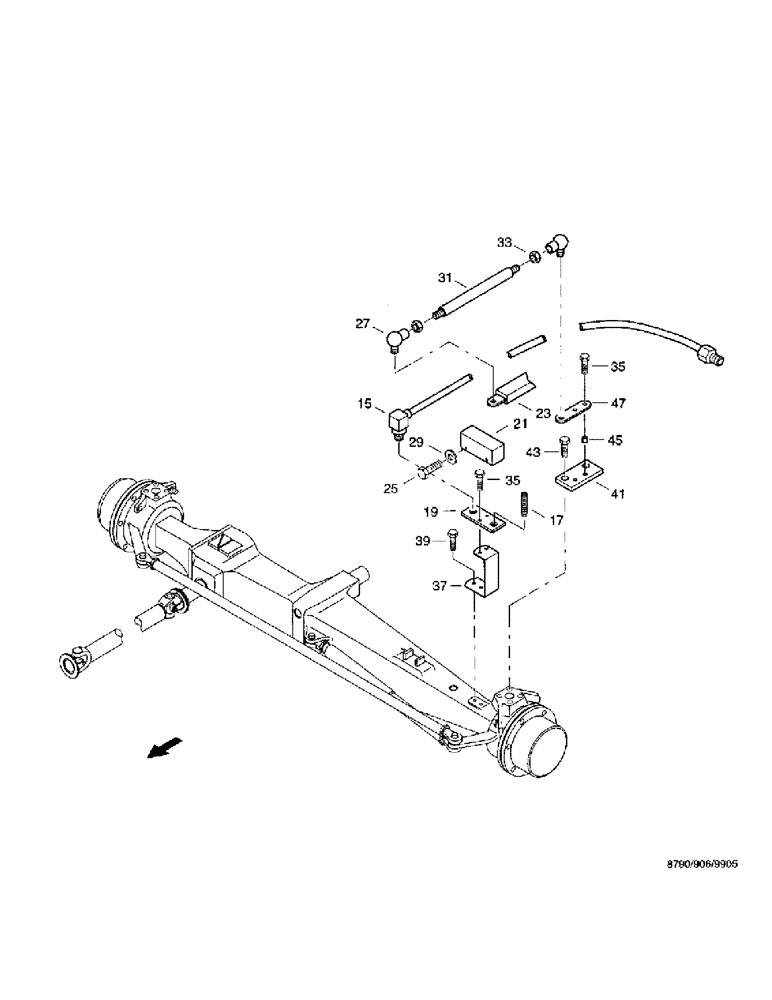

Запчасти Case IH 8790 (218) - AUTOMATIC STEERING (41) - STEERING

15

98031385

POTENTIOMETER

1шт.

17

98031386

PIN

threaded, M6 x 6-45H DIN916

2шт.

19

98031387

PLATE

1шт.

21

98031389

COWL

sheet metal cover

1шт.

23

98031390

LEVER

1шт.

25

614-6010

BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd

5шт.

27

04023015

JOINT

angle, AS10 OHNE SKM DIN71802 /S

2шт.

29

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

31

98039860

ROD,THREADED

THREADED ROD

1шт.

33

825-1406

NUT,M6, Cl 8

2шт.

35

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

37

04122509

RETAINER

SUPPORT

1шт.

39

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

41

36261422

LARGE PLATE

PLATE, LARGE STRAP

1шт.

43

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

2шт.

45

04050057

SPACER,10.2 mm ID, 16 mm OD, 13 mm Length

TUBE, 13 mm

2шт.

47

04106239

SHIN

STRAP

1шт.
