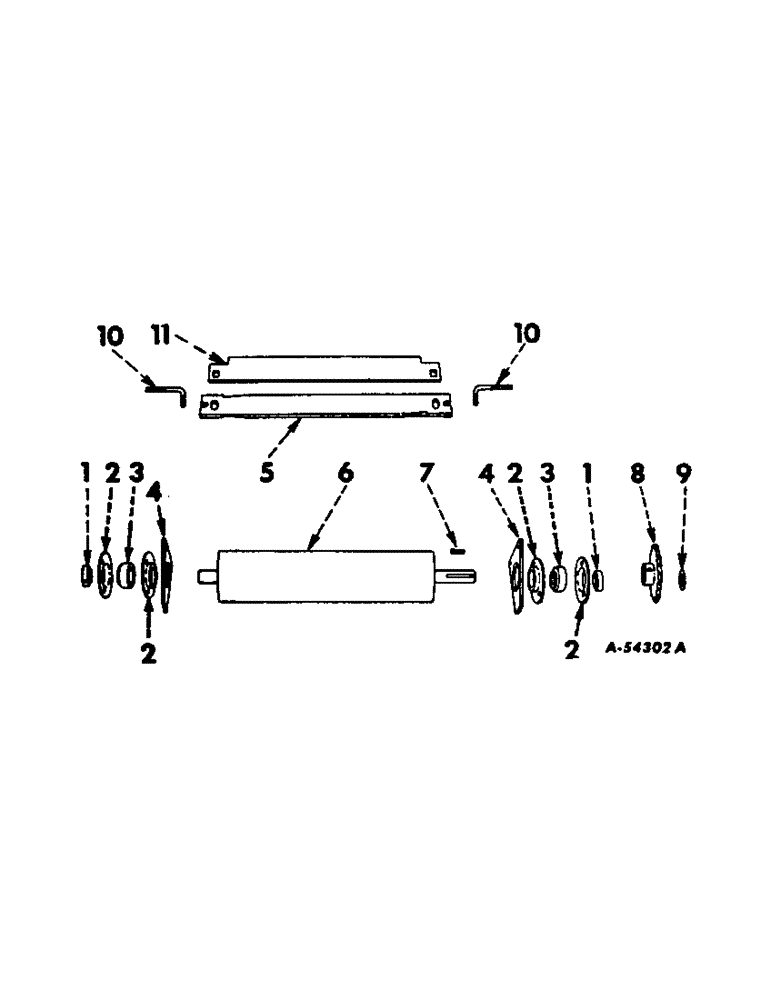

Запчасти Case IH 350 (D-12) - SMOOTH FEED ROLL (60) - PRODUCT FEEDING

1

455102R11

COLLAR

W/SET SCREW, locking

2шт.

2

571424R1

FLANGE

bearing

4шт.

3

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

W/O COLLAR, ball

2шт.

4

460412R1

FLANGE, bearing

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16-18 x 3/4 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

5

493534R1

BLADE

BAR, shear, will work for 465626R1 and plate 460414R1

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

16038R1

WASHER

17/32 x 1 x 11 ga

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

6

460409R11

ROLL ASSY, smooth feed

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

7

Q53

KEY,1/4" Sq x 1", Par

1шт.

8

465627R1

PINION

SPROCKET, smooth roll, 11T

1шт.

9

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga C-Z

4шт.

10

493535R1

ROD,3/8" - 16 x 3 5/16"

BOLT ASSY, shear bar

2шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

95-11041

WASHER,3/8"

13/32 x 13/16 x .065

4шт.

11

460414R1

PLATE ASSY.

PLATE, stripper, used w/shear plate 465626R1

1шт.

L13673

BOLT, 1/2-13 x 1-3/4 sq-nk crg

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.
