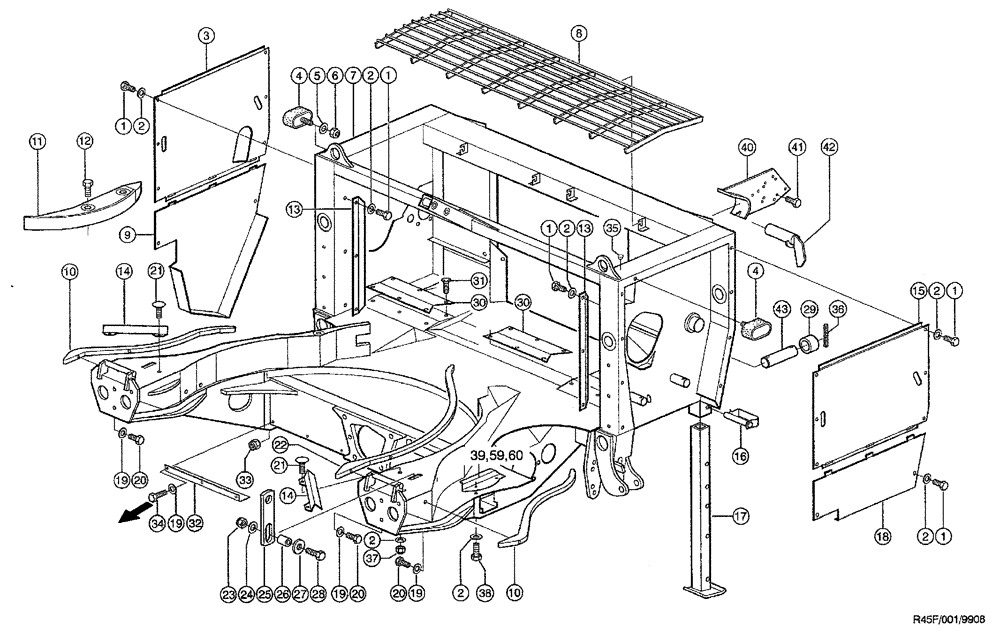

Запчасти Case IH RU450 (0001) - TROUGH (R45F) (58) - ATTACHMENTS/HEADERS

1

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

22шт.

2

239387N0

WASHER

A8

22шт.

3

992451N1

SHEET

COVER protective 1.5 x 482 x 634 RE.

1шт.

4

991075N0

BUMPER

STOP rubber M 10 60 x 30 x 30

2шт.

5

239388N0

DISC

WASHER A10

14шт.

6

825-1410

NUT,M10, Cl 8

2шт.

7

991801N2

FRAME ASSY

TROUGH

1шт.

8

991122N2

SIEVE

GRATING

1шт.

9

992452N0

SHEET

COVER protective1.5 x 609 x 61 ORE.

1шт.

10

992178N1

GUIDE

SEGMENT feed 15 x 455 x 881

2шт.

11

992500N1

GUIDE

2шт.

12

237453N0

CAPSCREW

BOLT hex M10 X 30 SK/8.8-A3C DIN933

4шт.

13

913593N0

SCRAPER

2 x 43 x 500

2шт.

14

991173N3

PROTECTIVE COVER

1.5 x 131 x 211

2шт.

15

992449N1

SHEET

COVER protective1.5 x 482 x 63411. OBEN

1шт.

16

978216N0

LARGE PIN

PIN, LARGE PLUG 12 x 96

2шт.

17

913506N0

FOOT

support

2шт.

18

992450N0

SHEET

COVER protective 1.5 x 239 x 610

1шт.

19

239393N1

WASHER

B8

6шт.

20

233259N0

SCREW

BOLT hex M8 x 20 MK/8.8-A3C ISO4017

6шт.

21

236438N0

SCREW

flat-round-head M8 x 16 x 10/8.8-A3C DIN603

4шт.

22

992179N2

BAR

SEGMENT feed m 15 x 466 x 1180

1шт.

23

238234N0

NUT

lock VM12

2шт.

24

239389N0

WASHER

A12

2шт.

25

991462N1

LARGE PLATE

PLATE, LARGE EYE lift 50 x 10 x 190

2шт.

26

909945N1

BUSHING

SLEEVE

2шт.

27

3222553

WASHER

2шт.

28

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

29

991811N0

SPACER

BUSHING

2шт.

30

996628N1

WEAR PLATE

feed

2шт.

31

97010295

SCREW

countersunk

12шт.

32

992150N0

WEAR PLATE

ANGLE

2шт.

33

215913N0

NUT

hex. rivet

6шт.

34

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

35

211351N0

PLUG

closing

8шт.

36

235682N2

COTTER PIN

roll

4шт.

37

238132N0

LOCK NUT

4шт.

38

239302N0

SCREW

BOLT hex

8шт.

39

992175N0

KNIFE WEAR PLATE

BAR feed shear

2шт.

40

991790N0

SUPPORT

coupling

2шт.

41

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

12шт.

42

992316N0

PIN

BOLT lock

2шт.

43

991808N0

PIN

BOLT

2шт.

59

992176N0

KNIFE WEAR PLATE

BAR feed shear

1шт.

60

992177N0

KNIFE WEAR PLATE

BAR feed shear

1шт.
