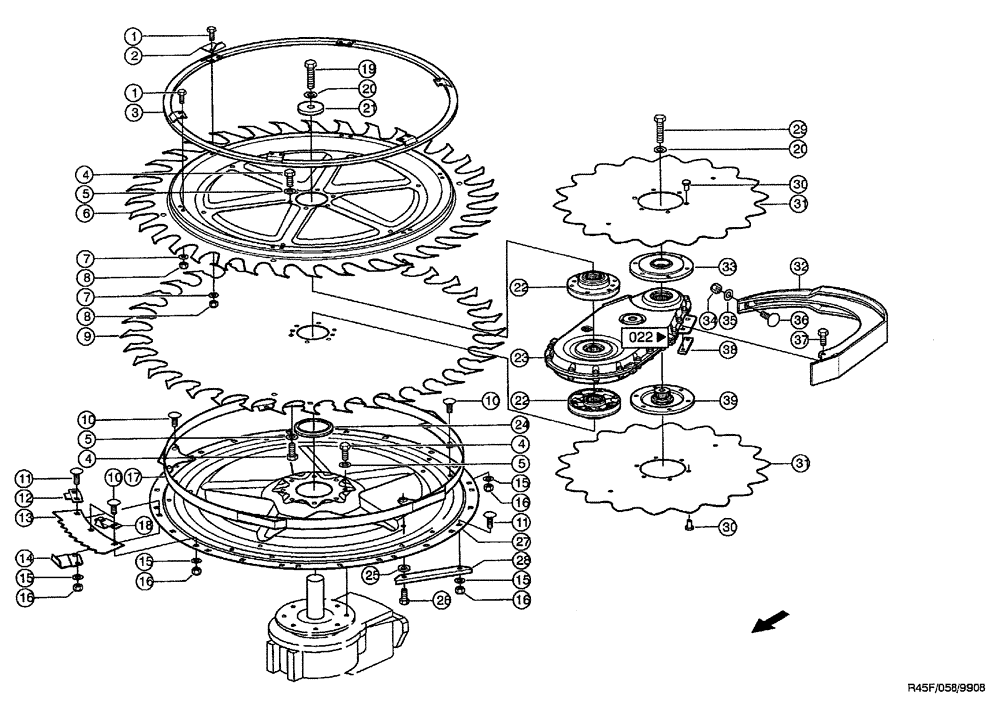

Запчасти Case IH RU450 (0058) - INTAKE DISC, MIDDLE (58) - ATTACHMENTS/HEADERS

1

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

24шт.

2

992488N1

LARGE PLATE

PLATE, LARGE RAKER 4 x 50 x 65

6шт.

3

992414N0

KNIFE GUIDE PLATE

ring i

1шт.

4

233574N0

SCREW

BOLT hex M12 x 25 MK DIN933 8.8

20шт.

5

239395N1

WASHER

B12

20шт.

6

992412N0

DISC

intake D1 250x5 OBEN

1шт.

7

239387N0

WASHER

A8

24шт.

8

238132N0

LOCK NUT

VM8/8-A3C

24шт.

9

992418N2

DISC

intake r, m UNTEN

1шт.

10

236510N0

SCREW

flat-round-head M10 x 20 x 12 DIN603 8.8

24шт.

11

502511N0

SCREW

flat-round-head M 10 x 25

12шт.

12

992807N1

LARGE PLATE

PLATE, LARGE PL:ATE cover 3 x 50 x 81

5шт.

13

992806N0

KNIFE

r

10шт.

14

990566N3

ADJUSTER

RIGHT guide r 3x121x124

5шт.

15

239388N0

DISC

WASHER A10

12шт.

16

237947N0

NUT

lock VM10

40шт.

17

992849N1

RING

r

1шт.

18

992357N1

SCRAPER

3 x 71 x 81

5шт.

19

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

ISO4014

3шт.

20

239391N0

WASHER

WASHER A16

3шт.

21

991138N0

DISC

WASHER D=65 x 8

1шт.

22

991585N0

FLANGE

2шт.

23

991576N0

TRANSMISSION

GEAR BOX scraper

1шт.

24

213921N0

RING

9RB 100 x 122 x 5.5

2шт.

25

234364N0

WASHER

WASHER 11 x 26 x 4

4шт.

26

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

27

996632N0

DISC

knife 1110 x 4

1шт.

28

996122N0

BAR

SCRAPER

2шт.

29

06364282

BOLT

BOLT hex M16 x 1.5 x 65 ISO8765 8.8

1шт.

30

213920N0

RIVET

countersunk 8 x 20 DIN661 ST

12шт.

31

991594N4

NOTCHED DISK

scraper D=730 x 5

2шт.

32

990968N5

DEFLECTOR

SUPPORT

1шт.

33

991583N1

FLANGE

1шт.

34

238234N0

NUT

lock VM12

6шт.

35

239389N0

WASHER

A12

1шт.

36

07753107

SCREW

flat-round-head M12 x 30 DIN603 8.8

1шт.

37

239049N0

SCREW

BOLT hex M12 x 30 MK/8.8-A3C ISO4017

2шт.

38

991397N0

SLAT

25 x 10 x 105

1шт.

39

991584N1

FLANGE

1шт.
