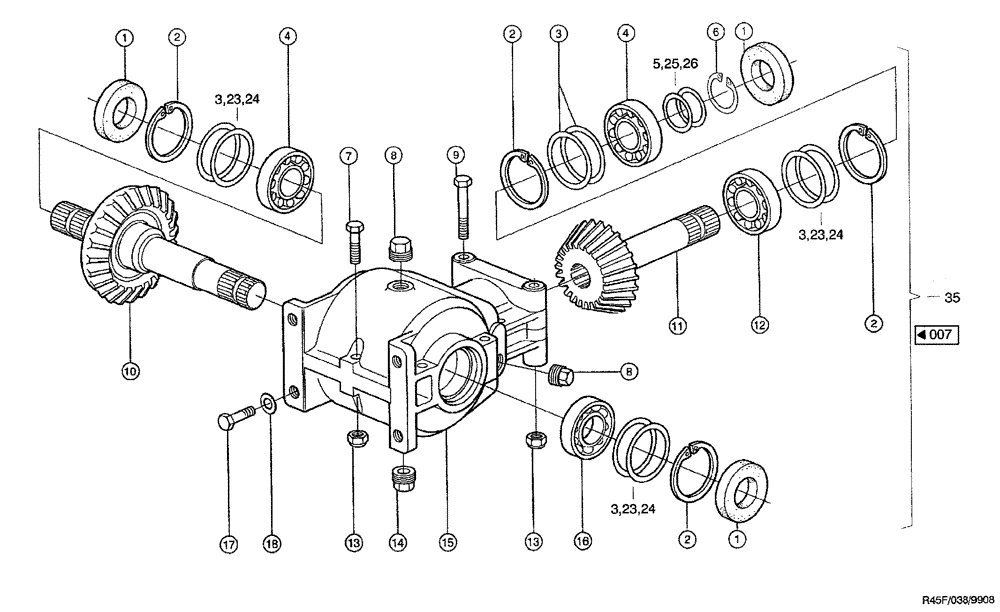

Запчасти Case IH RU450 (0038) - MAIN GEARBOX (R45F) (58) - ATTACHMENTS/HEADERS

1

01118715

SEAL

shaft AS35 x 72 x 10 DIN3760 NBR

3шт.

2

800-2172

SNAP RING

72 x 2.5 FST, DIN472, FST

4шт.

3

234176N0

RING ASSY.

SHIM 60 x 71.5 x 2

1шт.

4

03670671

BEARING, ROLLER

taper 30207 DIN720

2шт.

5

234385N0

BACK-UP RING

WASHER thrust 335 x 45 DIN988 440-550HV10

1шт.

6

800-5135

SNAP RING,M35, Ext, Hvy

1шт.

7

814-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 8.8

BOLT hex M10 x 65 ISO4014 8.8

7шт.

8

03223064

VANEUM GAUGE

SCREW locking M24 x 1.5

2шт.

9

814-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

2шт.

10

991760N0

PINION SHAFT

Z=28

1шт.

11

991574N0

PINION SHAFT

conical Z=17

1шт.

12

215776N0

BEARING ASSY

taper 33207 DIN720

1шт.

13

237947N0

NUT

lock VM10

9шт.

14

03222416

PLUG

SCREW locking M24 x 1.5 MAGNETISCH

1шт.

15

913652N0

HOUSING

GEARBOX

1шт.

16

97060307

BEARING

BALL grooved 6207 D1N625

1шт.

17

233583N0

SCREW

BOLT hex M16 x 35MK ISO4017 8.8

4шт.

18

239391N0

WASHER

WASHER A16

4шт.

23

234109N0

RING ASSY.

SHIM 60 x 71.5 x 0.1

1шт.

24

234121N0

RING ASSY.

SHIM 60 x 71.5x 0.3

1шт.

25

97022666

SHIM

35 x 45 x 0.1 DIN988 ST

1шт.

26

97022664

SHIM

35 x 45 x 0.3 DIN988 ST

1шт.

35

991703N0

TRANSMISSION

GEARBOX main

1шт.
