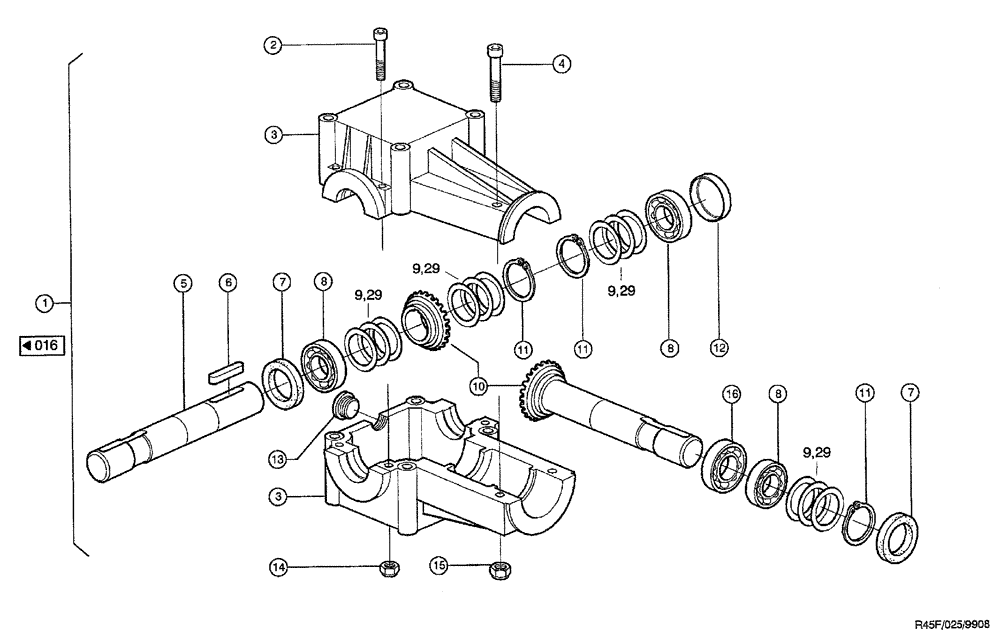

Запчасти Case IH RU450 (0025) - ANGULAR GEAR, LAID MAIZE AUGER (58) - ATTACHMENTS/HEADERS

1

991033NO

GEAR angular

1шт.

2

864-6045

HEX SOC SCREW,M6 x 45mm, Cl 8.8

cheese-head

1шт.

3

940573NO

CASE semi gear

2шт.

4

864-8045

HEX SOC SCREW,M8 x 45mm, Cl 8.8

cheese head

2шт.

5

939585N0

GEAR SHAFT

1шт.

6

214021N0

BUCKET TOOTH KEY

Flat 68 x 7 x 12 DIN6885 C45K

1шт.

7

212927N0

SEAL

shaft AS25 x 52 x 7 DIN3760

2шт.

8

235912N0

BEARING ASSY

grooved 6205 DIN625

3шт.

9

234393N0

WASHER

SHIM 25 x 35 x 0.1 DIN988 ST

1шт.

10

940575N0

GEAR-SET

1=1.35:1

1шт.

11

800-1125

SNAP RING,M25, Ext

3шт.

12

939597N0

COVER

52 x 6.5

1шт.

13

241459N0

COVER

PLUG closing D=16.7 GPN300

1шт.

14

825-1406

NUT,M6, Cl 8

4шт.

15

825-1408

NUT,M8, Cl 8

2шт.

16

235927N0

BEARING ASSY

grooved 6305 DIN625

1шт.

29

06623992

WASHER

SHIM 25 x 35 x 0.3 DIN988

1шт.
