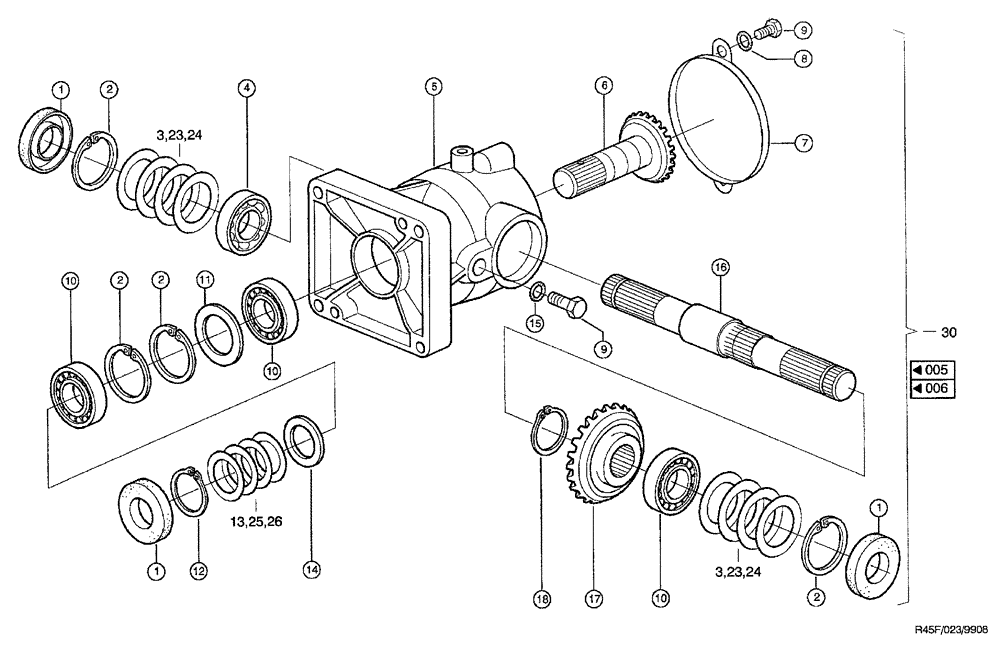

Запчасти Case IH RU450 (0023) - ANGULAR GEAR (58) - ATTACHMENTS/HEADERS

1

01118715

SEAL

shaft AS35 x 72 x 10 DIN3760 NBR

3шт.

2

800-2172

SNAP RING

72 x 2.5 FST, DIN472, FST

4шт.

3

03223425

SHIM

62 x 72 x 0.1

1шт.

4

97060307

BEARING

BALL grooved 6207 DIN625

1шт.

5

939587N0

HOUSING

1шт.

6

935012N0

PINION SHAFT

Z=15

1шт.

7

213903N0

COVER

120 x 12

1шт.

8

04101503

GASKET

SEAL A16 x 20 DIN7603 CU

1шт.

9

06103327

VANEUM GAUGE

SCREW locking AM16 x 1.5 DIN7604 ST

3шт.

10

03670671

BEARING, ROLLER

taper 30207 DIN720

3шт.

11

214018N0

WASHER

SHIM 62 x 72 x 2.0 DIN988 ST

3шт.

12

800-1135

SNAP RING,M35, Ext

DIN 471 FST

1шт.

13

97022666

SHIM

35 x 45 x 0.1 DIN988 ST

1шт.

14

234431N0

RING ASSY.

SHIM 35 x 45 x 1 DIN988 ST

1шт.

15

235786N0

SEAL ASSY.

SEAL A1 6 x 22 x 1.5 DIN7603 CU

2шт.

16

939577N0

GEAR SHAFT

1шт.

17

935014N0

CONE PINION

GEAR bevel Z=23

1шт.

18

800-1139

SNAP RING,M39, Ext

snap 39 x 1.75 DIN471 FST

1шт.

23

03223433

SHIM

62 x 72 x 0.3

1шт.

24

03223441

SHIM

62 x 72 x 0.5

1шт.

25

97022664

SHIM

35 x 45 x 0.3 DIN988 ST

1шт.

26

97022212

SHIM

35 x 45 x 0.5 DIN988 ST

1шт.

30

991027N0

TRANSMISSION

GEAR angular1=1:1,53

1шт.
