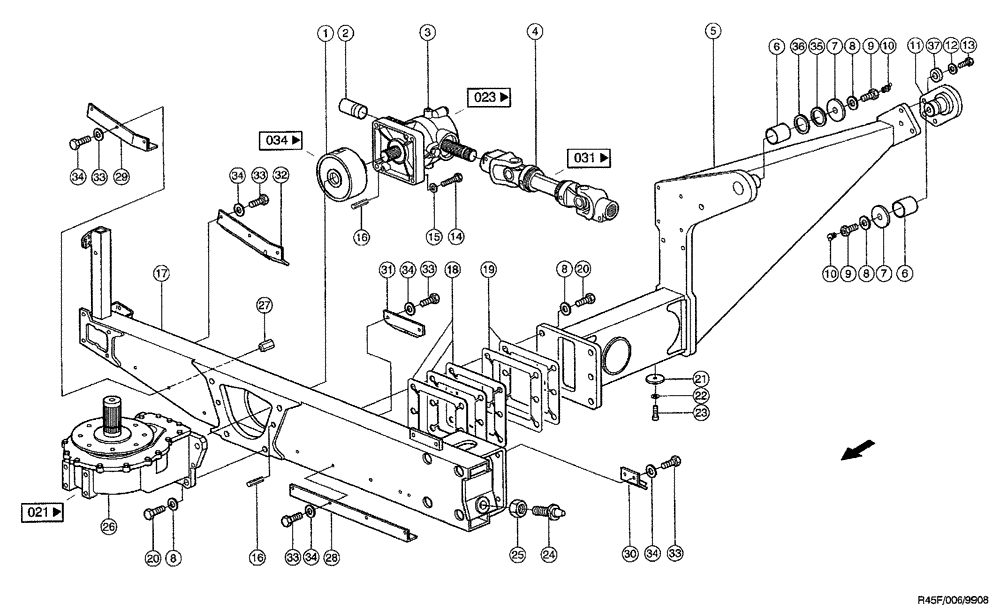

Запчасти Case IH RU450 (0006) - SUPPORTING ARM LH, DRIVE, RIGHT (58) - ATTACHMENTS/HEADERS

1

991128N1

COUPLING

CLUTCH cut-out M=780NM +-8%

1шт.

2

913631N0

PROTECTOR

SHAFT guard Dl=34.5 x 75

1шт.

3

991027N0

TRANSMISSION

GEAR angular 1=1:1.53

1шт.

4

991125N1

COUPLING

DRIVE SHAFT universal

1шт.

5

992247N1

SUPPORT ASSY.

ARM Ih r

1шт.

6

907091N0

BUSHING

SLEEVE 40 x 44 x 40

2шт.

7

991775N0

THRUST RING

WASHER 17 x 61 x 6

4шт.

8

239391N0

WASHER

WASHER A16

12шт.

9

991140N0

JACK SCREW

lubricating

2шт.

10

236944N0

NIPPLE, LUBE

NIPPLE grease

4шт.

11

991086N1

HOLDER

PLATE retaining

1шт.

12

239389N0

WASHER

A12

3шт.

13

215423N0

CAPSCREW

BOLT hex M12 x 45 MK DIN933 8.8

3шт.

14

215455N0

CAPSCREW

BOLT hex M12 x 60 MK/8.8-A3C DIN931

4шт.

15

239389N0

WASHER

A12

4шт.

16

233892N0

DOWEL

PIN roll 12 x 45A DIN8752

4шт.

17

992301N0

SUPPORT ASSY.

TUBE r

1шт.

18

991810N0

SHIM

PLATE spacer 2 x 180 x 220

3шт.

19

991809N0

SHIM

PLATE spacer 1 x 180 x 220

2шт.

20

238952N0

CAPSCREW

BOLT hex M16 x 45 MK DIN933 8.8

10шт.

21

211289N0

REFLECTOR

D=63

1шт.

22

895-25005

WASHER,M5 x 15 x 1.6

DIN9021 140HV

1шт.

23

242044N0

SCREW,Cheese Hd, M5 x 16mm

cheese-head M5 x 16 DIN84 4.8

1шт.

24

991141N0

SMALL PIN

SCREW centering RD42 X 115

1шт.

25

238942N1

NUT

hex M22 x 1.5 ISO8673 10

1шт.

26

991578N0

TRANSMISSION

DRIVE rotor

1шт.

27

215913N0

NUT

hex. rivet M8 KL-L 3-5.5

14шт.

28

992151N0

WEAR PLATE

angle 4 x 92 x 500

1шт.

29

992153N0

WEAR PLATE

angle 4 x 92 x 290

1шт.

30

992183N0

ANGLE

holding i

1шт.

31

992460N0

ANGLE

holding m

1шт.

32

992187N0

ANGLE

holding rAUSSEN

1шт.

33

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

14шт.

34

239387N0

WASHER

A8

14шт.

35

233626N1

DISC

SHIM 40 x 55 x 1

1шт.

36

233627N1

DISC

SHIM 40 x 55 x 2

1шт.

37

991476N0

SPACER, RING

D=30 x 13 x 12

3шт.
