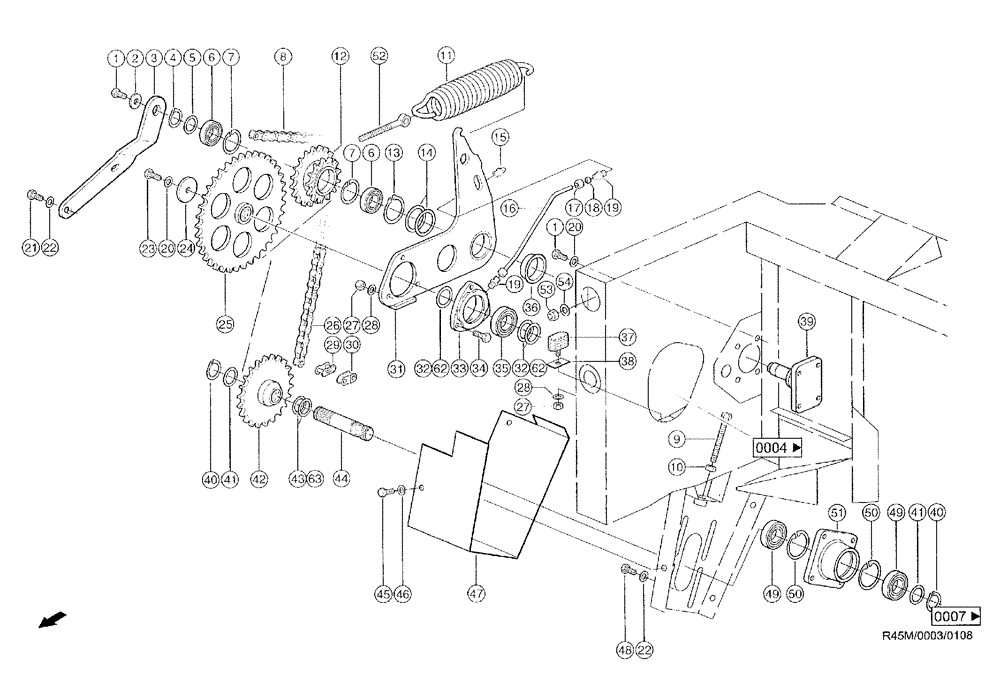

Запчасти Case IH RU450 (0003) - DRIVE, FEEDER AUGER (58) - ATTACHMENTS/HEADERS

1

239049N0

SCREW

BOLT hex, M12 x 30, MK/8.8-A3C ISO4017

5шт.

2

211394N0

DISC

WASHER, 13 x 35 x 5

1шт.

3

990862N2

SUPPORT

10 x 221 x 365

1шт.

4

800-1130

SNAP RING,M30, Ext

1шт.

5

97022172

SHIM

30 x 42 x 1.0, DIN988 ST

1шт.

6

235830N0

BEARING, BALL

grooved, 6206-2RS

2шт.

7

800-2162

SNAP RING,M62, Int

x 2, DIN472 FST

2шт.

8

214223N0

CHAIN (AG)

roller, RE51 25.4T 49CE

1шт.

9

614-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 8.8, Full Thd

ISO4017

3шт.

10

825-1412

NUT,M12, Cl 8

3шт.

11

984419N1

SPRING

tension

1шт.

12

991714N1

SPROCKET ASSY.

19/13 teeth

1шт.

13

800-1155

RETAINER,55mm ID

RING snap, 55 x 2, DIN471 FST

1шт.

14

239370N0

DISC

SHIM, 55 x 68 x 1/ST2K DIN988

2шт.

15

03640754

LUBE NIPPLE

grease, CM8 x 1 DIN71412

1шт.

16

941838N0

LINE

PIPE lubricating, 5 x 1 x 6000

1шт.

17

98-041302

TUBE NUT

connection

2шт.

18

408614N0

OLIVE

2шт.

19

239156N0

FITTING

CONNECTOR male

2шт.

20

06650038

WASHER

A12

7шт.

21

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

22

239395N1

WASHER

B12

6шт.

23

239160N0

SCREW

BOLT hex, M12 x 35 MK/8.8-A3C ISO4017

1шт.

24

233031N0

DISC

WASHER, 13 x 62 x 6

1шт.

25

991038N0

SPROCKET ASSY.

37 teeth, 1ZOLL

1шт.

26

212745N0

CHAIN (AG)

roller, RE51 25.4 T60E

1шт.

27

825-1410

NUT,M10, Cl 8

4шт.

28

06650021

WASHER

A10

4шт.

29

920300N4

OFFSET LINK

25.4 x 12.7 GERADE

1шт.

30

920300N5

LINK, CONNECTING

offset, 25.4 x 12.7 x 8.28 GEKR.

1шт.

31

996304N2

ARM

rocker, R.H.

1шт.

32

233626N1

DISC

SHIM, 40 x 55 x 1

1шт.

33

913088N0

HOUSING, BEARING

1шт.

34

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

3шт.

35

213648N0

BEARING, BALL

COLLAR lock, YEN208-S

1шт.

36

008593N0

BUSHING

SLEEVE, 54.9 x 59.9 x 20, 340 long

1шт.

37

991075N0

BUMPER

STOP rubber, M 10 60 x 30 x 30

1шт.

38

991106N0

PLATE

3 x 30 x 50

1шт.

39

912987N0

JOURNAL

bearing

1шт.

40

800-5135

SNAP RING,M35, Ext, Hvy

2шт.

41

234385N0

BACK-UP RING

WASHER thrust, S35 x 45 DIN988 440-550HV10

2шт.

42

991710N0

SPROCKET ASSY.

22 teeth, 1ZOLL

1шт.

43

97022212

SHIM

35 x 45 x 0.5 DIN988 ST

1шт.

44

991701N0

SHAFT

D=35K6 x 186

1шт.

45

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

3шт.

46

06577028

SPECIAL WASHER

M8

3шт.

47

991563N0

PROTECTION PLATE

GUARD plate, 2 x 283 x 757

1шт.

48

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

49

235869N0

BEARING ASSY

grooved, 6207-2RS

2шт.

50

800-2172

SNAP RING

72 x 2.5, DIN472 FST

2шт.

51

992689N0

HOUSING

bearing

1шт.

52

97013112

SCREW

BOLT eye, LBM16 x 130 DIN444 5.6

1шт.

53

238047N0

NUT

lock, 16/8-A3C

1шт.

54

239391N0

WASHER

WASHER, A16

1шт.

62

233627N1

DISC

SHIM, 40 x 55 x 2

1шт.

63

06608768

SHIM

35 x 45 x 1 DIN988

1шт.
