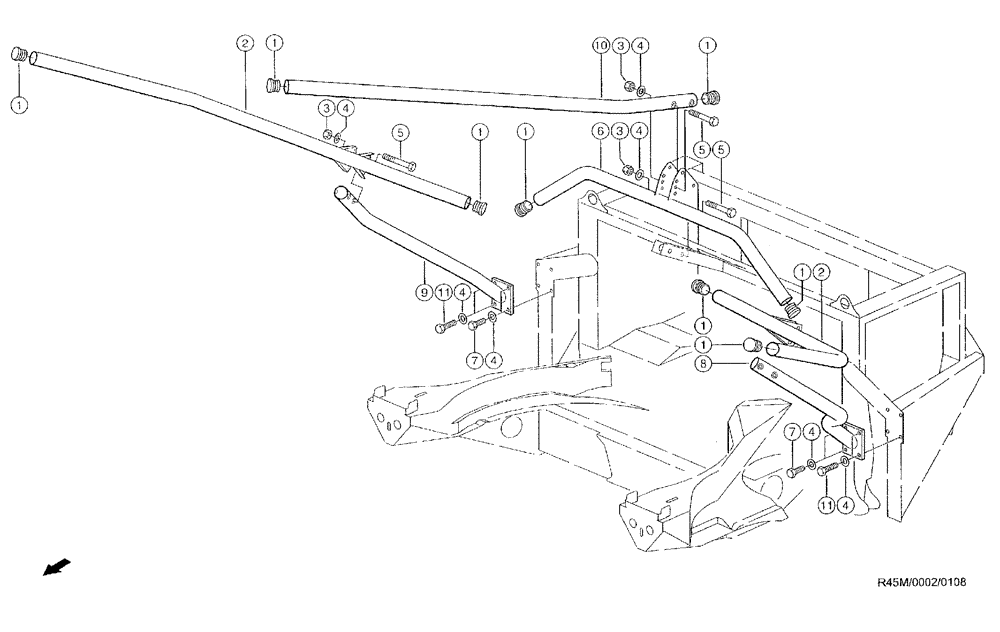

Запчасти Case IH RU450 (0002) - PUSH BAR (58) - ATTACHMENTS/HEADERS

1

214211N0

PLUG

lamella, D50

7шт.

2

992337N1

TUBE

BAR push

2шт.

3

237947N0

NUT

lock, 10

8шт.

4

06650021

WASHER

A10

10шт.

5

211042N0

SCREW

BOLT hex, M 10 x 40 MK/8.8-A3C ISO4017

8шт.

6

996342N0

TUBE

BAR push, middle

1шт.

7

814-10085

BOLT,Hex, M10 x 1.5 x 85mm, Cl 8.8

8шт.

8

992335N0

SUPPORT

L.H.

1шт.

9

992336N0

SUPPORT

R.H.

1шт.

10

996341N0

SUPPORT

TUBE guide, complete

1шт.

11

614-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

ISO 4017

4шт.
