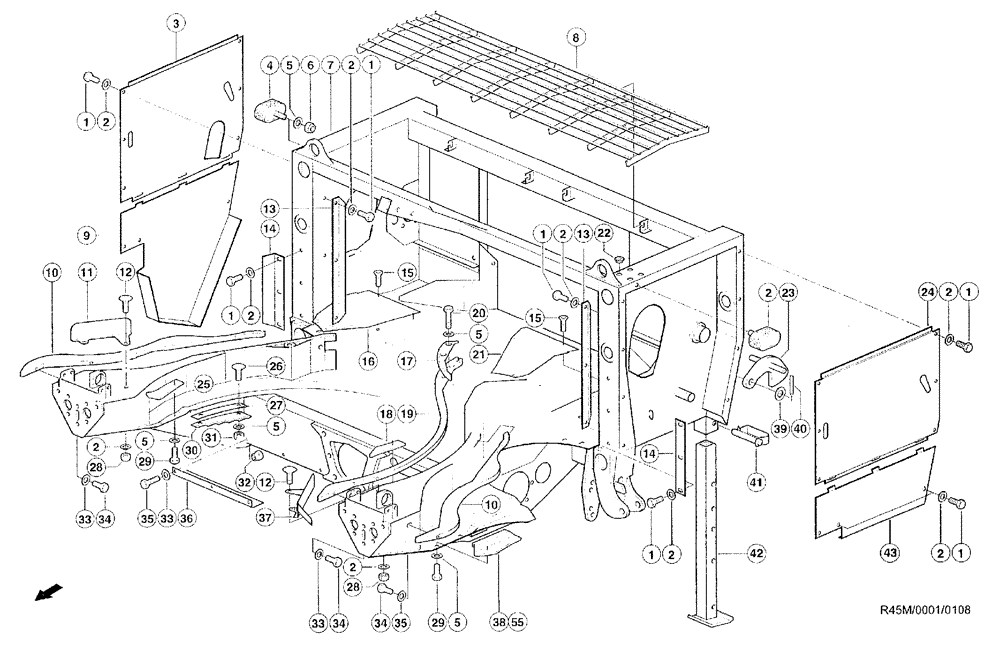

Запчасти Case IH RU450 (0001) - TROUGH (58) - ATTACHMENTS/HEADERS

1

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

26шт.

2

06577028

SPECIAL WASHER

M8

40шт.

3

992451N1

SHEET

COVER protective, R.H., 1.5 x 482 x 634

1шт.

4

991075N0

BUMPER

STOP rubber, M 10 60 x 30 x 30

2шт.

5

06650021

WASHER

A10

2шт.

6

825-1410

NUT,M10, Cl 8

2шт.

7

991871N6

FRAME ASSY

1шт.

8

991122N2

SIEVE

Grating

1шт.

9

992452N1

SHEET

R.H., 1.5 x 599 x 609

1шт.

10

992178N2

SUPPORT

15 x 455 x 881

2шт.

11

991173N4

PROTECTIVE COVER

3 x 142 x 246

1шт.

12

003780507

SCREW

flat, round head, M8 x 16 DIN603 8.8

4шт.

13

913593N0

SCRAPER

2 x 43 x 500

2шт.

14

991329N0

PROTECTION PLATE

PLATE guide, 4 x 82 x 294

2шт.

15

97010295

SCREW

countersunk, M8 x 20 DIN7991 8.8

12шт.

16

996628N1

WEAR PLATE

feed

1шт.

17

992500N1

GUIDE

1шт.

18

992175N1

KNIFE GUIDE PLATE

inner, 8 x 59 x 178

2шт.

19

992179N3

BAR

15 x 466 x 1180

1шт.

20

237453N0

CAPSCREW

BOLT hex, M10 x 30 SK/8.8-A3C DIN933

2шт.

21

996629N1

WEAR PLATE

feed

1шт.

22

211351N0

PLUG

closing, D=11.7 GPN300

8шт.

23

991936N0

HOOK

catch

2шт.

24

992449N1

SHEET

COVER protective, L.H., 1.5 x 482 x 634

1шт.

25

996601N1

LARGE PLATE

PLATE, LARGE inner, 8 x 68 x 190

1шт.

26

502511N0

SCREW

flat, round head, M10 x 25

2шт.

27

996640N0

BLOCK

SHIM, 2.5 x 102 x 203

2шт.

28

238132N0

LOCK NUT

8/8-A3C

8шт.

29

239302N0

SCREW

BOLT hex, M10 x 16 MK/8.8-A3C DIN933

8шт.

30

996637N0

KNIFE

1шт.

31

237947N0

NUT

lock, 10

2шт.

32

215913N0

NUT

hex, rivet, M8 KI-L 3-5.5

6шт.

33

06650005

WASHER

B8

6шт.

34

233259N0

SCREW

BOLT hex, M8 x 20 MK/8.8-A3C ISO4017

6шт.

35

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

36

992150N0

WEAR PLATE

angle, 4 x 82 x 420

2шт.

37

990910N0

SUPPORT

3 x 142 x 436

1шт.

38

992176N1

KNIFE WEAR PLATE

1.8 x 132 x 238

1шт.

39

234291N0

DISC

WASHER, 17 x 26 x 2

2шт.

40

237795N3

COTTER PIN

4 x 26A/ST DIN8752

2шт.

41

978216N0

LARGE PIN

PIN, LARGE PLUG, 12 x 96

2шт.

42

991104N2

BOLT

2шт.

43

992450N0

SHEET

COVER protective, L.H., lower,1.5 x 239 x 610

1шт.

55

992177N1

KNIFE GUIDE PLATE

R.H., 8 x 132 x 238

1шт.
