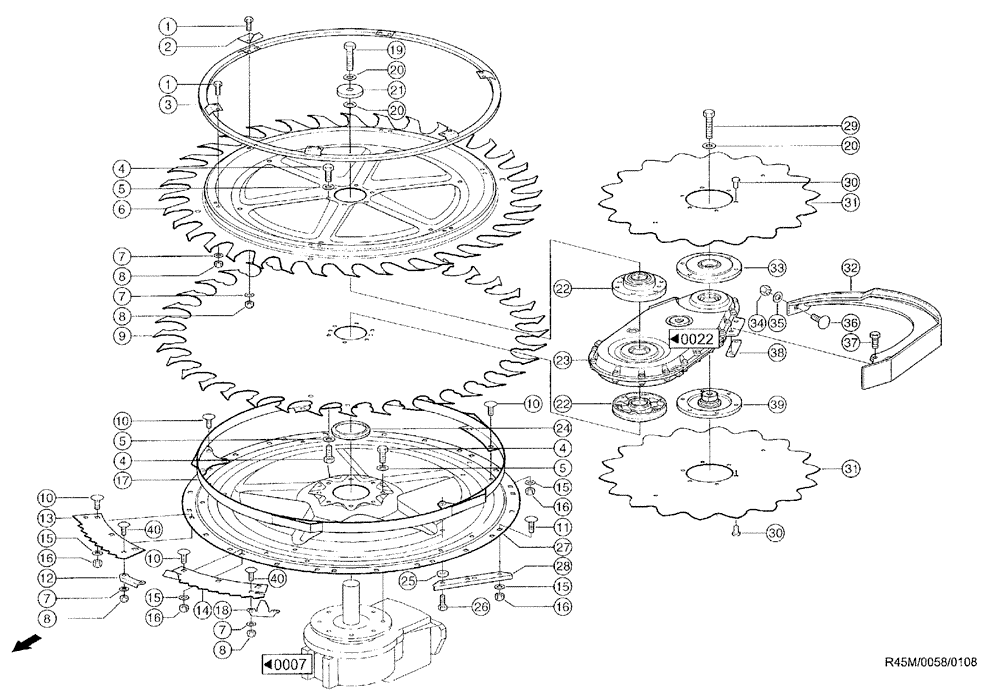

Запчасти Case IH RU450 (0058) - INTAKE DISC, MIDDLE (58) - ATTACHMENTS/HEADERS

1

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

24шт.

2

992488N1

LARGE PLATE

PLATE, LARGE RAKER, 4 x 50 x 65

3шт.

3

992414N0

KNIFE GUIDE PLATE

ring, inner

1шт.

4

233574N0

SCREW

BOLT hex, M1 2 x 25 MK, DIN933 8.8

20шт.

5

239395N1

WASHER

B12

20шт.

6

992412N1

DISC

intake, D1250 x 5

1шт.

7

239387N0

WASHER

A8

24шт.

8

238132N0

LOCK NUT

8/8-A3C

24шт.

9

996843N0

DISC intake

1шт.

10

236510N0

SCREW

flat, round head, M10 x 20 x 12, DIN603 8.8

24шт.

11

502511N0

SCREW

flat, round head, M 10 x 25

12шт.

12

992807N1

LARGE PLATE

PLATE, LARGE cover, 3 x 50 x 81

5шт.

13

996313N0

KNIFE

R.H.

5шт.

14

996312N1

KNIFE

R.H.

5шт.

15

239388N0

DISC

WASHER, A10

12шт.

16

237947N0

NUT

lock, 10

40шт.

17

996741N1

RING

1шт.

18

991982N1

SCRAPER

3 x 50 x 92

5шт.

19

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

1шт.

20

239391N0

WASHER

WASHER, A16

1шт.

21

991138N0

DISC

WASHER, D=65 x 8

1шт.

22

991585N0

FLANGE

2шт.

23

991576N0

TRANSMISSION

GEAR BOX scraper

1шт.

24

213921N0

RING

9RB 100 x 122 x 5.5

2шт.

25

234364N0

WASHER

11 x 26 x 4

4шт.

26

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

27

996632N0

DISC

knife, 1110 x 4

1шт.

28

996122N1

SCRAPER

UNTERE MESSER

2шт.

29

06364282

BOLT

BOLT hex, M16 x 1.5 x 65, ISO8765 8.8

1шт.

30

213920N0

RIVET

countersunk, 8 x 20, DIN661 ST

12шт.

31

991594N4

NOTCHED DISK

scraper, D=730 x 5

2шт.

32

990968N7

DEFLECTOR

SUPPORT

1шт.

33

991583N1

FLANGE

1шт.

34

238234N0

NUT

lock, 12

6шт.

35

239389N0

WASHER

A12

1шт.

36

07753107

SCREW

flat, round head, M12 x 30, DIN603 8.8

1шт.

37

239049N0

SCREW

BOLT hex, M12 x 30, MK/8.8-A3C, ISO4017

2шт.

38

991397N1

SLAT

20 x 10 x 105

1шт.

39

991584N2

FLANGE

1шт.

40

003780507

SCREW

flat, round head, M8 x 16, DIN603 8.8

10шт.
