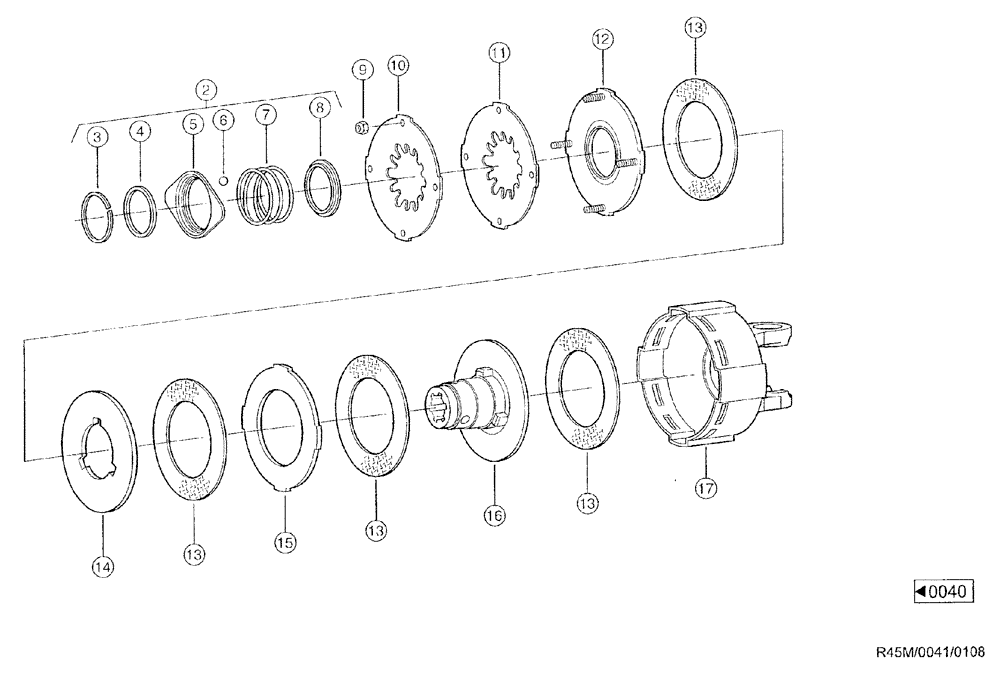

Запчасти Case IH RU450 (0041) - FRICTION CLUTCH (58) - ATTACHMENTS/HEADERS

2

939566N0

BLANK-OFF PLUG

LOCK disconnect

1шт.

3

214406N0

RING, LOCKING

RING, LOCK snap, SP50, DIN5417 FST

1шт.

4

941098N0

RING

angle

1шт.

5

920677N0

SLEEVE

locking

1шт.

6

211-1016

BALL,12.7mm OD, Gr 24

Steel (12.7 mm), DIN5401, III

3шт.

7

920678N0

COMPRESSION SPRING

pressure

1шт.

8

920685N0

BELLEVILLE SPRING

1шт.

9

825-1408

NUT,M8, Cl 8

4шт.

10

935220N0

THRUST RING

SPRING belleville

2шт.

11

920686N0

THRUST RING

WASHER pressure

1шт.

12

920687N2

FRICTION WASHER

disc

4шт.

13

920699N0

DISC

PLATE carrier

1шт.

14

920700N0

DISC

WASHER

1шт.

15

935219N0

SYNCHRO BODY

HUB

1шт.

16

941464N0

HOUSING

clutch

1шт.
