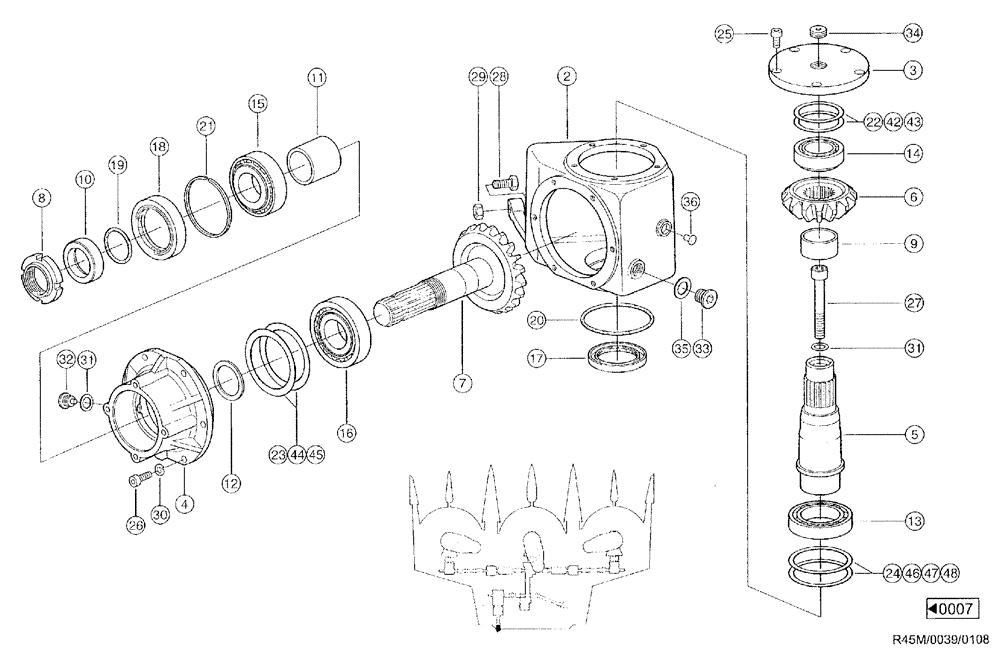

Запчасти Case IH RU450 (0039) - ANGULAR GEAR (58) - ATTACHMENTS/HEADERS

2

935713N0

HOUSING

1шт.

3

935714N0

COVER

bearing

1шт.

4

935715N0

FLANGE

bearing

1шт.

5

935716N0

DRIVE SHAFT

1шт.

6

935717N0

CONE PINION

conical

1шт.

7

935718N0

PINION SHAFT

1шт.

8

243001N0

SLOTTED NUT

grooved, M40 x 1.5, DIN1804 17H

1шт.

9

935719N0

SPACER

bushing

1шт.

10

935720N0

RACE

ball

1шт.

11

935721N0

SPACER

bushing

1шт.

12

935722N0

SPACER, RING

1шт.

13

03661767

BALL BEARING

grooved ball, 6010, DIN625

1шт.

14

243654N0

BEARING ASSY

taper, 32007 x/Q, DIN720

1шт.

15

235988N0

BEARING ASSY

taper, 30208 J2/Q, DIN720

1шт.

16

243684N0

BEARING, ROLLER

taper, 30308, DIN720

1шт.

17

01121278

SEAL

shaft, A50 x 72 x 8, DIN3760 NBR

1шт.

18

213945N0

SEAL

shaft, AS55 x 80 x 10, DIN3760

1шт.

19

238780N0

SEAL

O-RING, 39.2 x 3, DIN3771 N-NBR70

1шт.

20

211339N0

SEAL

O-RING, 85 x 3, DIN3771 N-NBR70

1шт.

21

211586N0

RING

snap, SB80

1шт.

22

06625648

SHIM

50 x 62 x 0.1, DIN988

1шт.

23

06635151

SHIM

70 x 90 x 0.1, DIN988

1шт.

24

215155N1

WASHER

70 x 79 x 0.1

1шт.

25

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

Cheese-head, DIN 912

5шт.

26

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

Cheese head, DIN 912

6шт.

27

962-12090

HEX SOC SCREW,M12 x 90mm, Cl 10.9

cheese head, M12 x 90, DIN912 10.9

1шт.

28

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

29

825-1410

NUT,M10, Cl 8

1шт.

30

235132N1

WASHER

8

6шт.

31

04101407

GASKET

SEAL, A14 x 18, DIN7603 CU

1шт.

32

239263N0

SCREW

locking, M14 x 1.5, MAGNETISCH

1шт.

33

244342N0

SCREW

locking, M18 x 1.5, DIN908 9SMNPB28K

1шт.

34

214161N0

SCREW

locking, M20 x 1.5, DIN906 9SMNPB28K

1шт.

35

04101608

GASKET

SEAL, A18 x 22, DIN7603CU

1шт.

36

935723N0

BREATHER

valve

1шт.

42

06655034

SHIM

50 x 62 x 0.3, DIN988

1шт.

43

06609254

SHIM

50 x 62 x 0.5, DIN988

1шт.

44

06635168

SHIM

70 x 90 x 0.3, DIN988

1шт.

45

97022237

WASHER

SHIM, 70 x 90 x 0.5, DIN988

1шт.

46

215156N0

WASHER

SHIM, 70 x 79 x 0.3

1шт.

47

215157N0

WASHER

SHIM, 70 x 79 x 0.5

1шт.

48

211656N0

WASHER

SHIM, 70 x 79 x 1

1шт.
