Запчасти Case IH RU450 (0038) - GEARBOX (58) - ATTACHMENTS/HEADERS

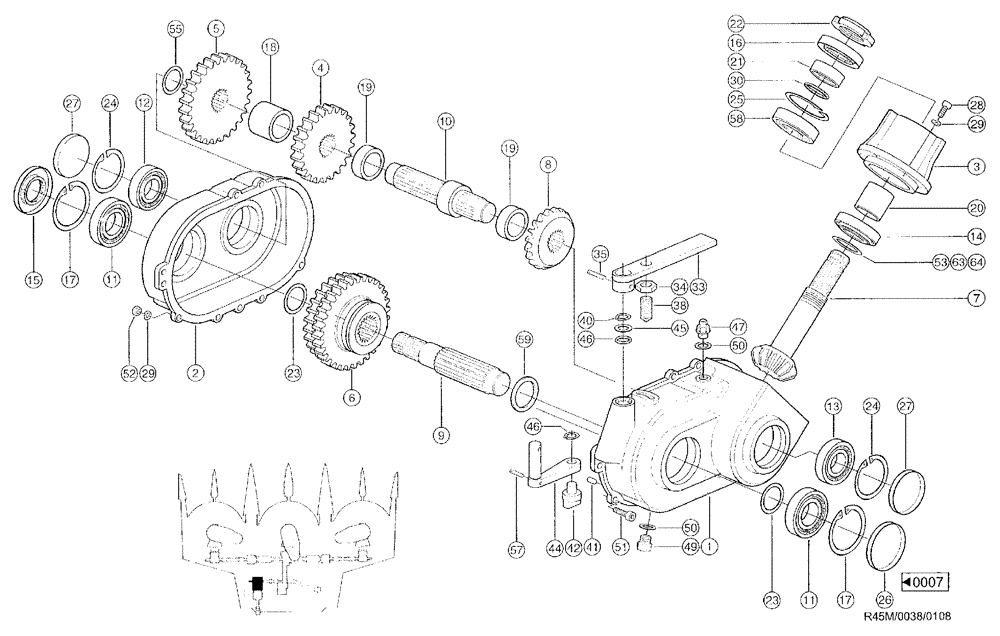

Схема запчастей Case IH RU450 - (0038) - GEARBOX (58) - ATTACHMENTS/HEADERS
59
15
20
35
33
50
63
19
27
40
42
11
13
22
21
57
30
8
58
2
64
26
1
41
3
25
46
14
29
38
47
16
11
9
24
53
24
6
51
18
23
55
7
17
44
45
49
23
27
46
19
10
29
12
50
28
5
4
34
17
52

Артикул

Название

Примечание

Количество

1

935728N0

HOUSING

1шт.

2

935729N0

HOUSING

1шт.

3

935730N0

COVER

CAP

1шт.

4

935731N0

WHEEL GEAR

23 teeth

1шт.

5

935732N0

WHEEL GEAR

27 teeth

1шт.

6

935733N0

WHEEL GEAR

twin, 28/32 teeth

1шт.

7

935734N0

PINION SHAFT

conical, 13 teeth

1шт.

8

935735N0

CONE PINION

GEAR bevel, 20 teeth

1шт.

9

935736N0

DRIVE SHAFT

1шт.

10

935737N0

DRIVE SHAFT

1шт.

11

238963N0

BEARING, ROLLER

cylindrical, NJ208ETVP2, DIN5412

2шт.

12

03683354

BEARING ASSY

cylindrical, NJ207ETVP2, DIN5412

1шт.

13

235987N0

BEARING, ROLLER

taper, 30207 J2, DIN720

1шт.

14

235988N0

BEARING ASSY

taper, 30208 J2/Q, DIN720

1шт.

15

213411N0

SEAL

shaft, AS40 x 80 x 10, DIN3760 NBR

1шт.

16

01120976

PACKING RING

SEAL shaft, AS58 x 80 x 10, DIN3760 NBR

1шт.

17

800-2180

SNAP RING,M80, Int

2шт.

18

935739N0

TUBE SPACER

1шт.

19

935739N0

TUBE SPACER

2шт.

20

935738N0

TUBE SPACER

1шт.

21

935740N0

RING

RING

1шт.

22

935741N0

SAFETY NUT

lock, M40 x 1.5, DIN936ST

1шт.

23

97020273

SHIM

40 x 50 x 1.0, DIN988ST

4шт.

24

800-2172

SNAP RING

72 x 2.5, DIN472 FST

2шт.

25

800-2180

SNAP RING,M80, Int

1шт.

26

939596N0

VANEUM GAUGE

COVER, 80 x 8

1шт.

27

921230N0

VANEUM GAUGE

COVER, 72 x 9

2шт.

28

864-10025

HEX SOC SCREW,M10 x 25mm, Cl 8.8

cheese head, M10 x 25, DIN912 8.8

6шт.

29

03253568

WASHER, LOCK

spring, 10/CLAAS

15шт.

30

213748N0

O-RING

O-RING, 40 x 2.5, DIN3771 N-NBR70

1шт.

33

935744N0

CONTROL LEVER

gear shift

1шт.

34

829-4420

THIN NUT,M20 x 2.5, Cl 05

1шт.

35

235666N2

PIN

roll, 6 x 40B/ST-DAC, 320B, DIN8752

1шт.

38

214162N0

ROD,THREADED

THREADED ROD piece, M20 x 40/52N

1шт.

40

800-1120

SNAP RING,M20, Ext

DIN471 FST

2шт.

41

214164N0

DOWEL

PIN plain, 10H8 x 16, DIN7ST

2шт.

42

935742N0

MOVING CLUTCH DOG

GATE gear shift

1шт.

44

935743N0

LEVER

swivel

1шт.

45

06655436

WASHER

thrust, S20 x 28, DIN988 ST

1шт.

46

211744N0

SEAL

O-RING, 20,22 x 3.53

1шт.

47

214166N0

SCREW

fill-in, M16 x 1.5

1шт.

49

214165N0

SCREW

locking, M16 x 1.5, DIN910 9SMNPB28K

1шт.

50

004101552

SEAL ASSY.

A16 x 22, DIN7603CU

2шт.

51

864-10045

HEX SOC SCREW,M10 x 45mm, Cl 8.8

Cheese head

8шт.

52

825-1410

NUT,M10, Cl 8

8шт.

53

06655163

SHIM

40 x 50 x 0.3, DIN988

1шт.

55

06608768

SHIM

35 x 45 x 1, DIN988

2шт.

57

244564N0

COTTER PIN

roll, 3 x 32A/ST, DIN8752

1шт.

58

233281N0

BEARING, BALL

grooved, 6208-2RS-C4

1шт.

59

06655460

WASHER

thrust, S48 x 60, DIN988

1шт.

63

06609045

SHIM

40 x 50 x 0.5, DIN988

1шт.

64

97020273

SHIM

40 x 50 x 1.O, DIN988ST

1шт.

Выбрано товаров: 52
