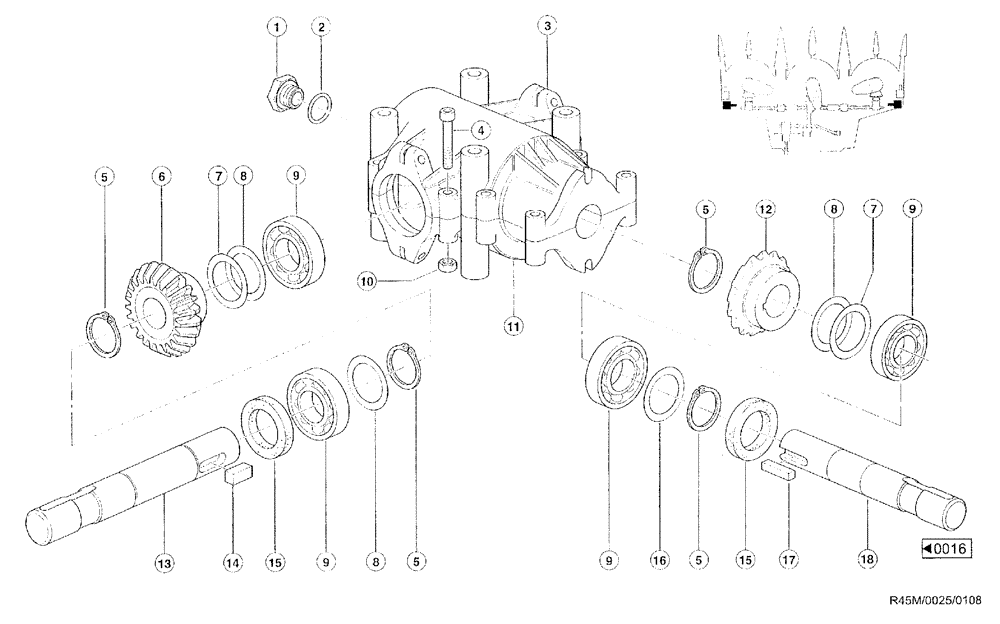

Запчасти Case IH RU450 (0025) - ANGULAR GEAR, LAID MAIZE AUGER (58) - ATTACHMENTS/HEADERS

1

933577N0

PLUG

oil, 3/8 ZOLL GAS

1шт.

2

656290N1

O-RING

17.12 x 2.62-N, DIN3771

1шт.

3

933554N0

HOUSING

1шт.

4

864-8045

HEX SOC SCREW,M8 x 45mm, Cl 8.8

cheese head

8шт.

5

800-5125

CIRCLIP,M25, External

RING snap, 25 x 2, DIN471 FST

4шт.

6

933552N0

CONE PINION

GEAR bevel, 23 teeth

1шт.

7

214362N0

SHIM

25 x 35 x 0.8

1шт.

8

06608622

SHIM

25 x 35 x 1, DIN988

1шт.

9

97060305

BALL BEARING

grooved ball, 6205, DIN625 SKF/

4шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

8шт.

11

933555N0

HOUSING

1шт.

12

933557N0

CONE PINION

17 teeth

1шт.

13

933556N0

SHAFT

1шт.

14

97031063

BUCKET TOOTH KEY

flat, A8 x 7 x 25, DIN6885 ST

1шт.

15

214222N0

SEAL

shaft, A25 x 47 x 7, DIN3760 NBR

2шт.

16

214361N0

SHIM

25 x 35 x 0.7

1шт.

17

059201N0

BUCKET TOOTH KEY

flat, A8 x 7 x 18, DIN6885

1шт.

18

933553N0

SHAFT

1шт.
