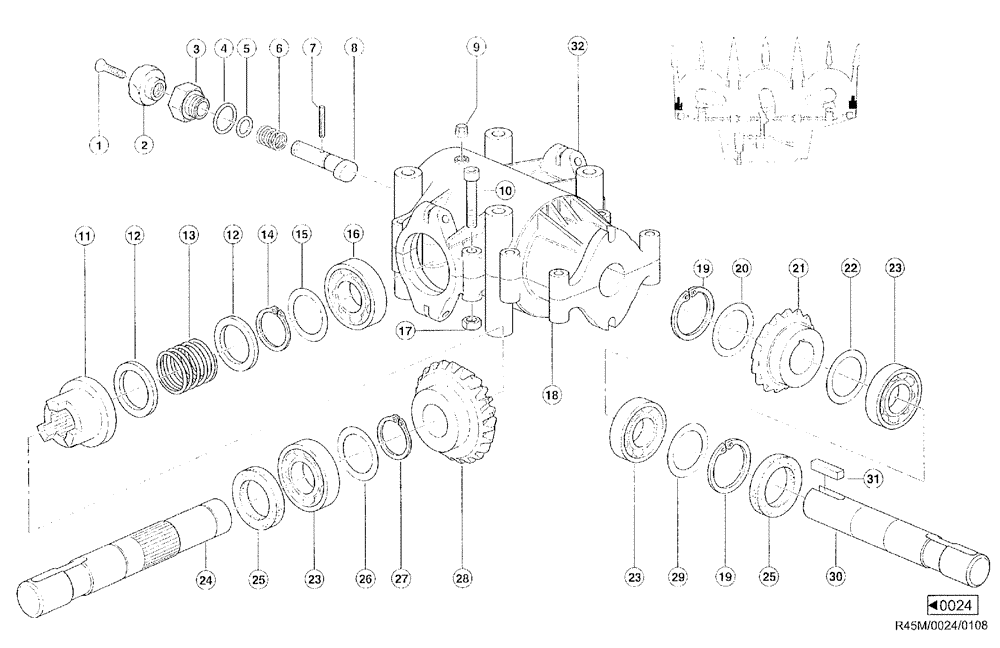

Запчасти Case IH RU450 (0024) - ANGULAR GEAR, LAID MAIZE AUGER (58) - ATTACHMENTS/HEADERS

1

214357N0

SCREW

self-tapping, ST2.2 x 13-C-H/A3C, DIN7981

1шт.

2

933563N0

FITTING

HANDLE ball

1шт.

3

933576N0

PLUG

oil, 3/8ZOLL GAS

1шт.

4

656290N1

O-RING

17.12 x 2.62-N, DIN3771

1шт.

5

212444N0

O-RING

6.75 x 1.78-N, DIN3771

1шт.

6

933565N0

SPRING

1шт.

7

235646N2

SPLIT PIN/SAFETY PIN

roll, 5 x 24B/ST-DAC 320B DIN8752

1шт.

8

933564N0

LEVER

1шт.

9

933107N0

PLUG

oil, 1/4 ZOLL GAS

1шт.

10

864-8045

HEX SOC SCREW,M8 x 45mm, Cl 8.8

cheese head

8шт.

11

933562N0

SLEEVE

1шт.

12

214359N0

SHIM

20 x 32 x 2.5

1шт.

13

933566N0

SPRING

1шт.

14

933578N0

RETAINER

Flange, SW20

1шт.

15

214358N0

SHIM

20 x 32 x 0.3

1шт.

16

003783382

BEARING

grooved ball, 6304, DIN625

1шт.

17

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

8шт.

18

933560N0

HOUSING

1шт.

19

800-1125

SNAP RING,M25, Ext

2шт.

20

06608622

SHIM

25 x 35 x 1, DIN988

1шт.

21

933557N0

CONE PINION

17 teeth

1шт.

22

214362N0

SHIM

25 x 35 x 0.8

1шт.

23

97060305

BALL BEARING

grooved ball, 6205, DIN625 SKF/

3шт.

24

933558N0

SHAFT

1шт.

25

214222N0

SEAL

shaft, A25 x 47 x 7, DIN3760 NBR

2шт.

26

214363N0

SHIM

25 x 35 x 0.9

1шт.

27

933561N0

O-RING

flange

1шт.

28

933559N0

CONE PINION

GEAR bevel, 23 teeth

1шт.

29

214361N0

SHIM

25 x 35 x 0.7

1шт.

30

933553N0

SHAFT

1шт.

31

059201N0

BUCKET TOOTH KEY

flat, A8 x 7 x 18, DIN6885

1шт.

32

933554N0

HOUSING

1шт.
