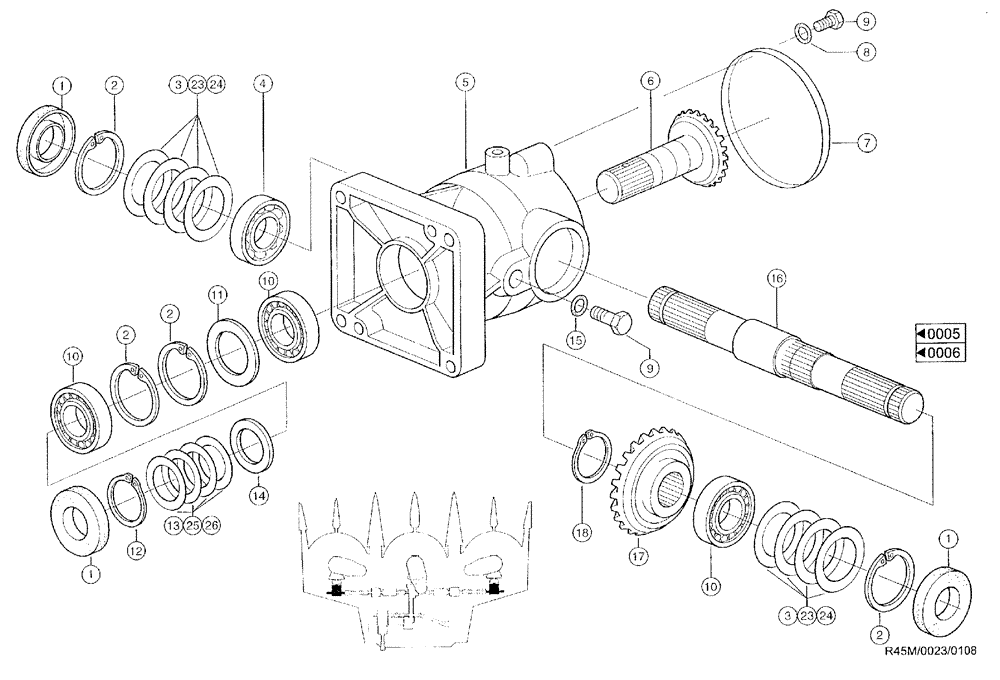

Запчасти Case IH RU450 (0023) - ANGULAR GEAR (58) - ATTACHMENTS/HEADERS

1

01118715

SEAL

shaft, AS35 x 72 x 10, DIN3760 NBR

6шт.

2

800-2172

SNAP RING

72 x 2.5, DIN472 FST

8шт.

3

03223425

SHIM

62 x 72 x 0.1

2шт.

4

03652067

BALL BEARING

grooved, 6207, DIN625 LE IN A/

2шт.

5

939587N0

HOUSING

2шт.

6

935012N0

PINION SHAFT

15 teeth MA4.87

2шт.

7

213903N0

COVER

120 x 12

2шт.

8

04101503

GASKET

SEAL, A16 x 20, DIN7603 CU

2шт.

9

06103327

VANEUM GAUGE

SCREW locking, AM16 x 1.5, DIN7604ST

6шт.

10

235987N0

BEARING, ROLLER

taper, 30207, J2DIN720

6шт.

11

214018N0

WASHER

SHIM, 62 x 72 x 2.0/ST2K, DIN988

6шт.

12

800-1135

SNAP RING,M35, Ext

DIN471 FST

2шт.

13

97022666

SHIM

35 x 45 x 0.1, DIN988ST

2шт.

14

06608768

SHIM

35 x 45 x 1, DIN988

2шт.

15

004101552

SEAL ASSY.

A16 x 22, DIN7603CU

4шт.

16

939577N0

GEAR SHAFT

2шт.

17

935014N0

CONE PINION

GEAR bevel, 23 teeth MA4.87

2шт.

18

800-1139

SNAP RING,M39, Ext

snap, 39 x 1.75, DIN471 FST

2шт.

23

03223433

SHIM

62 x 72 x 0.3

2шт.

24

03223441

SHIM

62 x 72 x 0.5

2шт.

25

97022664

SHIM

35 x 45 x 0.3, DIN988 ST

2шт.

26

97022212

SHIM

35 x 45 x 0.5, DIN988 ST

2шт.
