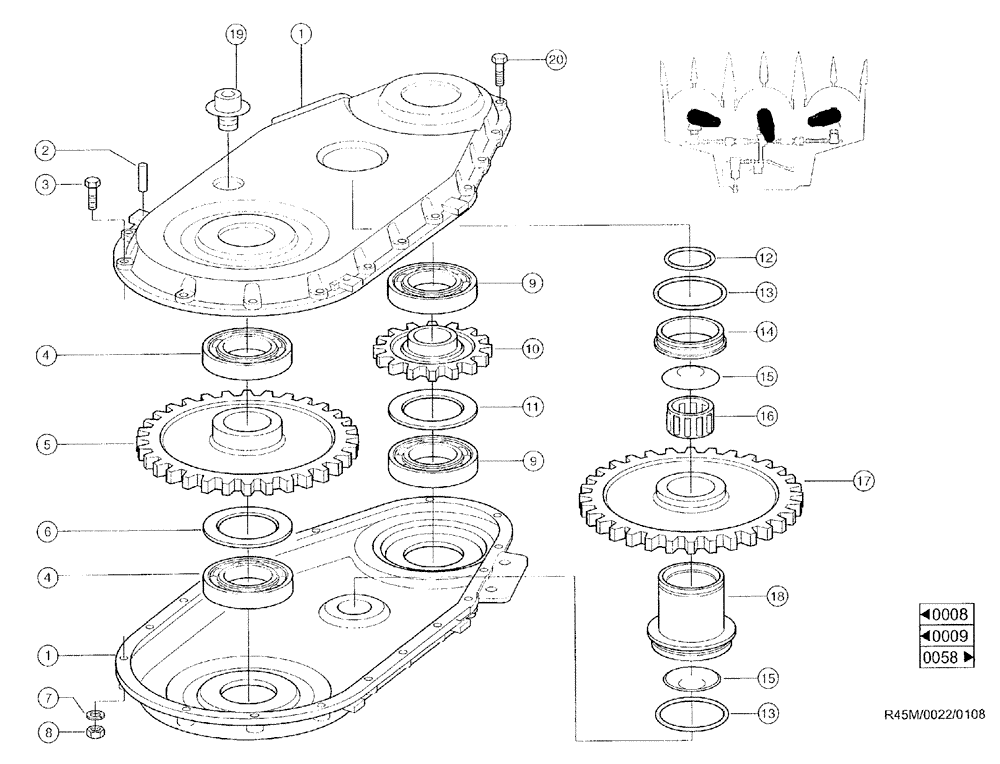

Запчасти Case IH RU450 (0022) - SCRAPER GEARBOX (58) - ATTACHMENTS/HEADERS

1

939591N0

HOUSING

6шт.

2

837-10040

DOWEL,M10 x 40

plain, 10M6 x 40, DIN6325 ST

9шт.

3

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

45шт.

4

211284N0

BEARING, BALL

grooved, 6014-2RS

6шт.

5

935064N0

PINION

GEAR spur, 32 teeth

3шт.

6

213782N0

RING

BEARING cover, 6014 ZAV

3шт.

7

234888N0

WASHER

separated lock, A8,4 DIN6798

114шт.

8

825-1408

NUT,M8, Cl 8

57шт.

9

239257N0

BEARING, BALL

grooved, 6212-2RS-C3

6шт.

10

935062N0

PINION

GEAR spur, 16 teeth

3шт.

11

935026N0

PACKING RING

seal

3шт.

12

212626N0

O-RING

60 x 2, DIN3771 N-NBR70

3шт.

13

214052N0

O-RING

75 x 2.5, DIN3771 N-NBR70

6шт.

14

935212N0

BUSHING

SLEEVE

6шт.

15

237831N0

VANEUM GAUGE

DISK closing, 50 DIN470

6шт.

16

214053N0

BEARING, NEEDLE

K65 x 70 x 30

3шт.

17

935063N0

PINION

GEAR spur, 32 teeth

3шт.

18

935211N0

BUSHING

SLEEVE

3шт.

19

06109445

VANEUM GAUGE

SCREW locking, M26 x 1.5, DIN906ST

3шт.

20

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

12шт.
