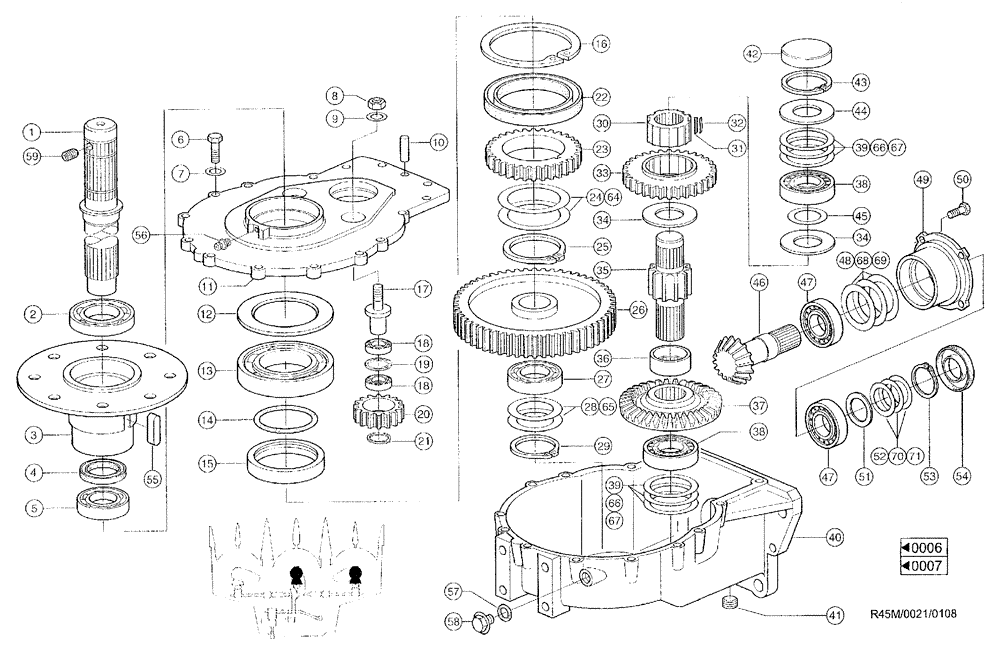

Запчасти Case IH RU450 (0021) - ROTOR DRIVE, LEFT (58) - ATTACHMENTS/HEADERS

1

939584N0

SHAFT

2шт.

2

244275N0

BEARING, BALL

grooved, 6211-2RS

2шт.

3

939595N0

FLANGE

shaft

2шт.

4

01126057

SEAL

shaft, A50 x 75 x 10, DIN3760NBR

2шт.

5

03661767

BALL BEARING

grooved, 6010, DIN625

2шт.

6

663426N1

CAPSCREW

BOLT hex, M10 x 40 ZA

30шт.

7

06650013

WASHER

B10

30шт.

8

825-1416

NUT,M16, Cl 8

2шт.

9

239391N0

WASHER

WASHER, A16

2шт.

10

242772N0

DOWEL

PIN plain, 10M6 x 24, DIN6325ST

4шт.

11

939594N0

HOUSING

bearing

2шт.

12

214022N0

RING

BEARING cover, 16020 AV

2шт.

13

214007N0

BEARING, BALL

grooved, 6020-2RS

2шт.

14

946425N0

SEAL

O-RING, 90 x 2, DIN3771 N-NBR70

2шт.

15

935029N0

BUSHING

SLEEVE

2шт.

16

800-21150

SNAP RING,M150, Int

150 x 4, DIN472 FST

2шт.

17

935019N0

SHOULDERED SHAFT

AXLE

2шт.

18

235896N0

BEARING, BALL

grooved, 6005, DIN625

4шт.

19

800-2147

SNAP RING,M47, Int

2шт.

20

935003N0

PINION

GEAR spur, 17 teeth, MN4.00

2шт.

21

800-5125

CIRCLIP,M25, External

RING snap, 25 x 2, DIN471 FST

2шт.

22

214012N0

SEAL

shaft, A115 x 150 x 12, DIN3760 NBR

2шт.

23

935005N0

PINION

GEAR spur, 34 teeth, MN 4.00

2шт.

24

233009N0

DISC

SHIM, 100 x 120 x 0.1/ST2K, DIN988

4шт.

25

800-11100

SNAP RING,M100, Ext

100 x 3, DIN471 FST

2шт.

26

935002N0

PINION

GEAR spur, 53 teeth MN 4.50

2шт.

27

03652122

BEARING

grooved ball, 6209, DIN625

2шт.

28

06655001

SHIM

45 x 55 x 0.1, DIN988

2шт.

29

800-1145

SNAP RING,M45, Ext

x 1.75 DIN 471 FST

2шт.

30

935061N0

RING, COUPLING

HUB, F5/1

2шт.

31

935090N0

BUCKET TOOTH KEY

8шт.

32

935030N0

SPRING, LEAF

8шт.

33

935004N0

PINION

GEAR spur, 34 teeth MN 4.00

2шт.

34

935024N0

DISC

WASHER

4шт.

35

935017N0

PINION SHAFT

gear spur, 11 teeth MN4.50

2шт.

36

935028N0

BUSHING

SLEEVE

2шт.

37

935013N0

CONE PINION

GEAR bevel, 34 teeth MA4.31

2шт.

38

235988N0

BEARING ASSY

taper, 30208 J2/Q DIN720

4шт.

39

06635297

SHIM

SHIM, 72 x 80 x 0.1, DIN988

2шт.

40

939586N0

HOUSING

2шт.

41

06109486

PLUG

SCREW locking, M16 x 1.5, DIN906 ST

2шт.

42

939596N0

VANEUM GAUGE

COVER, 80 x 8

2шт.

43

800-2180

SNAP RING,M80, Int

2шт.

44

06635264

COOLER, OIL

SHIM, 72 x 80 x 1, DIN988

4шт.

45

06609045

SHIM

40 x 50 x 0.5, DIN988

2шт.

46

935011N0

PINION SHAFT

16 teeth MA4.31

2шт.

47

235987N0

BEARING, ROLLER

taper, 30207 J2 DIN720

4шт.

48

03223425

SHIM

62 x 72 x 0.1

2шт.

49

939593N0

HOUSING, BEARING

2шт.

50

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

8шт.

51

06608768

SHIM

35 x 45 x 1, DIN988

2шт.

52

97022666

SHIM

35 x 45 x 0.1, DIN988ST

2шт.

53

800-1135

SNAP RING,M35, Ext

DIN471 FST

2шт.

54

01118764

SEAL

shaft, A35 x 72 x 7, DIN3760 NBR

2шт.

55

214020N0

BUCKET TOOTH KEY

flat, B14 x 9 x 20/C45K, DIN6885

4шт.

56

179838N0

FITTING

NIPPLE grease

2шт.

57

04101503

GASKET

SEAL, A16 x 20, DIN7603CU

2шт.

58

97014849

VANEUM GAUGE

SCREW closing, M16 x 1.5, DIN908 5.8

2шт.

59

214051N0

PIN, GROOVED

PIN, GROOVE DOWEL notched, 5 x 16/ST, DIN1472

2шт.

64

239174N0

DISC

SHIM, 100 x 120 x 0.3/ST2K, DIN988

2шт.

65

06655018

SHIM

45 x 55 x 0.3, DIN988

2шт.

66

211861N0

WASHER

SHIM, 70 x 79 x 0.2

2шт.

67

06635272

COOLER, OIL

SHIM 72 x 80 x 0.5, DIN988

2шт.

68

03223441

SHIM

62 x 72 x 0.5

2шт.

69

03223433

SHIM

62 x 72 x 0.3

2шт.

70

97022212

SHIM

35 x 45 x 0.5, DIN988ST

2шт.

71

97022664

SHIM

35 x 45 x 0.3, DIN988 ST

2шт.
