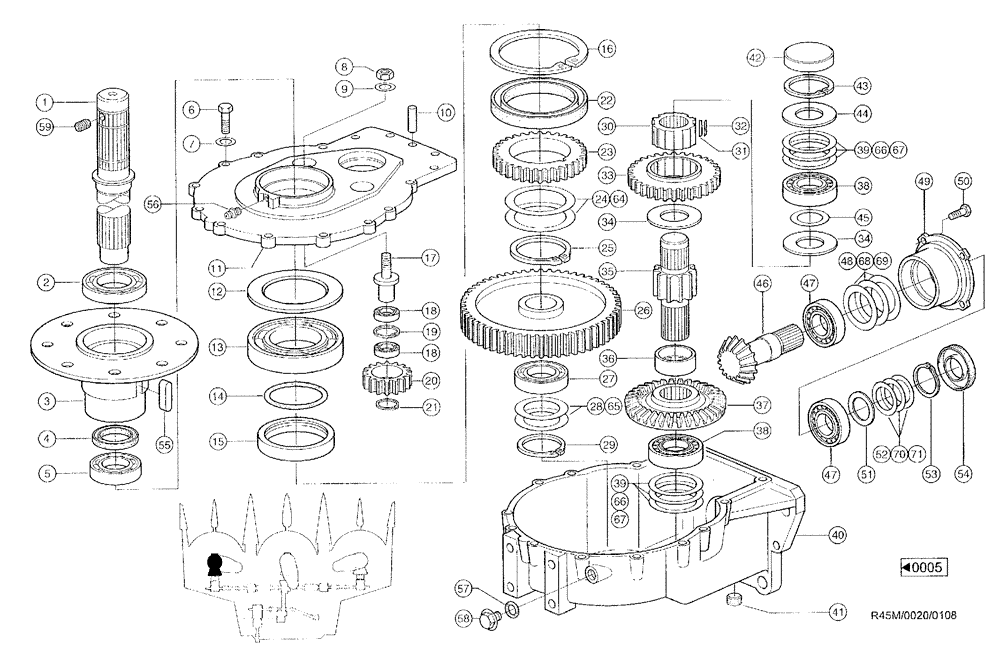

Запчасти Case IH RU450 (0020) - ROTOR DRIVE, RIGHT, MIDDLE (58) - ATTACHMENTS/HEADERS

1

939584N0

SHAFT

1шт.

2

244275N0

BEARING, BALL

grooved, 6211-2RS

1шт.

3

939595N0

FLANGE

shaft

1шт.

4

01126057

SEAL

seal, A50 x 75 x 10, DIN3760 NBR

1шт.

5

03661767

BALL BEARING

grooved, 6010, DIN625

1шт.

6

663426N1

CAPSCREW

BOLT hex, M10 x 40 ZA

15шт.

7

06650013

WASHER

B10

15шт.

8

825-1416

NUT,M16, Cl 8

1шт.

9

239391N0

WASHER

WASHER, A16

1шт.

10

242772N0

DOWEL

PIN plain, 10M6 x 24, DIN6325 ST

2шт.

11

939594N0

HOUSING

bearing

1шт.

12

214022N0

RING

BEARING cover,16020 AV

1шт.

13

214007N0

BEARING, BALL

grooved, 6020-2RS

1шт.

14

946425N0

SEAL

O-RING, 90 x 2, DIN3771 N-NBR70

1шт.

15

935029N0

BUSHING

SLEEVE

1шт.

16

800-21150

SNAP RING,M150, Int

150 x 4, DIN472 FST

1шт.

17

935019N0

SHOULDERED SHAFT

AXLE

1шт.

18

235896N0

BEARING, BALL

grooved, 6005 DIN625

2шт.

19

800-2147

SNAP RING,M47, Int

1шт.

20

935003N0

PINION

GEAR spur, 17 teeth MN 4.00

1шт.

21

800-5125

CIRCLIP,M25, External

RING snap, 25 x 2, DIN471 FST

1шт.

22

214012N0

SEAL

shaft, A115 x 150 x 12, DIN3760 NBR

1шт.

23

935005N0

PINION

GEAR spur, 34 teeth MN 4.00

1шт.

24

233009N0

DISC

SHIM, 100 x 120 x 0.1/ST2K, DIN988

1шт.

25

800-11100

SNAP RING,M100, Ext

100 x 3, DIN471 FST

1шт.

26

935002N0

PINION

GEAR spur, 53 teeth MN 4.50

1шт.

27

03652122

BEARING

grooved, 6209, DIN625

1шт.

28

06655001

SHIM

45 x 55 x 0.1, DIN988

2шт.

29

800-1145

SNAP RING,M45, Ext

x 1.75 DIN 471 FST

1шт.

30

935061N0

RING, COUPLING

HUB, F5/1

1шт.

31

935090N0

BUCKET TOOTH KEY

4шт.

32

935030N0

SPRING, LEAF

4шт.

33

935004N0

PINION

GEAR spur, 34 teeth MN 4.00

1шт.

34

935024N0

DISC

WASHER

2шт.

35

935017N0

PINION SHAFT

gear spur, 11 teeth MN4.50

1шт.

36

935028N0

BUSHING

SLEEVE

1шт.

37

935013N0

CONE PINION

GEAR bevel, 34 teeth MA4.31

1шт.

38

235988N0

BEARING ASSY

taper, 30208 J2/Q DIN720

2шт.

39

06635297

SHIM

SHIM, 72 x 80 x 0.1, DIN988

1шт.

40

939586N0

HOUSING

1шт.

41

06109486

PLUG

SCREW locking, M16 x 1.5, DIN906ST

1шт.

42

939596N0

VANEUM GAUGE

COVER, 80 x 8

1шт.

43

800-2180

SNAP RING,M80, Int

1шт.

44

06635264

COOLER, OIL

SHIM, 72 x 80 x 1, DIN988

2шт.

45

06609045

SHIM

SHIM, 40 x 50 x 0.5, DIN988

1шт.

46

935011N0

PINION SHAFT

16 teeth MA4.31

1шт.

47

235987N0

BEARING, ROLLER

taper, 30207 J2 DIN720

2шт.

48

03223425

SHIM

62 x 72 x 0.1

1шт.

49

939593N0

HOUSING, BEARING

1шт.

50

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

51

06608768

SHIM

35 x 45 x 1, DIN988

1шт.

52

97022666

SHIM

35 x 45 x 0.1, DIN988 ST

1шт.

53

800-1135

SNAP RING,M35, Ext

DIN471 FST

1шт.

54

01118764

SEAL

shaft, A35 x 72 x 7, DIN3760 NBR

1шт.

55

214020N0

BUCKET TOOTH KEY

flat, B14 x 9 x 20/C45K, DIN6885

2шт.

56

244946N0

LUBE NIPPLE

1шт.

57

04101503

GASKET

SEAL, A16 x 20, DIN7603CU

1шт.

58

97014849

VANEUM GAUGE

SCREW closing M16 x 1.5, DIN908 5.8

1шт.

59

214051N0

PIN, GROOVED

PIN, GROOVE DOWEL notched, 5 x 16/ST, DIN1472

1шт.

64

239174N0

DISC

SHIM, 100 x 120 x O.3/ST2K, DIN988

1шт.

65

06655018

SHIM

45 x 55 x 0.3, DIN988

1шт.

66

211861N0

WASHER

SHIM, 70 x 79 x 0.2

1шт.

67

06635272

COOLER, OIL

SHIM, 72 x 80 x 0.5, DIN988

1шт.

68

03223441

SHIM

62 x 72 x 0.5

1шт.

69

03223433

SHIM

62 x 72 x 0.3

1шт.

70

97022212

SHIM

35 x 45 x 0.5, DIN988 ST

1шт.

71

97022664

SHIM

35 x 45 x 0.3, DIN988 ST

1шт.
