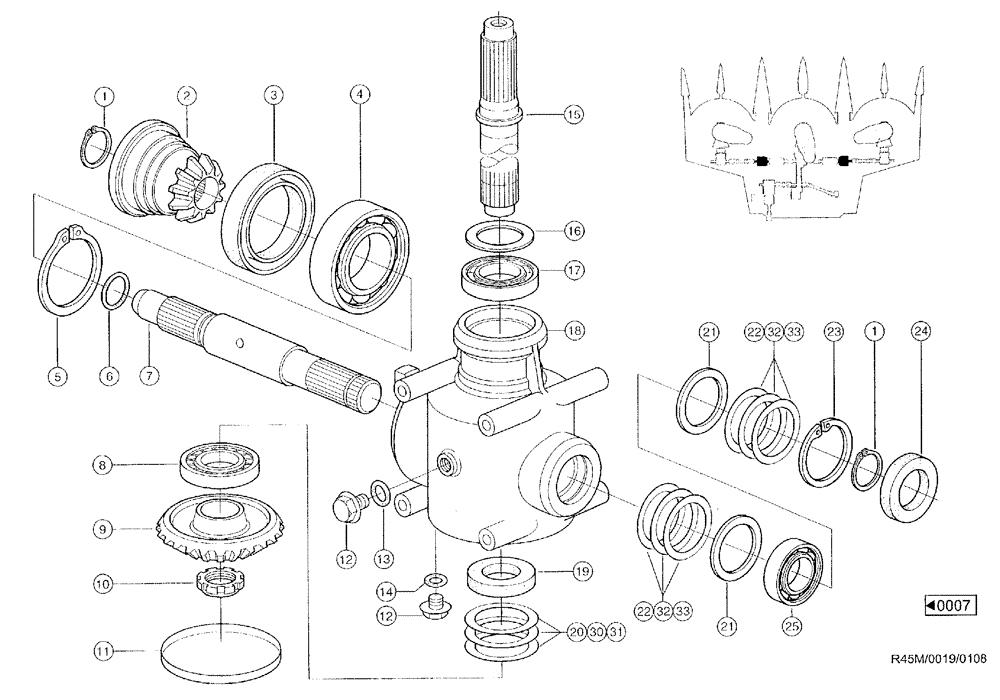

Запчасти Case IH RU450 (0019) - GEARBOX, FEED ROLLER (58) - ATTACHMENTS/HEADERS

1

800-1132

SNAP RING,M32, Ext

DIN471 FST

2шт.

2

935016N0

CONE PINION

GEAR bevel, 11 teeth MA6.35

1шт.

3

214011N0

SEAL

shaft, AS80 x 115 x 10, DIN3760 NBR

1шт.

4

243113N0

BEARING ASSY

grooved, 6015 DIN25

1шт.

5

800-1175

SNAP RING,M75, Ext

DIN471 FST

1шт.

6

238449N0

SEAL

O-RING, 30 x 2, DIN3771 N-NBR70

1шт.

7

939582N0

SHAFT

1шт.

8

235988N0

BEARING ASSY

taper, 30208 J2/Q DIN720

1шт.

9

935015N0

CONE PINION

GEAR bevel, 20 teeth MA 6.35

1шт.

10

631694N0

SLOTTED NUT

grooved, M35 x 1.5, DIN70852 17H

1шт.

11

935020N0

VANEUM GAUGE

COVER, 130 x 12

1шт.

12

06103327

VANEUM GAUGE

SCREW locking AM16 x 1.5, DIN7604ST

3шт.

13

004101503

GASKET

SEAL, A16 x 20, DIN7603CU

2шт.

14

004101552

SEAL ASSY.

SEAL, A16 x 22, DIN7603CU

1шт.

15

939581N0

SHAFT

1шт.

16

212115N0

RING

BEARING cover, 6208 ZAV

1шт.

17

238504N0

BEARING, BALL

grooved, 6208-2RS

1шт.

18

939590N0

HOUSING

1шт.

19

212459N0

SEAL

shaft, BASL 40 x 72 x 10

1шт.

20

06635272

COOLER, OIL

SHM, 72 x 80 x 0.5, DIN988

1шт.

21

97022214

SHIM

SHIM, 56 x 72 x 1.0, DIN988ST

1шт.

22

06623968

SHIM

SHIM, 56 x 72 x 0.5, DIN988

1шт.

23

800-2172

SNAP RING

72 x 2.5, DIN472 FST

1шт.

24

01118715

SEAL

shaft, AS35 x 72 x 10, DIN3760 NBR

1шт.

25

03652067

BALL BEARING

grooved, 6207 DIN625 LE IN A/

1шт.

30

06635280

COOLER, OIL

SHIM, 72 x 80 x 0.3, DIN988

1шт.

31

06635297

SHIM

SHIM, 72 x 80 x 0.1, DIN988

1шт.

32

97020293

RING

SHIM, 56 x 72 x 0.3, DIN988 ST

1шт.

33

97022190

SHIM

56 x 72 x 0.1, DIN988ST

1шт.
