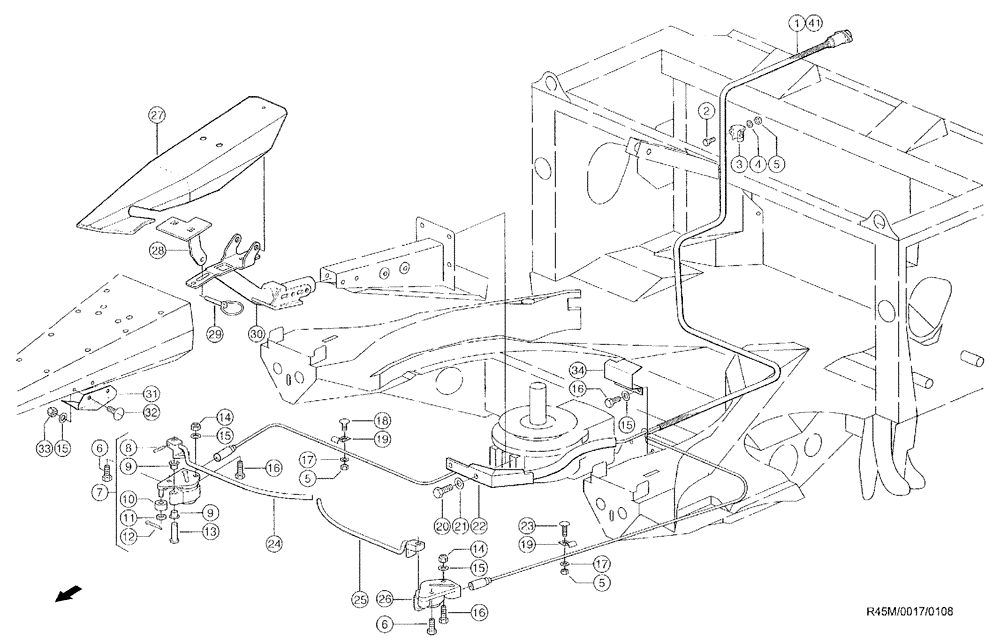

Запчасти Case IH RU450 (0017) - AUTOPILOT (58) - ATTACHMENTS/HEADERS

1

991331N1

HARNESS

LOOM wiring, AUTOPILOT

1шт.

2

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

3

050552N0

CABLE CLIP

1шт.

4

235131N1

LOCK WASHER

spring, 6

2шт.

5

825-1406

NUT,M6, Cl 8

10шт.

6

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

7

050574N2

SENSOR

system, rh, R.H.

1шт.

8

237606N2

LOCK PIN

pin, 5 x 30 B/ST-DAC 320B DIN8752

2шт.

9

008504N0

BUSHING

SLEEVE, 13.1 x 15.1 x 14

4шт.

10

050583N0

BUSHING

D=30 x 12.5 x 15

2шт.

11

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

12

06402570

PIN, SPLIT (COTTER)

PIN, COTTER splint, 3.2 x 18 DIN94 ST

2шт.

13

050615N0

LARGE PIN

PIN, LARGE BOLT flange

2шт.

14

825-1408

NUT,M8, Cl 8

2шт.

15

06577028

SPECIAL WASHER

M8

2шт.

16

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

17

03222850

WASHER

A6

11шт.

18

665564N1

SCREW

flat, round head, M6 x 12

5шт.

19

213976N0

CLIP

attaching, 1 x 6-6.2 DIN72571 ST

8шт.

20

239160N0

SCREW

BOLT hex, M12 x 35, MK/8.8-A3C, ISO4017

2шт.

21

06650038

WASHER

A12

2шт.

22

991323N2

COLUMN JACKET

TUBE cable

1шт.

23

238923N1

SCREW

flat, round head, M6 x 25

3шт.

24

050686N1

LEVER

feeler, R.H.

1шт.

25

050687N1

LEVER

feeler, L.H.

1шт.

26

03267532

SENSOR

system, rh 1

1шт.

27

991716N5

POINT

intermed

1шт.

28

991319N1

ANGLE

5 x 84 x 161

1шт.

29

215165N0

LINCH PIN

8 x 42, DIN11023ST

1шт.

30

996315N1

SUPPORT

BRACKET

1шт.

31

991537N0

GUARD

plate, 2 x 120 x 138

1шт.

32

003780507

SCREW

flat, round head, M8 x 16 DIN603 8.8

2шт.

33

238132N0

LOCK NUT

8/8-A3C

2шт.

34

990909N0

SUPPORT

CAP, 1 x 100 x 130

1шт.

41

992320N0

CABLE EXTENSION

1шт.
