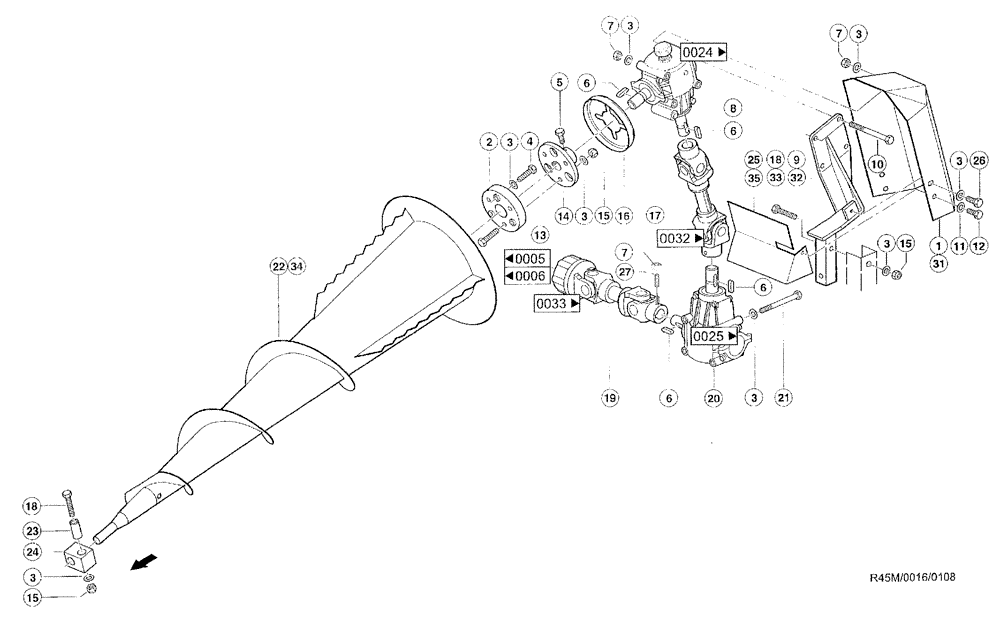

Запчасти Case IH RU450 (0016) - LAID MAIZE AUGER (58) - ATTACHMENTS/HEADERS

1

996685N1

SHEET

GUARD hood, L.H., 1.5 x 432 x 552

1шт.

2

608014N1

LARGE PLATE

PLATE, LARGE DISK coupling

2шт.

3

06650021

WASHER

A10

32шт.

4

211042N0

SCREW

BOLT hex, M10 x 40, MK/8.8-A3C, ISO4017

6шт.

5

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

6

03501205

BUCKET TOOTH KEY

flat, A8 x 7 x 36, DIN6885

8шт.

7

825-1410

NUT,M10, Cl 8

8шт.

8

996724N0

DRIVE, ANGLE

gear, L-25A ABSCHALTBAR

2шт.

9

996646N0

HOLDER

SUPPORT, L.H.

1шт.

10

814-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

8шт.

11

06577028

SPECIAL WASHER

M8

6шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

6шт.

13

235534N1

SCREW

BOLT hex, M10 x 50 x 29+2, ISO4014 8.8

6шт.

14

912795N0

DISC

WASHER

2шт.

15

237947N0

NUT

lock, 10

10шт.

16

912813N0

GUARD

2шт.

17

991127N1

COUPLING

SHAFT universal drive

2шт.

18

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

4шт.

19

991126N0

COUPLING

SHAFT universal drive

2шт.

20

996723N0

TRANSMISSION

GEAR angular, L-25A

2шт.

21

814-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

8шт.

22

992290N1

ROLL

DIVIDER rotary, L.H.

1шт.

23

991183N0

BUSHING

SLEEVE, 16H9 x 41

2шт.

24

912800N0

BEARING

40 x 40 x 50

2шт.

25

996687N0

SHEET

INSERT, L.H.

1шт.

26

237384N0

BOLT

Hex, M10 x 25RS

2шт.

27

214237N0

SPLIT PIN/SAFETY PIN

threaded, M10 x 25/45H, DIN916

2шт.

31

996686N1

SHEET

GUARD hood, R.H., 1.5 x 432 x 552

1шт.

32

996645N0

HOLDER

SUPPORT, R.H.

1шт.

33

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

4шт.

34

992292N1

ROLL

DIVIDER rotary, R.H.

1шт.

35

996688N0

SHEET

INSERT, R.H.

1шт.
