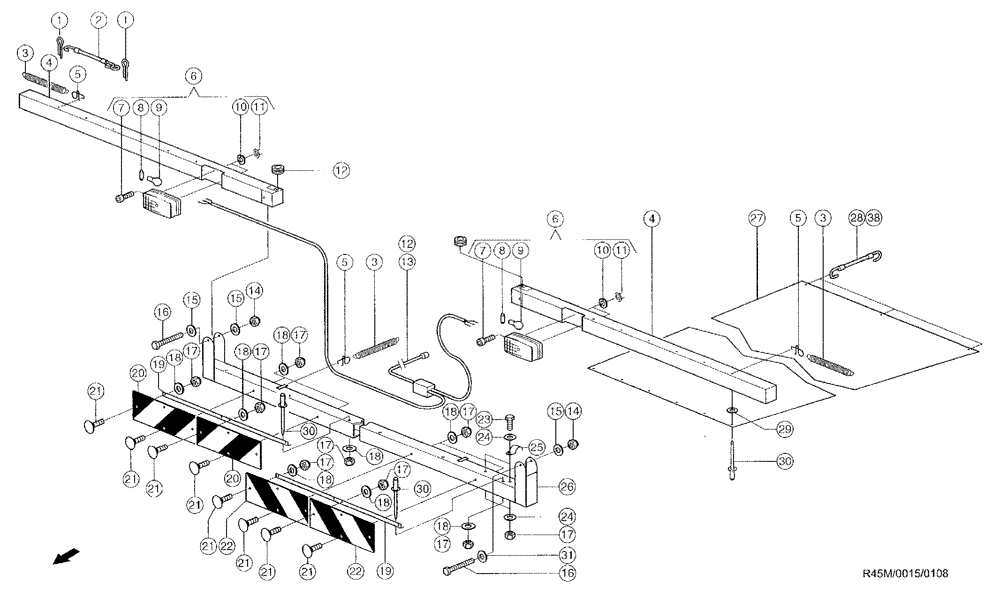

Запчасти Case IH RU450 (0015) - GUARD (58) - ATTACHMENTS/HEADERS

1

06402513

PIN, SPLIT (COTTER)

PIN, COTTER splint, 4 x 18, DIN94ST

4шт.

2

991434N0

ROPE

rubber, 8 x 380

4шт.

3

923066N0

TENSION SPRING

4шт.

4

991759N0

BAR

GUARD outer

2шт.

5

900881N0

HOOK

spring, D=3.2 x 42

4шт.

6

622898N0

LIGHT ASSY.

position, 2BE

2шт.

7

06007698

SCREW

cheese head, M4 x 16, DIN84 4.8

2шт.

8

177906N0

BULB

SOFFIT, L 12V5W DIN72601

2шт.

9

233546N0

LAMP

filament, RL 12V21W DIN72601

2шт.

10

236489N1

WASHER

4

2шт.

11

825-1404

NUT,M4, Cl 8

2шт.

12

623341N0

CABLE SHEATH

ring, B10 x 14 x 2

2шт.

13

991386N2

HARNESS

LOOM wiring, BEGRENZUNGSLEUCHTE

1шт.

14

238132N0

LOCK NUT

8/8-A3C

2шт.

15

06577028

SPECIAL WASHER

M8

4шт.

16

814-8110

BOLT,Hex, M8 x 1.25 x 110mm, Cl 8.8

BOLT hex, M8 x 110, ISO4014 8.8

2шт.

17

03267411

NUT

lock, 6

24шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

12шт.

19

991455N1

ANGLE

2 x 36.5 x 824

2шт.

20

991458N0

WARNING SIGN

console, K2 141 x 423, DIN110

2шт.

21

665564N1

SCREW

flat, round head, M6 x 12

12шт.

22

991457N0

WARNING SIGN

console, K1 141 x 423, DIN110

2шт.

23

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

24

03222850

WASHER

A6

4шт.

25

215411N0

CLIP

pipe, D1-10 x 15W1-1, DIN3016

2шт.

26

991770N0

BAR

GUARD middle

1шт.

27

991771N0

CANVAS

CURTAIN safety, 1.1 x 1355 x 1435

2шт.

28

991433N0

ROPE

rubber, 8 x 240

6шт.

29

895-25005

WASHER,M5 x 15 x 1.6

DIN9021 140HV

12шт.

30

237853N0

RIVET

A4.8 x 10, DIN7337ST

18шт.

31

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

8.4, DIN9021 140HV

4шт.

38

964923N4

ROPE

rubber, 8 x 320

2шт.
