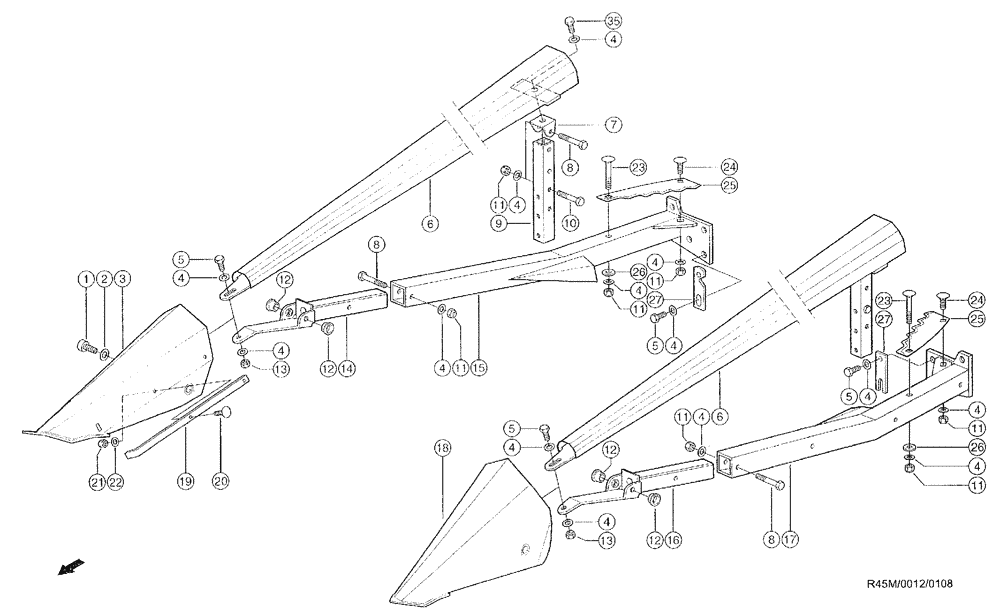

Запчасти Case IH RU450 (0012) - POINT, OUTER (58) - ATTACHMENTS/HEADERS

1

962-12030

HEX SOC SCREW,M12 x 30mm, Cl 10.9

cheese head, M12 x 30, DIN912 10.9

4шт.

2

242824N1

WASHER

RING locking, VSKZ12

4шт.

3

992264N2

POINT

TOP divider, R.H.

1шт.

4

06650021

WASHER

A10

8шт.

5

233000N0

SCREW

BOLT hex, M10 x 25, MK/8.8-A3C, ISO4017

4шт.

6

992288N0

DEFLECTOR

PLATE divider, outer

2шт.

7

991112N0

ANGLE

2шт.

8

814-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 8.8

BOLT hex, M10 x 65, ISO4014 8.8

2шт.

9

991108N1

TUBE

RO 40 x 40 x 4

2шт.

10

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

2шт.

11

237947N0

NUT

lock, 10

4шт.

12

913014N0

BUSHING

SLEEVE, 32H9 x 15

2шт.

13

825-1410

NUT,M10, Cl 8

2шт.

14

992283N1

HOLDER

SUPPORT, R.H.

1шт.

15

992281N1

TUBE

R.H.

1шт.

16

992274N1

HOLDER

SUPPORT, L.H.

2шт.

17

992271N1

TUBE

L.H.

1шт.

18

992263N2

POINT

TOP divider, L.H.

1шт.

19

992149N0

WEAR PLATE

strip, 4 x 20 x 341

2шт.

20

007751242

SCREW

flat, round head, M6 x 16, DIN603 8.8

4шт.

21

03267411

NUT

lock, 6

4шт.

22

03222850

WASHER

A6

4шт.

23

236464N0

SCREW

flat, round head, M10 x 70, DIN603 8.8

2шт.

24

07755576

SCREW

flat, round head, M10 x 25, DIN603 8.8

2шт.

25

996637N0

KNIFE

2шт.

26

234326N0

WASHER

11 x 26 x 3

2шт.

27

992868N1

BLOCK

SHIM, 5 x 25 x 100

2шт.

35

233396N0

SCREW

hex, M10 x 30, MK/8.8-A3C, ISO4017

4шт.
