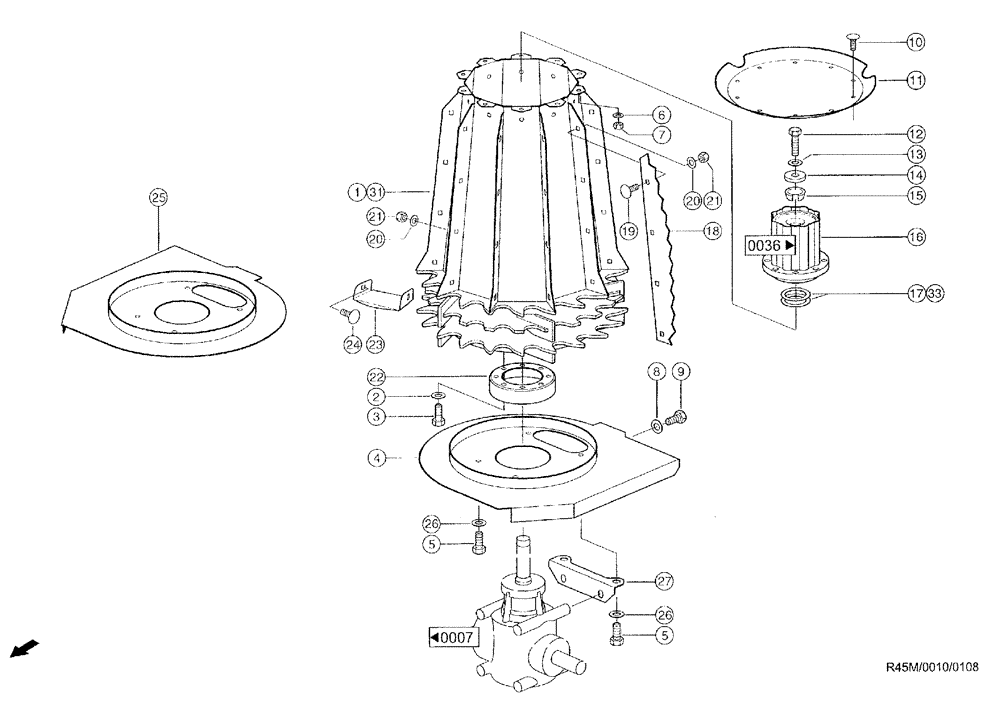

Запчасти Case IH RU450 (0010) - FEED ROLLER (58) - ATTACHMENTS/HEADERS

1

992435N1

CONE

CONE, R.H.

1шт.

2

06650021

WASHER

A10

20шт.

3

233000N0

SCREW

BOLT hex, M10 x 25, MK/8.8-A3C, ISO4017

16шт.

4

999030N0

FLOOR, L.H.

1шт.

5

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

6

239392N0

DISC

WASHER, B6

10шт.

7

03267411

NUT

lock, 6

10шт.

8

06650038

WASHER

A12

4шт.

9

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

4шт.

10

215429N0

CARRIAGE BOLT

flat, round head, M6 x 12 x 6, DIN603 8.8

10шт.

11

992439N0

PROTECTIVE COVER

cone, D369 x 1.5

2шт.

12

215423N0

CAPSCREW

BOLT hex, M12 x 45, MK DIN933 8.8

2шт.

13

239395N1

WASHER

B12

2шт.

14

03222553

WASHER

13 x 40 x 6

2шт.

15

724283N0

CENTERING RING

CONE, D=30

2шт.

16

991036N0

COUPLING

CLUTCH overload, M=1000NM

2шт.

17

233627N1

DISC

SHIM, 40 x 55 x 2

1шт.

18

990957N2

BAR

CONE segment, 3 x 72 x 479

20шт.

19

234953N0

SCREW

flat, round head, M8 x 20 x 13 DIN603 8.8

80шт.

20

06577028

SPECIAL WASHER

M8

80шт.

21

238132N0

LOCK NUT

8/8-A3C

80шт.

22

992629N0

COVER

2шт.

23

996178N0

SUPPORT

BRACKET, 2 x 70 x 175

20шт.

24

07753211

SCREW

flat, round head, M8 x 25, DIN603 8.8

20шт.

25

999028N0

FLOOR, R.H.

1шт.

26

06650013

WASHER

B10

8шт.

27

999024N0

ANGLE support, 4 x 84 x 210

2шт.

31

992438N1

CONE

CONE, L.H.

1шт.

33

233626N1

DISC

SHIM, 40 x 55 x 1

1шт.
