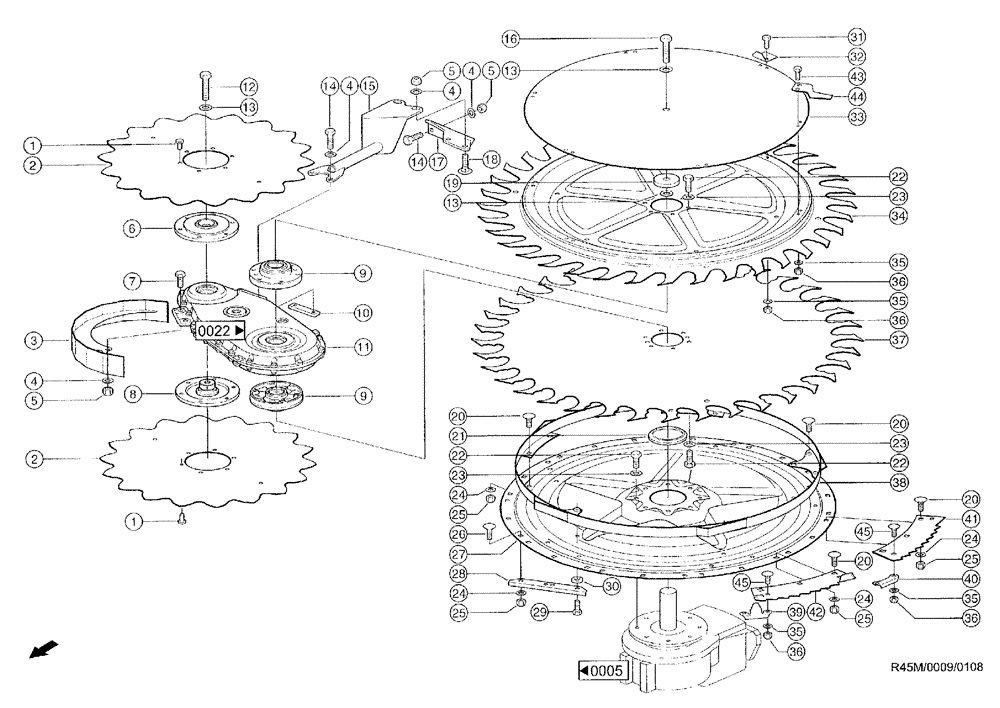

Запчасти Case IH RU450 (0009) - INTAKE DISC, LEFT (58) - ATTACHMENTS/HEADERS

1

213920N0

RIVET

countersunk, 8 x 20, DIN661 ST

12шт.

2

991594N4

NOTCHED DISK

scraper, D=730 x 5

2шт.

3

996622N0

SCRAPER

1шт.

4

06650038

WASHER

A12

6шт.

5

238234N0

NUT

lock, 12

2шт.

6

991583N1

FLANGE

1шт.

7

239049N0

SCREW

BOLT hex, M12 x 30, MK/8.8-A3C, ISO4017

2шт.

8

991584N2

FLANGE

1шт.

9

991585N0

FLANGE

2шт.

10

991397N1

SLAT

20 x 10 x 105

1шт.

11

991576N0

TRANSMISSION

SCRAPER gear box

1шт.

12

06364282

BOLT

BOLT hex, M16 x 1.5 x 65, ISO8765 8.8

1шт.

13

239391N0

WASHER

WASHER, A16

1шт.

14

239160N0

SCREW

BOLT hex, M12 x 35, MK/8.8-A3C, ISO4017

6шт.

15

996583N0

SUPPORT

L.H.

1шт.

16

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

1шт.

17

996581N0

ANGLE

holding, 8 x 195 x 281

1шт.

18

07753107

SCREW

flat, round head, M12 x 30, DIN6038.8

2шт.

19

991138N0

DISC

WASHER, D=65 x 8

1шт.

20

236510N0

SCREW

flat, round head, M10 x 20 x 12, DIN603 8.8

34шт.

21

213921N0

RING

9RB, 100 x 122 x 5.5

1шт.

22

233574N0

SCREW

BOLT hex, M12 x 25, MK DIN933 8.8

36шт.

23

239395N1

WASHER

B12

36шт.

24

06650021

WASHER

A10

42шт.

25

237947N0

NUT

lock, 10

40шт.

26

502511N0

SCREW

flat, round head, M10 x 25

12шт.

27

992404N1

DISC

knife, D1110 x 4

1шт.

28

996122N1

SCRAPER

UNTERE MESSER

2шт.

29

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

30

234364N0

WASHER

11 x 26 x 4

4шт.

31

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

12шт.

32

992488N1

LARGE PLATE

PLATE, LARGE RAKER, 4 x 50 x 65

3шт.

33

996451N0

COVER

1шт.

34

992410N1

DISC

intake, D1250 x 5

1шт.

35

06577028

SPECIAL WASHER

M8

12шт.

36

238132N0

LOCK NUT

8/8-A3C

6шт.

37

996842N0

DISC

intake

1шт.

38

992848N1

RING

L.H.

2шт.

39

991982N1

SCRAPER

3 x 50 x 92

5шт.

40

992807N1

LARGE PLATE

PLATE, LARGE cover, 3 x 50 x 81

5шт.

41

996310N0

KNIFE

L.H.

5шт.

42

996309N1

KNIFE

L.H.

5шт.

43

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

43

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

44

990926N0

SCRAPER

finger, 6 x 50 x 106

1шт.

45

003780507

SCREW

flat, round head, M8 x 16, DIN6038.8

10шт.
