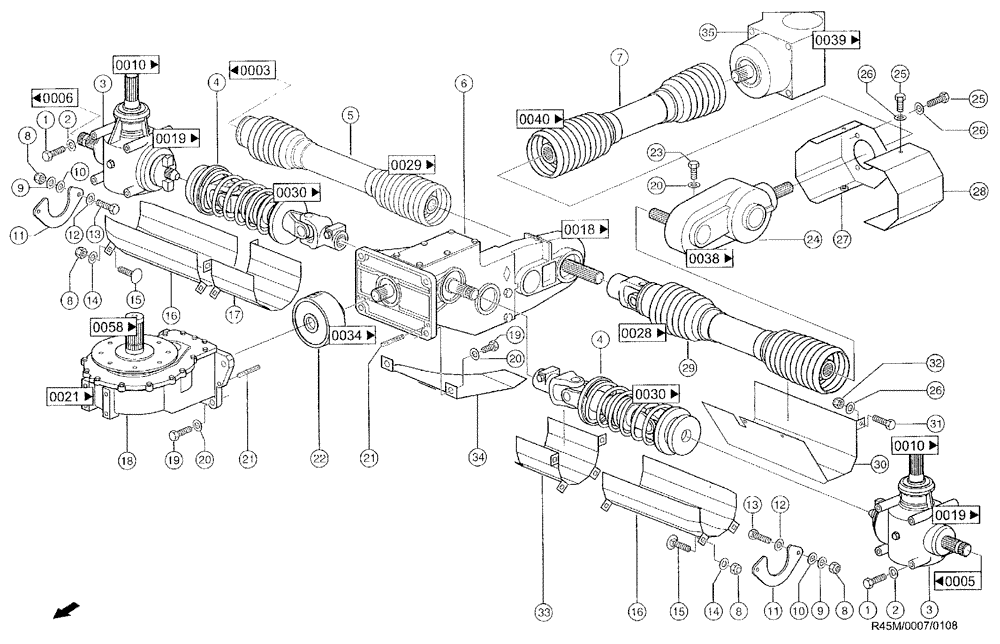

Запчасти Case IH RU450 (0007) - DRIVE, MIDDLE (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
239049N0
SCREW
BOLT hex, M12 x 30 MK/8.8-A3C ISO4017
8шт.
2
06650038
WASHER
A12
16шт.
3
991020N1
TRANSMISSION
GEARBOX conveyor, I=1.818:1
2шт.
4
991124N3
COUPLING
SHAFT universal drive
2шт.
5
990761N1
COUPLING
SHAFT universal drive
1шт.
6
991028N0
TRANSMISSION
GEARBOX main, I=1:1.124/1.36
1шт.
7
991944N0
COUPLING
SHAFT drive universal, W2400-SD25
1шт.
8
237947N0
NUT
lock, 10
16шт.
9
234284N0
WASHER
13 x 30.0 x 2
4шт.
10
234227N0
WASHER
13 x 30.5 x 1
4шт.
11
990790N0
SHEET
PLATE for, 105 x 197 x 6
2шт.
12
06650021
WASHER
A10
4шт.
13
614-10035
BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd
4шт.
14
06650013
WASHER
B10
12шт.
15
711-10030
CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 30mm, Cl 8.8
flat, round head, M10 x 30 DIN603 8.8
12шт.
16
991189N1
FENDER ASSY.
GUARD clutch, 2 x 323 x 391
2шт.
17
991274N1
PROTECTION PLATE
GUARD, R.H., lower, 2 x 189 x 323
1шт.
18
991578N0
TRANSMISSION
DRIVE rotor, L.H.
1шт.
19
238952N0
CAPSCREW
BOLT hex, M16 x 45MK DIN933 8.8
16шт.
20
239391N0
WASHER
WASHER, A16
28шт.
21
233892N0
DOWEL
PIN roll, 12 x 45A DIN8752
8шт.
22
991128N1
COUPLING
CLUTCH out-cut, M=780NM + - 8%
2шт.
23
614-16030
BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd
ISO 4017
4шт.
24
991934N0
TRANSMISSION
GEARBOX
1шт.
25
614-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
8шт.
26
06577028
SPECIAL WASHER
M8
8шт.
27
992322N0
PROTECTION PLATE
GUARD plate, complete, outer
1шт.
28
992325N0
PROTECTION PLATE
GUARD plate, complete, inner
1шт.
29
991923N1
COUPLING
SHAFT drive universal, W2300-SD15Z
1шт.
30
991994N0
PROTECTION PLATE
SHAFT protection, 2 x 360 x 449
1шт.
31
614-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
1шт.
32
238132N0
LOCK NUT
8/8-A3C
1шт.
33
991273N1
PROTECTION PLATE
GUARD, L.H., lower, 2 x 147 x 323
1шт.
34
992172N0
WEAR PAD
SHOE skid
1шт.
35
992321N0
TRANSMISSION
GEAR angular
1шт.
Выбрано товаров: 35
