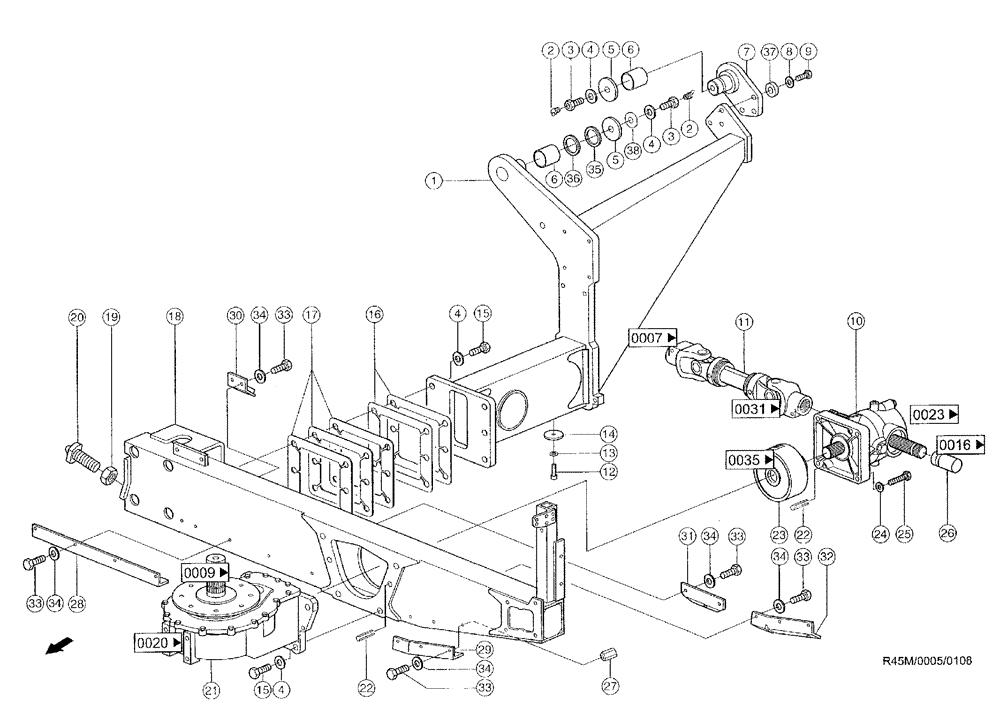

Запчасти Case IH RU450 (0005) - SUPPORTING ARM LH, DRIVE, LEFT (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
992245N1
SUPPORT ASSY.
arm, L.H.
1шт.
2
236944N0
NIPPLE, LUBE
NIPPLE grease
4шт.
3
991140N0
JACK SCREW
lubricating
2шт.
4
239391N0
WASHER
WASHER, A16
12шт.
5
991775N0
THRUST RING
WASHER, 17 x 61 x 6
4шт.
6
907091N0
BUSHING
SLEEVE, 40 x 44 x 40
2шт.
7
991086N1
HOLDER
PLATE retaining
1шт.
8
06650038
WASHER
A12
3шт.
9
215423N0
CAPSCREW
BOLT hex, M12 x 45 MK DIN933 8.8
3шт.
10
991027N0
TRANSMISSION
GEAR angular, 1=1:1, 53
1шт.
11
991125N1
COUPLING
SHAFT universal drive
1шт.
12
242044N0
SCREW,Cheese Hd, M5 x 16mm
cheese head, M5 x 16 DIN84 4.8
1шт.
13
895-25005
WASHER,M5 x 15 x 1.6
DIN9021 140HV
1шт.
14
211289N0
REFLECTOR
yellow, D=63
1шт.
15
238952N0
CAPSCREW
BOLT hex, M16 x 45 MK DIN933 8.8
10шт.
16
991809N1
SHIM
PLATE spacer, 1 x 180 x 216
2шт.
17
991810N1
SHIM
PLATE spacer, 2 x 180 x 216
3шт.
18
992249N0
SUPPORT ASSY.
tube, L.H.
1шт.
19
238942N1
NUT
hex, M22 x 1.5 ISO8673 10
1шт.
20
991141N0
SMALL PIN
SCREW centering, RD42 x 115
1шт.
21
991577N0
TRANSMISSION
DRIVE rotor
1шт.
22
233892N0
DOWEL
PIN roll, 12 x 45A DIN8752
4шт.
23
991129N1
COUPLING
CLUTCH cut out, M=780NM + - 8%
1шт.
24
06650038
WASHER
A12
4шт.
25
215455N0
CAPSCREW
BOLT hex, M12 x 60 MK/8.8-A3C DIN931
4шт.
26
913631N0
PROTECTOR
GUARD shaft, Dl=34.5 x 75
1шт.
27
215913N0
NUT
hex rivet M8 KI-L 3-5.5
14шт.
28
992151N0
WEAR PLATE
angle, 4 x 92 x 500
1шт.
29
992152N0
WEAR PLATE
angle, 4 x 92 x 290
1шт.
30
992183N0
ANGLE
holding, inner
1шт.
31
992185N1
ANGLE
holding, L.H., middle
1шт.
32
992189N1
ANGLE
holding, L.H.
1шт.
33
614-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
14шт.
34
06577028
SPECIAL WASHER
M8
14шт.
35
233626N1
DISC
SHIM, 40 x 55 x 1
14шт.
36
233627N1
DISC
SHIM, 40 x 55 x 2
1шт.
37
991476N0
SPACER, RING
WASHER, D=30 x 13 x 12
3шт.
38
234232N0
WASHER
WASHER, D=34 x 17 x 1
2шт.
Выбрано товаров: 38
