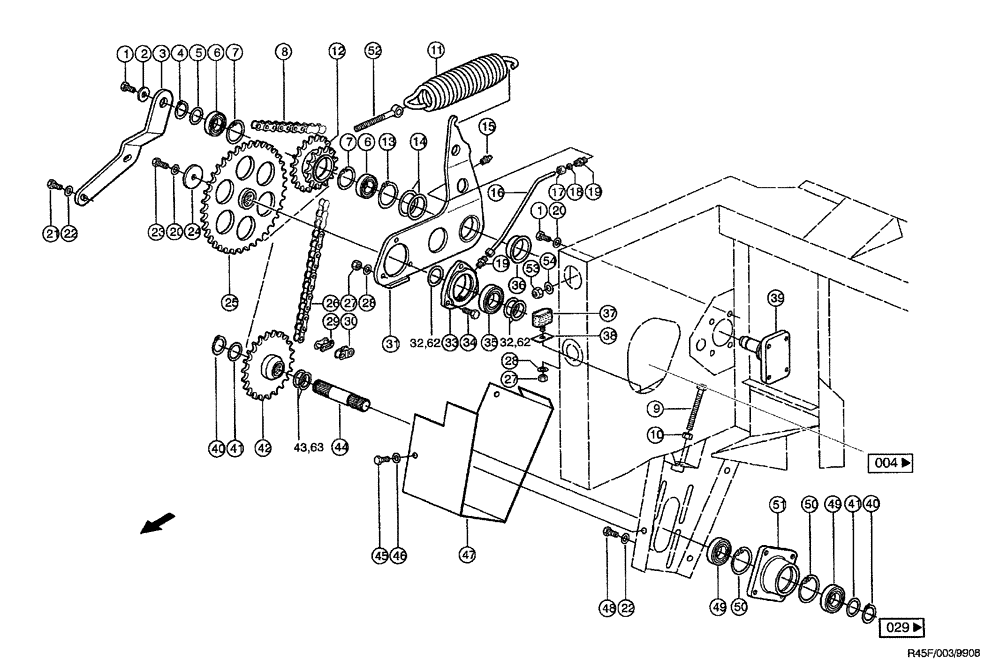

Запчасти Case IH RU450 (0003) - DRIVE, FEEDER AUGER (58) - ATTACHMENTS/HEADERS

1

239049N0

SCREW

BOLT hex M12 x 30 MK/8.8-A3C ISO4017

5шт.

2

211394N0

DISC

WASHER 13 x 35 x 5

1шт.

3

990862N0

BAR

support 10 x 204 x 369

1шт.

4

800-1130

SNAP RING,M30, Ext

1шт.

5

97022172

SHIM

30 x 42 x 1 .ODIN988ST

1шт.

6

235830N0

BEARING, BALL

grooved 6206-2RS

2шт.

7

800-2162

SNAP RING,M62, Int

x 2 DIN472 FST

2шт.

8

211484N0

CHAIN (AG)

roller 25,4 T48E

1шт.

9

614-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 8.8, Full Thd

ISO4017

3шт.

10

825-1412

NUT,M12, Cl 8

Hex

3шт.

11

984419N1

SPRING

tension

1шт.

12

991714N1

SPROCKET ASSY.

1шт.

13

800-1155

RETAINER,55mm ID

RING snap55 x 2 DIN471 FST

1шт.

14

239370N0

DISC

SHIM 55 x 68 x 1/ST2K DIN988

2шт.

15

3640754

NIPPEL grease CM8 x 1 DIN71412

1шт.

16

941838N0

LINE

PIPE lubricating 5 x 1 x 6000

1шт.

17

98-041302

TUBE NUT

connection

2шт.

18

408614N0

OLIVE

2шт.

19

239156N0

FITTING

CONNECTOR male

2шт.

20

239389N0

WASHER

A12

7шт.

21

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

22

239395N1

WASHER

B12

6шт.

23

239160N0

SCREW

BOLT hex M12 x 35 MK/8.8-A3C ISO4017

1шт.

24

233031N0

DISC

WASHER 13 x 62 x 6

1шт.

25

991038N0

SPROCKET ASSY.

1шт.

27

825-1410

NUT,M10, Cl 8

4шт.

28

239388N0

DISC

WASHER A10

4шт.

29

920300N4

OFFSET LINK

25.4 x 12.7 GERADE

1шт.

30

920300N5

LINK, CONNECTING

offset 25.4 x 1 2.7 x 8.28 GEKR.

1шт.

31

996304N0

UPPER LINK

ARM rocker r

1шт.

32

233626N1

DISC

SHIM 40 x 55 x 1

1шт.

33

913088N0

HOUSING, BEARING

1шт.

34

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

3шт.

35

213648N0

BEARING, BALL

lock collar bear. GRAE 40 NPPB

1шт.

36

008593N0

BUSHING

SLEEVE 54.9 x 59.9 x 20 L=340

1шт.

37

991075N0

BUMPER

STOP rubber M1060 x 30 x 30

1шт.

38

991106N0

PLATE

3 x 30 x 50

1шт.

39

912987N0

JOURNAL

bearing

1шт.

40

800-5135

SNAP RING,M35, Ext, Hvy

2шт.

41

234385N0

BACK-UP RING

WASHER thrust 835 x 45 DIN988 440-550HV10

2шт.

42

991710N0

SPROCKET ASSY.

Z=22 1ZOLL

1шт.

43

97022212

SHIM

35 x 45 x 0.5 DIN988 ST

1шт.

44

991701N0

SHAFT

D=35K6 x 186

1шт.

45

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

3шт.

46

239387N0

WASHER

A8

3шт.

47

991563N0

PROTECTION PLATE

PLATE guard 2 x 283 x 757

1шт.

48

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

49

235869N0

BEARING ASSY

grooved 6207-2RS

2шт.

50

800-2172

SNAP RING

72 x 2.5 FST, DIN472, FST

2шт.

51

913989N0

HOUSING, BEARING

1шт.

52

97013112

SCREW

BOLT eye LBM16 x 130DIN4445.6

1шт.

53

238047N0

NUT

lock VM16/8-A3C

1шт.

54

239391N0

WASHER

WASHER A16

1шт.

62

233627N1

DISC

SHIM 40 x 55 x 2

1шт.

63

234431N0

RING ASSY.

SHIM 35 x 45 x 1 DIN988 ST

1шт.
